Home >> Mercury >> 1999 >> Mountaineer 2WD V8-302 5.0L VIN P SFI >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Camshaft Position Sensor >> Locations

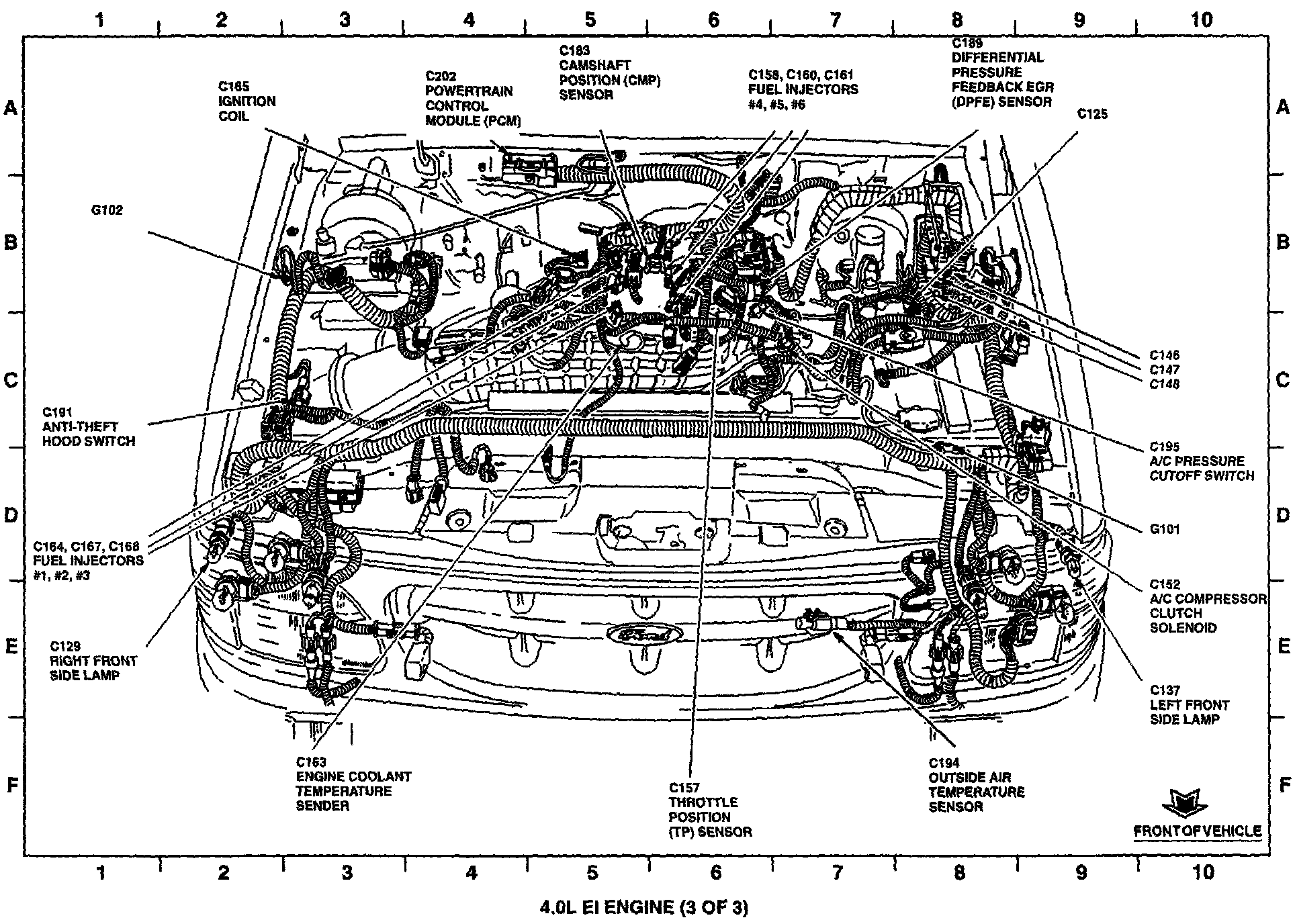

Camshaft Position Sensor: Locations

Camshaft Position Sensor A-5:
