F: Solenoid Mechanical Failure

F1:




F2 - F3:

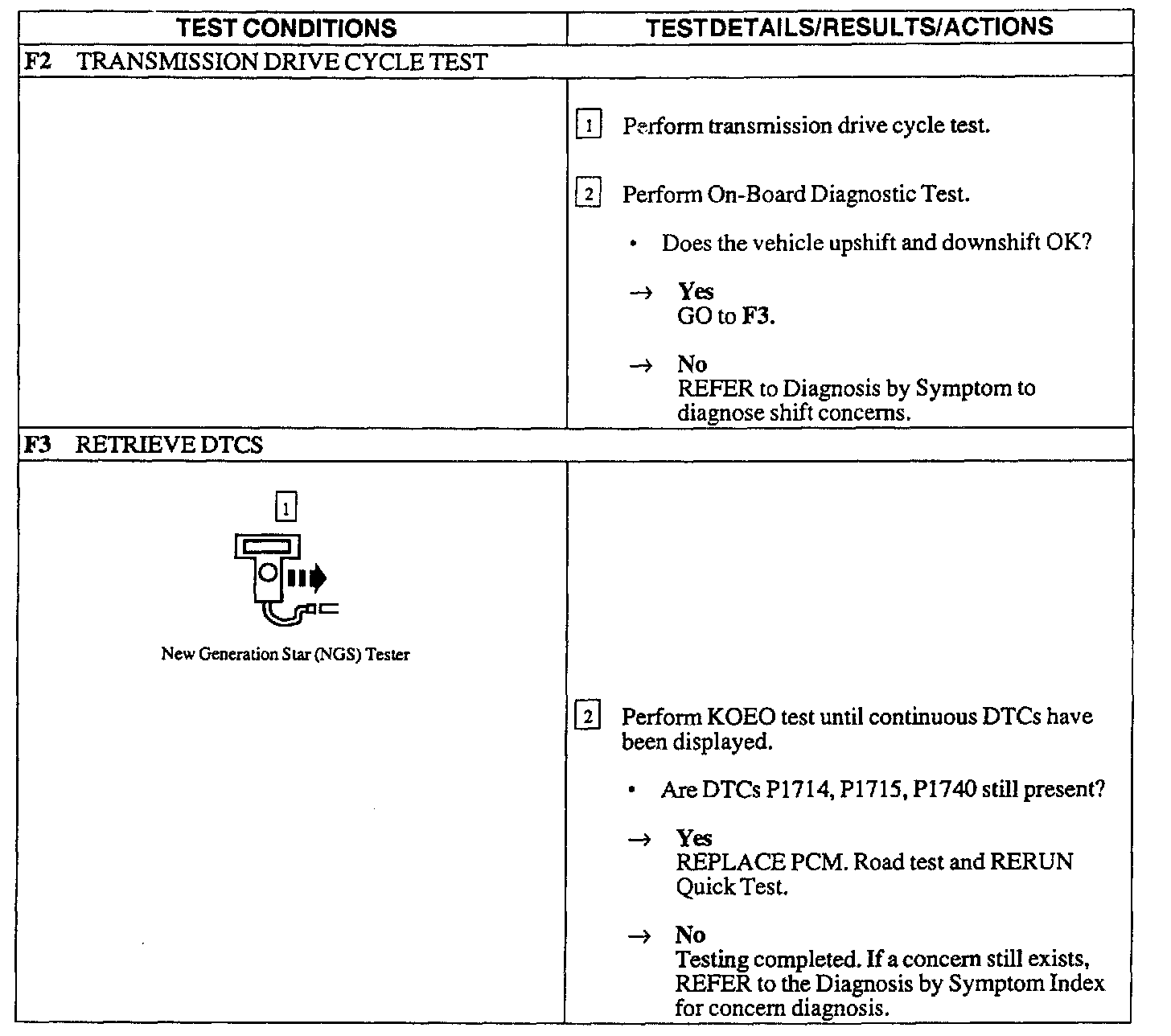

PINPOINT TEST F: SOLENOID MECHANICAL FAILURE

NOTE: Repair all other DTC's before repairing the following DTC's: P1714, P1715, P1740.
