Home >> Mercury >> 2000 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Pinpoint Tests >> Test F: Smartlock Does Not Operate Correctly/Is Inoperative

Test F: Smartlock Does Not Operate Correctly/Is Inoperative

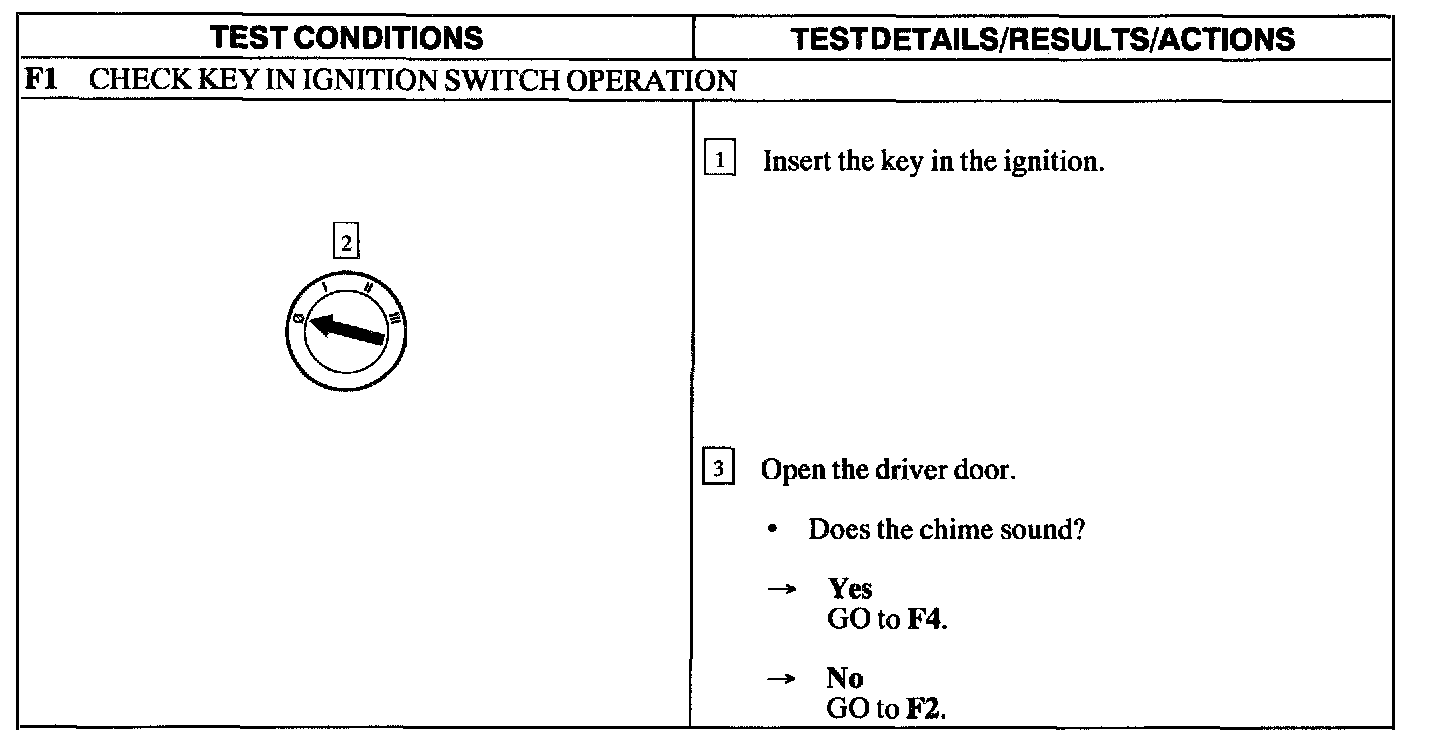

F1:

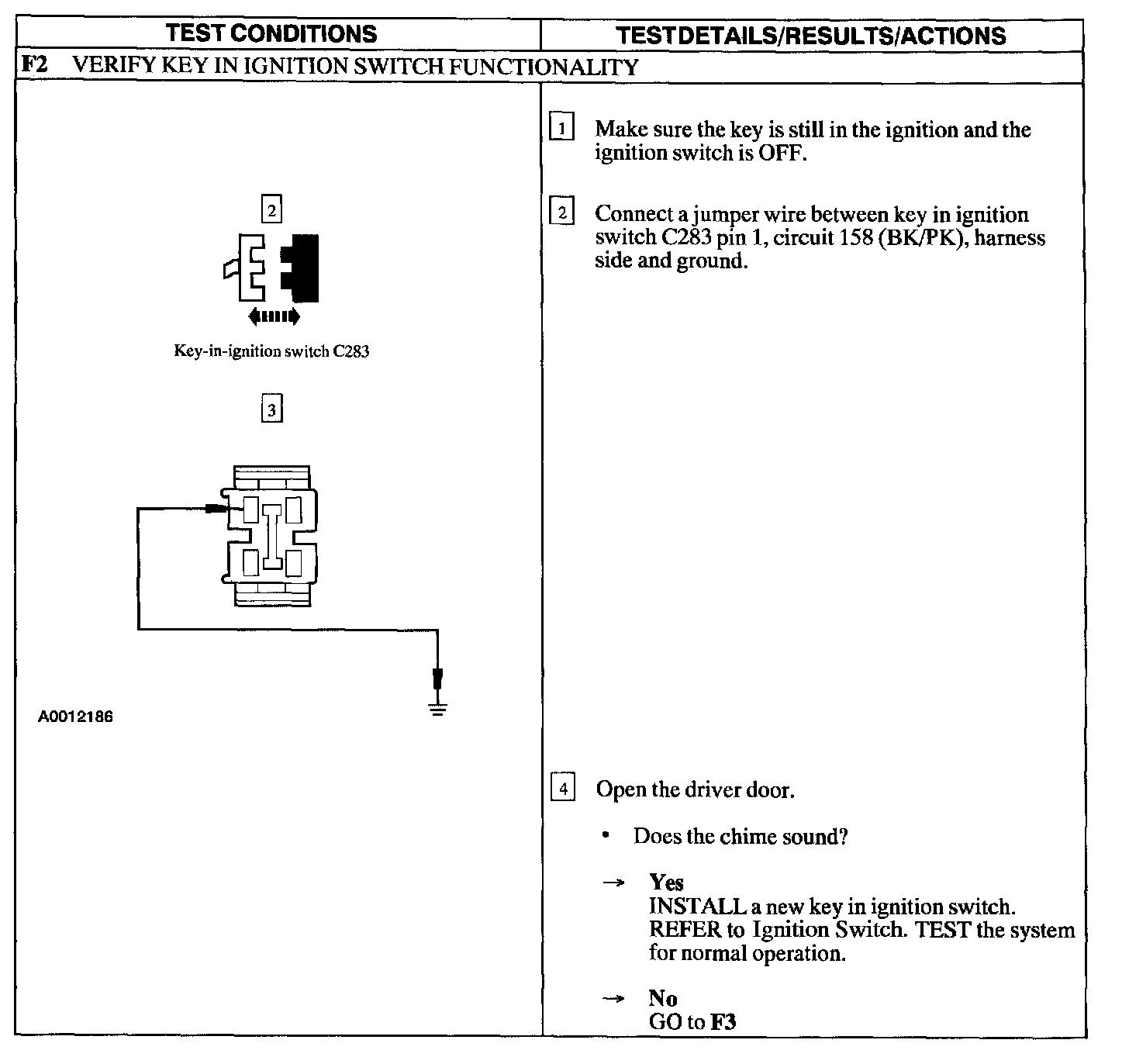

F2:

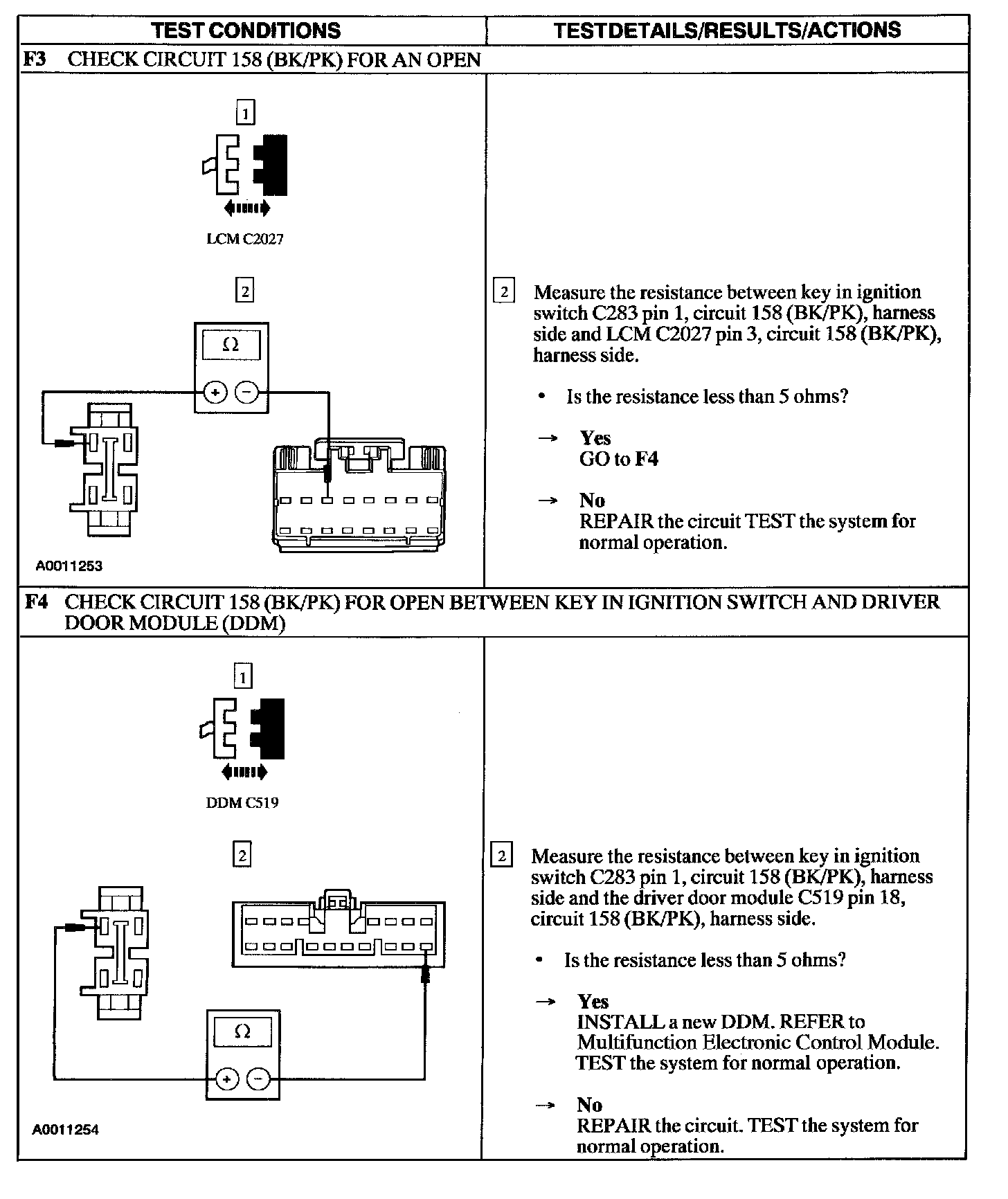

F3 - F4:
