Message Center Assembly

REMOVAL

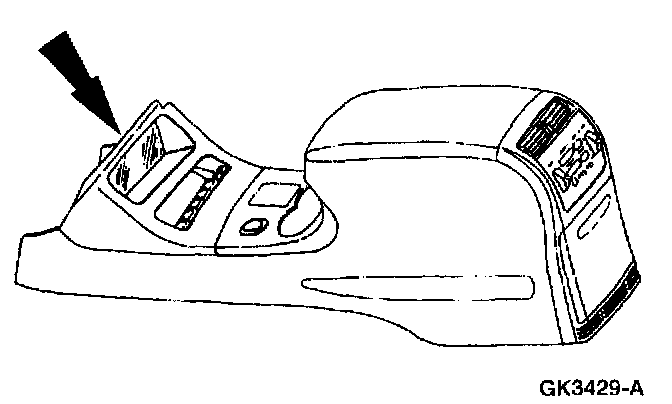

1. Remove the message center console. Grasp the front of the console and lift upward.

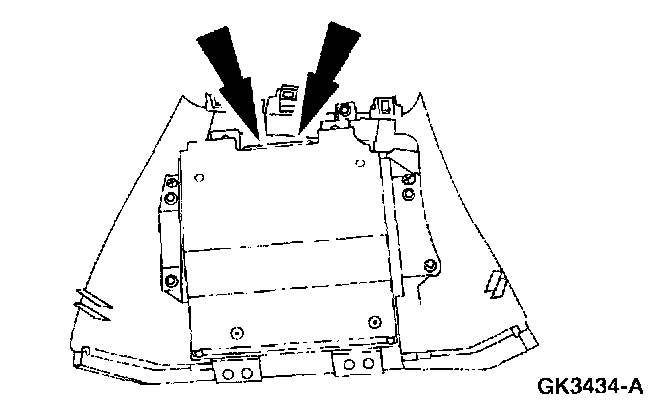

2. Disconnect the electrical connectors from the message center indicator.

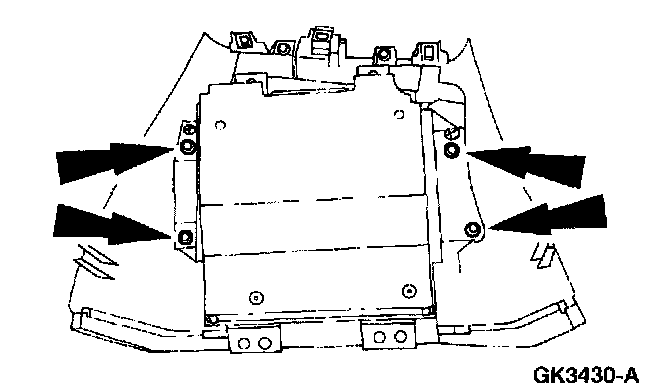

3. Remove the screws retaining the message center indicator.

INSTALLATION
1. To install, reverse the removal procedure.
