Output Shaft Speed Sensor-Rear

Removal

Warning: The electrical power supply to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the rear jack storage area. Failure to do so can result in unexpected inflation or deflation of the air springs which can result in shifting of the vehicle during these operations.

1. Raise and support vehicles.

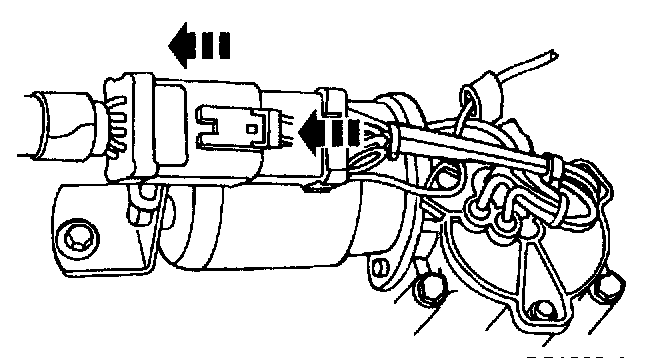

2. Disconnect the electrical connector.

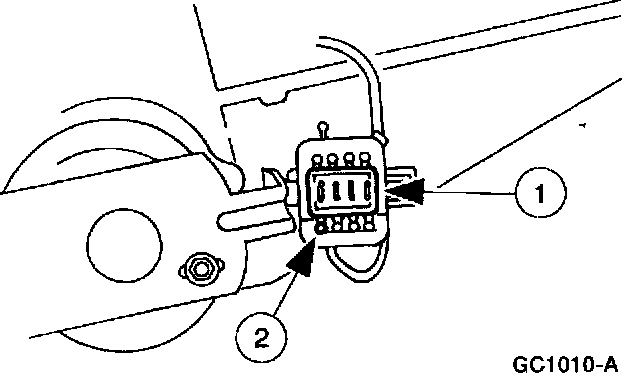

3. Remove the rear output shaft speed sensor wires from the electrical shift motor connector.
1. Remove the connector interlock.
2. Remove the wires.
- Use the proper electrical connector pin remover.

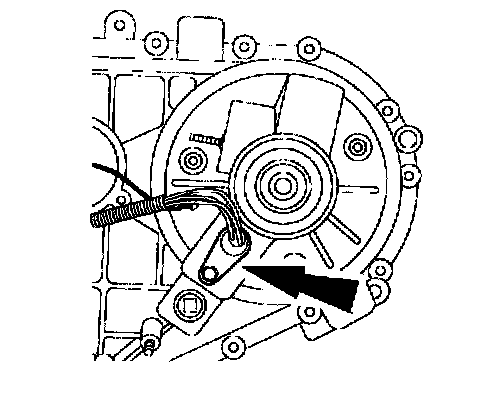

4. Remove the bolt and the sensor.

Installation

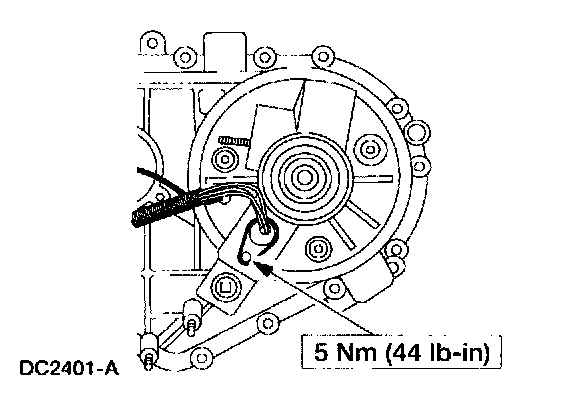

1. Caution: Make sure the sensor seats flat against the boss

To install, reverse the removal procedure
