Auxiliary Climate Control

REMOVAL

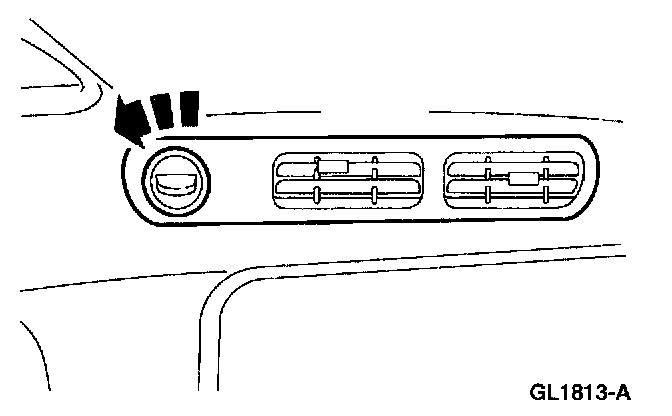

1. Grasp the top edge and carefully remove the auxiliary A/C climate control panel.

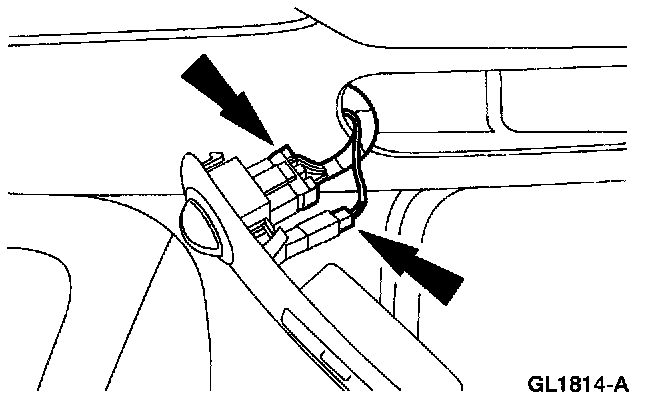

2. Disconnect the auxiliary A/C control panel electrical connectors.

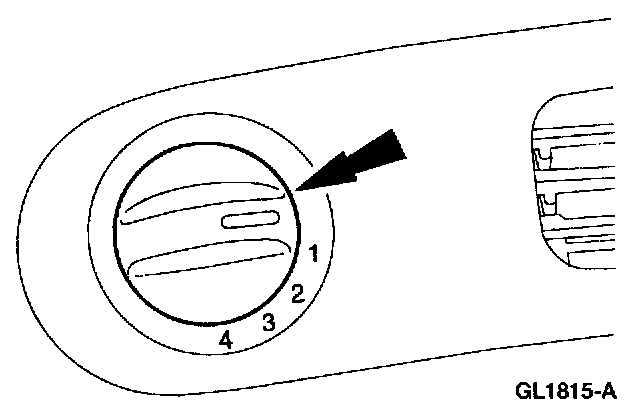

3. Remove the auxiliary A/C climate control panel knob.







4. Remove the auxiliary A/C control switch.
1 Remove the screws.
2 Remove the switch.

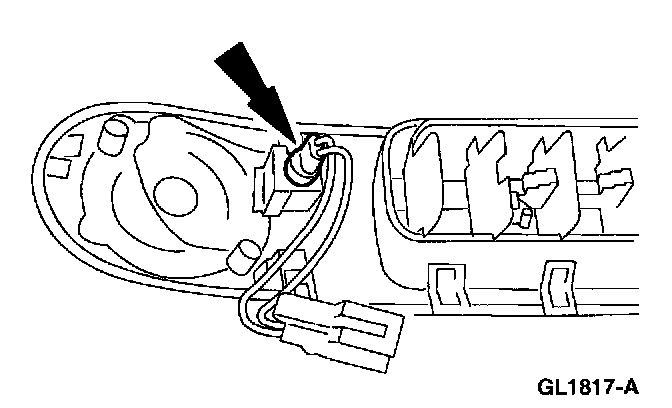

5. Disconnect the auxiliary A/C control panel bulb electrical connector and bulb.
^ Replace the bulb/connector assembly if necessary.

INSTALLATION
1. To install, reverse the removal procedure.
