Control Assembly Bulbs

REMOVAL
1. Remove the electronic automatic temperature control (EATC).

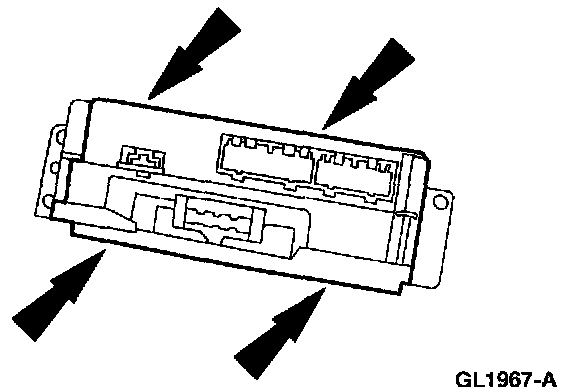

2. Separate the EATC housing.
^ Depress the locking tabs.

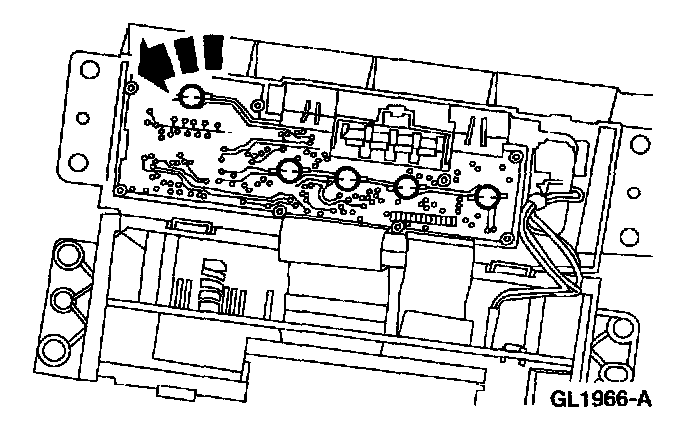

3. Remove the EATC bulbs.
^ Rotate the bulbs counterclockwise and remove.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected an reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16km (10 miles) or more to relearn the strategy.
