Toe Adjustment

1. Check the toe settings; follow the manufacturer's instructions.

2. Note: Do not allow the steering gear bellows to twist when the front wheel spindle tie rod is rotated.

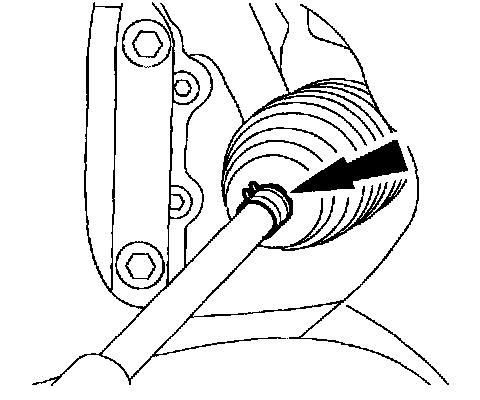

Position the steering gear bellow clamps aside.





3. Loosen the nuts.
^ Clean and lubricate the nut(s) and front wheel spindle tie rod threads.





4. Rotate the front wheel spindle tie rods.





5. Tighten the nuts.





6. Reposition the clamps to their original positions.
7. Recheck the toe settings; follow the manufacturer's instructions.
