Absolute Pressure Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

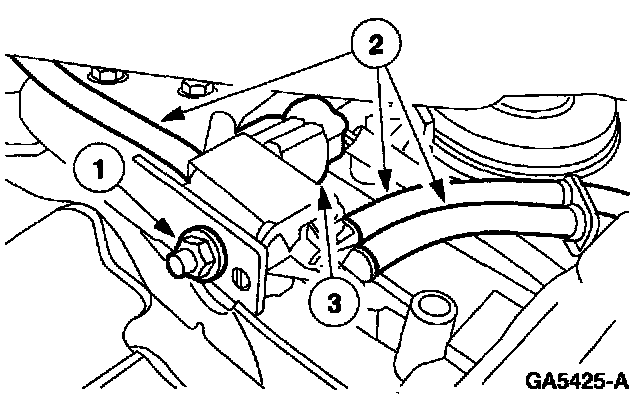

2. Remove the manifold absolute pressure/barometric pressure (MAP/BARO) solenoid.
1 Remove the nut.
2 Disconnect the three vacuum hoses.
3 Disconnect the MAP/BARO solenoid electrical connector.


INSTALLATION
1. To install, reverse the removal procedure.
