Engine Control Module: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the glove box. For additional information, refer to Console.

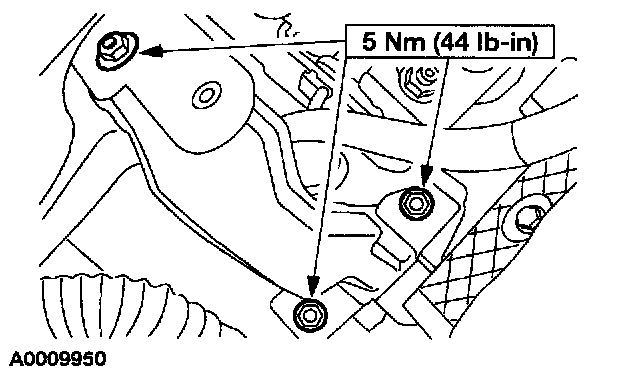

3. Remove the passenger side air bag bracket.
^ Remove the nuts.







4. Remove the Powertrain Control Module (PCM) electrical connector from the PCM.
^ Loosen the bolt.
5. Disconnect the two electrical connectors and relay from the top of the PCM.







6. Remove the PCM.
^ Remove the nuts.


INSTALLATION
1. To install, reverse the removal procedure.
