Marauder V8-4.6L DOHC VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>

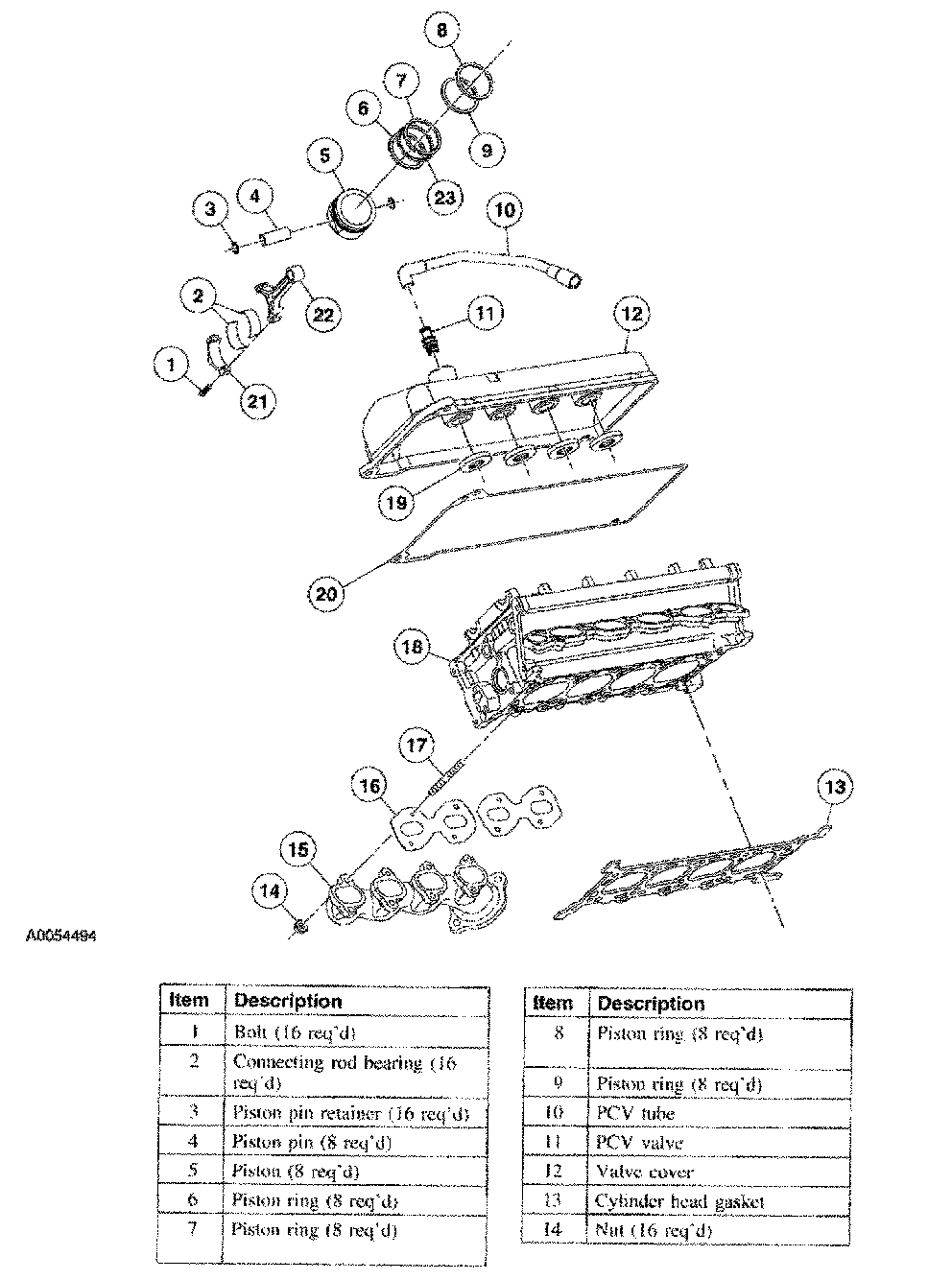

Piston and Connecting Rod Cylinder Head Components
Piston and Connecting Rod Cylinder Head Components
Piston
and
Connecting Rod

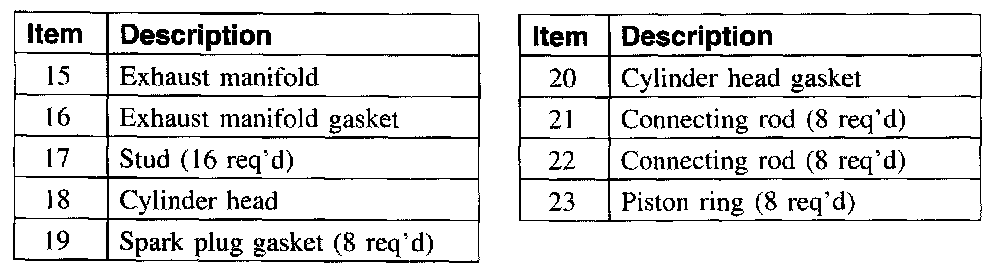

Cylinder Head Components
Part 1 Of 2:
Part 2 Of 2:
