Test L

PINPOINT TEST L: NO INTERNATIONAL STANDARDS ORGANIZATION (ISO) 9141 NETWORK COMMUNICATION

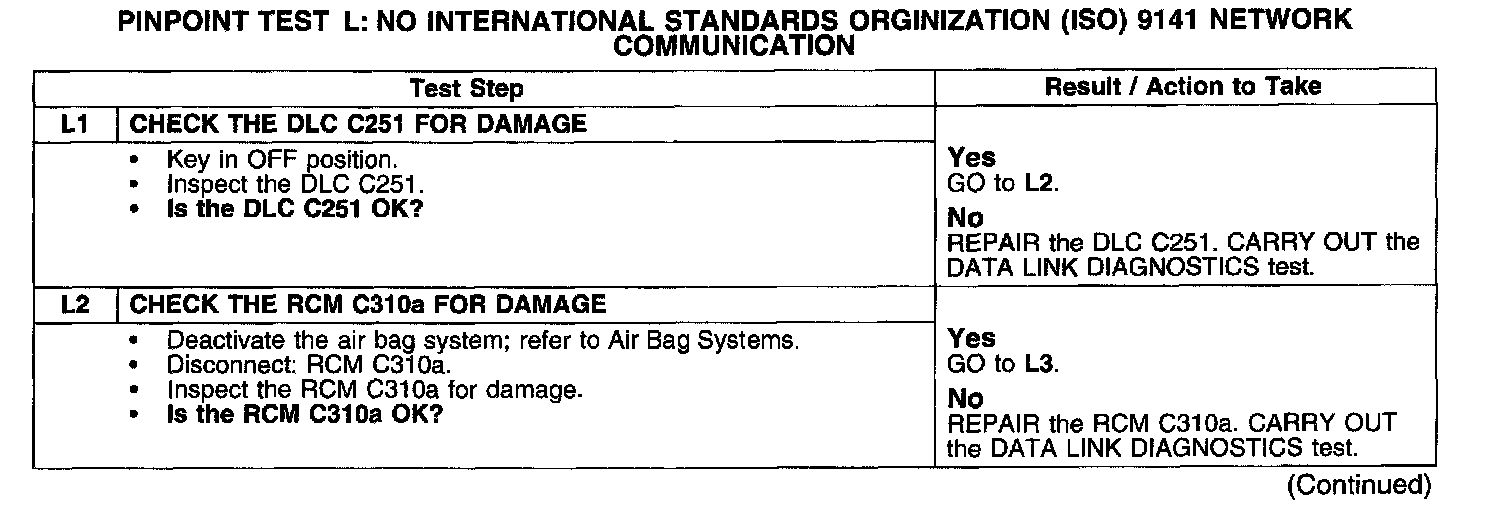

Test L1-L2:

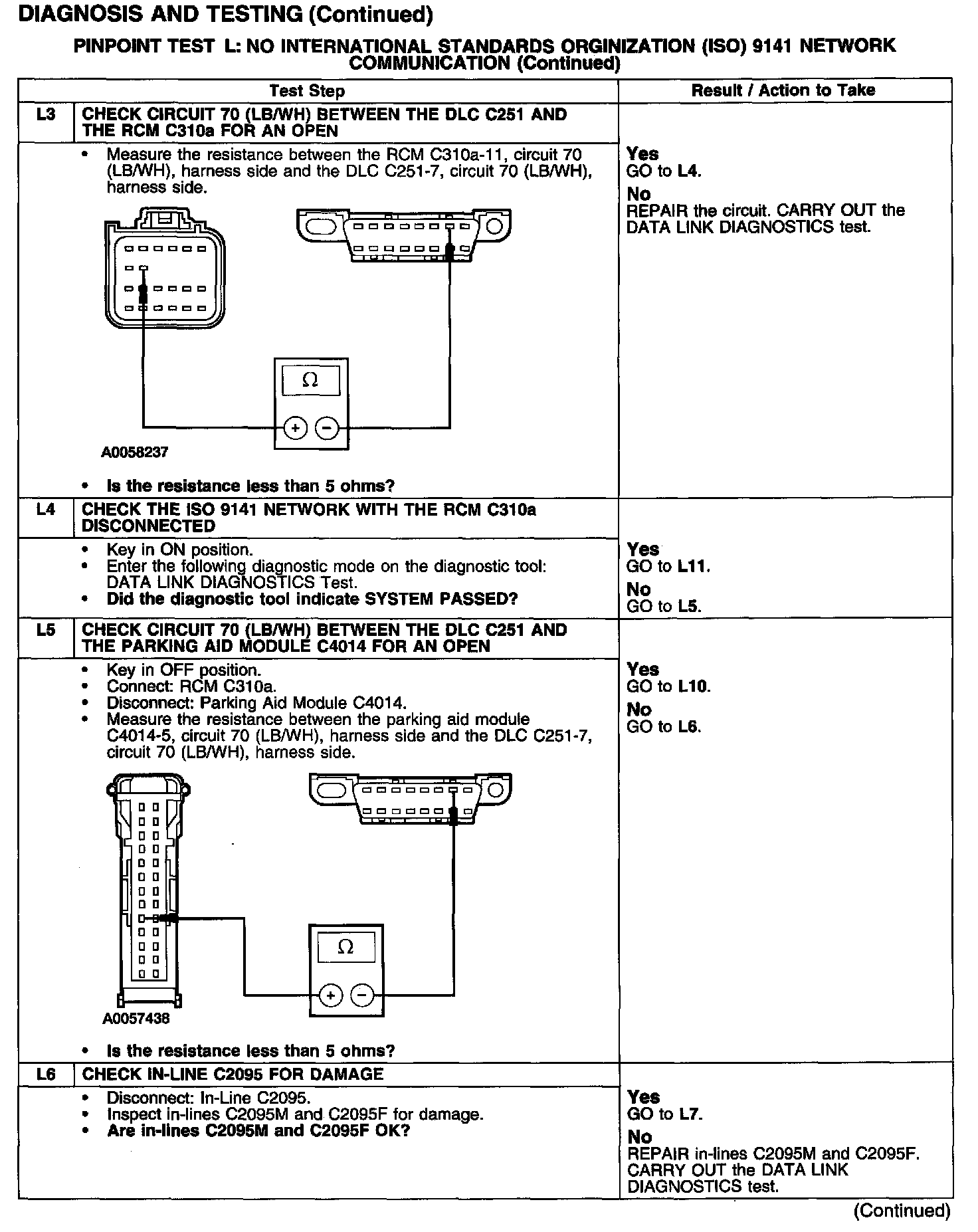

Test L3-L6:

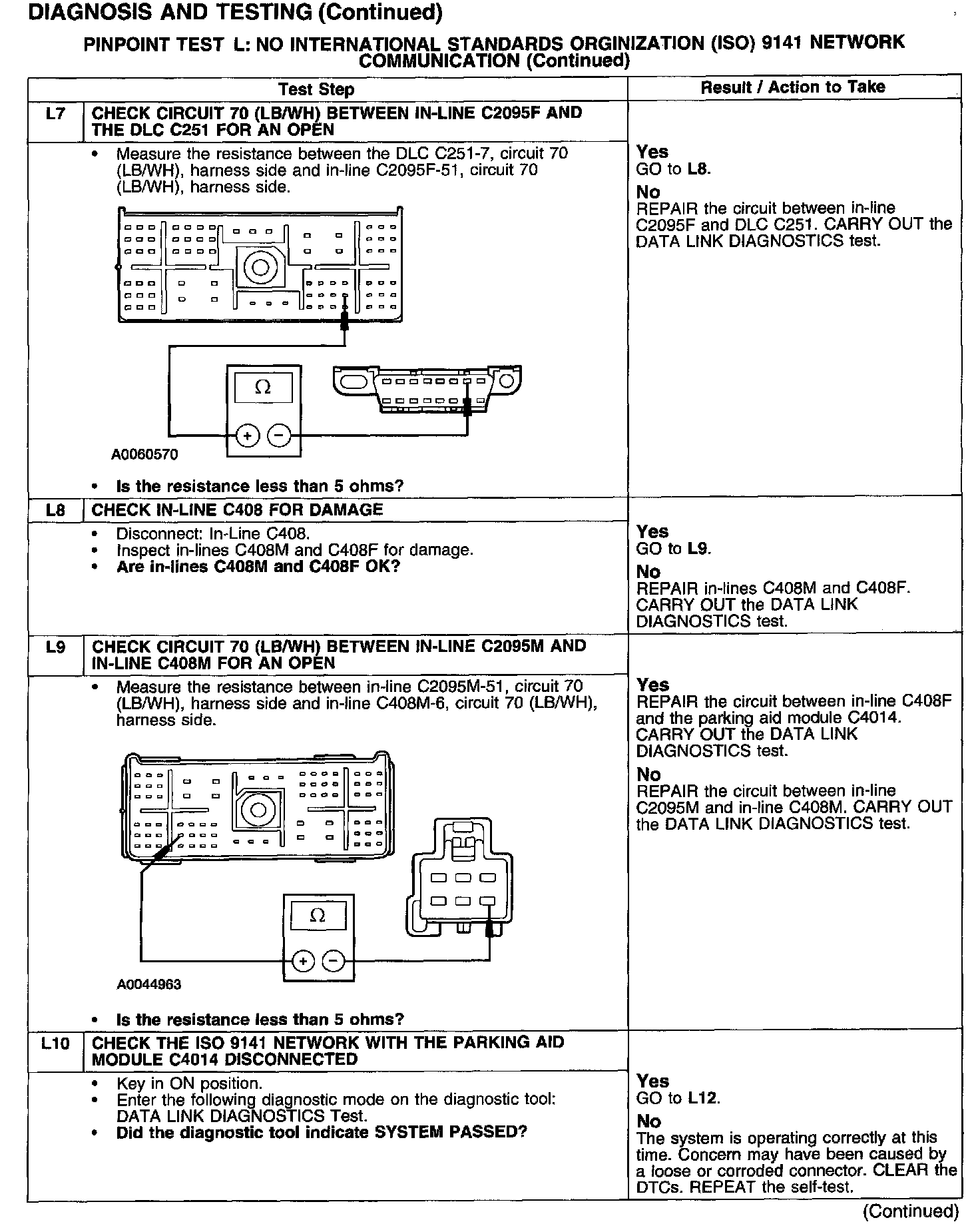

Test L7-L10:

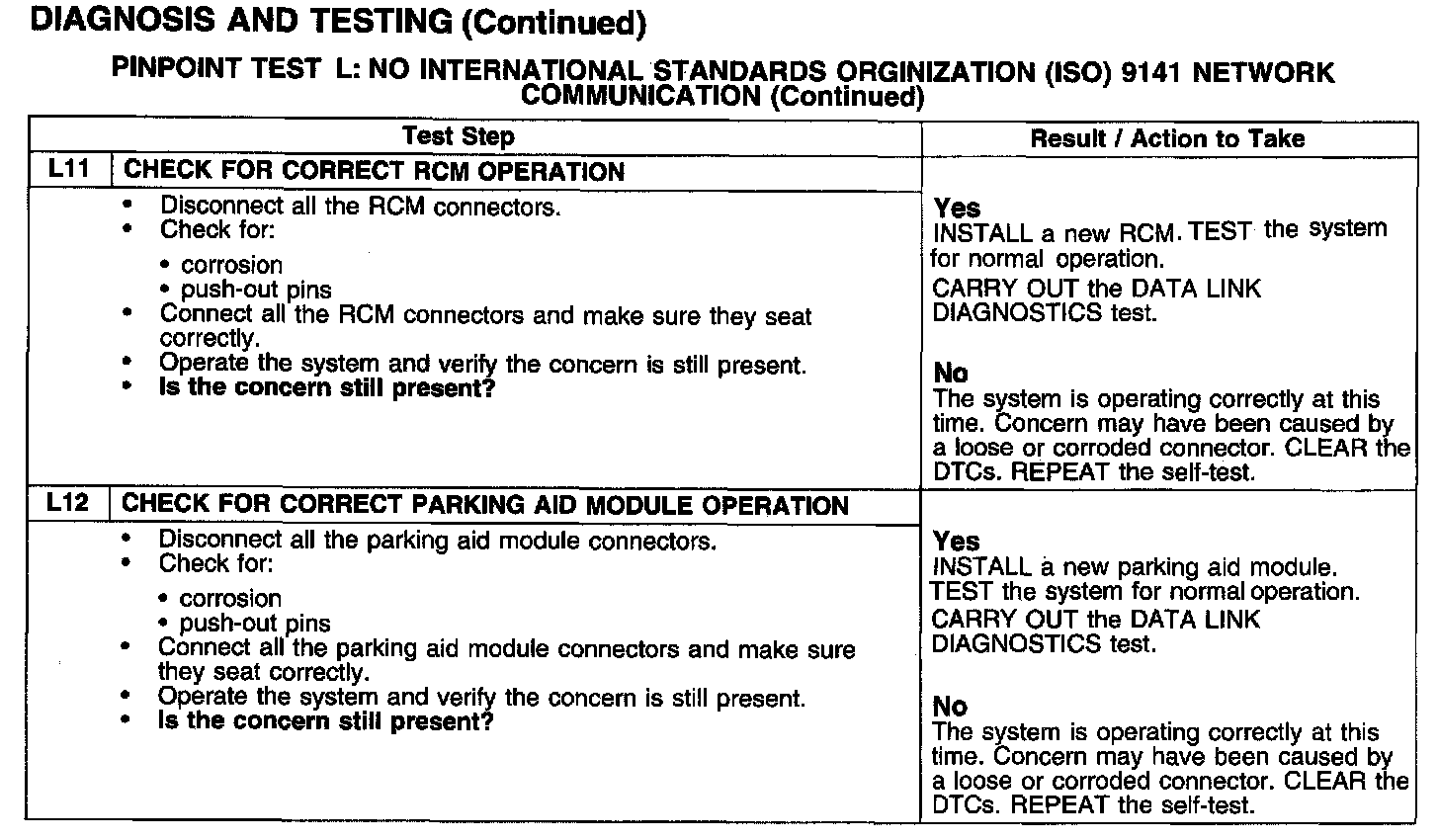

Test L11-L12:

Normal Operation
The reverse parking aid module and the restraint control module (RCM) communicate with the diagnostic tool through the ISO 9141 communications network circuit 70 (LB/WH). If circuit 70 (LB/WH) becomes open or shorted to ground, communications to that module will not be possible. Check circuit 70 (LB/WH) between the parking aid module, RCM and the DLC C251. Total resistance values must not be more than 5 ohms. If the resistance is more than 5 ohms there is an open in circuit 70 (LB/WH), damage to the DLC C251, damage to the parking aid module, RCM, or a problem in one of the in-line connectors C2095 or C408. If, after individual checks of each circuit leading to a module show resistance values less than 5 ohms and no in-line connector issues present, the data link diagnostics test must be run with the module in question disconnected. If the data links diagnostics test passes with the module in question disconnected it is the source of the concern and should be removed and a new module installed.

Possible Causes
- circuit 70 (LB/WH) shorted to ground or open
- in-line C2095
- in-line C408
- DLC C251
- parking aid module
- RCM
