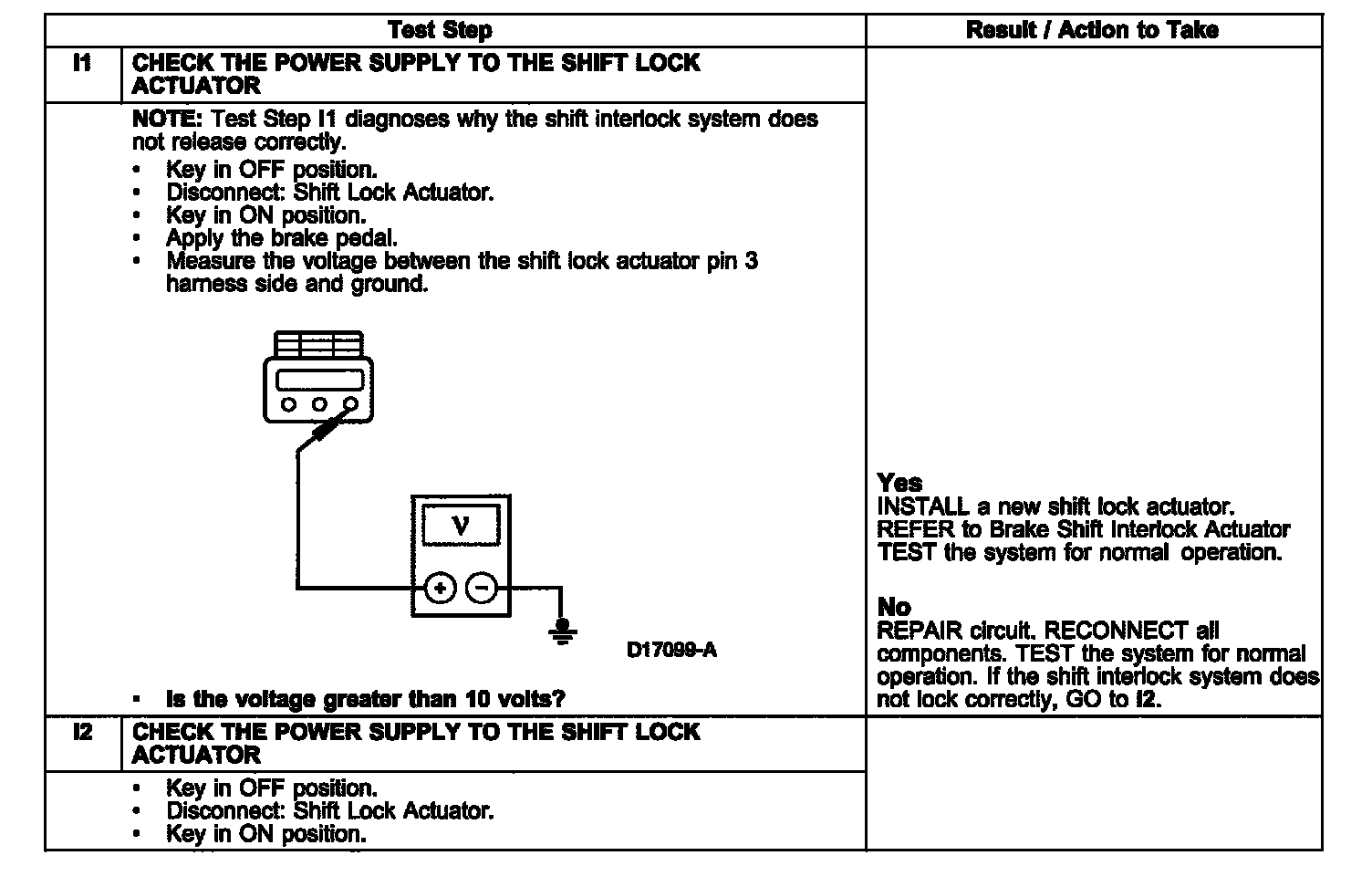

PINPOINT TEST I: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY
Test I1-I2 Continued:
Test I2-I3:
