Vehicle Identification Number

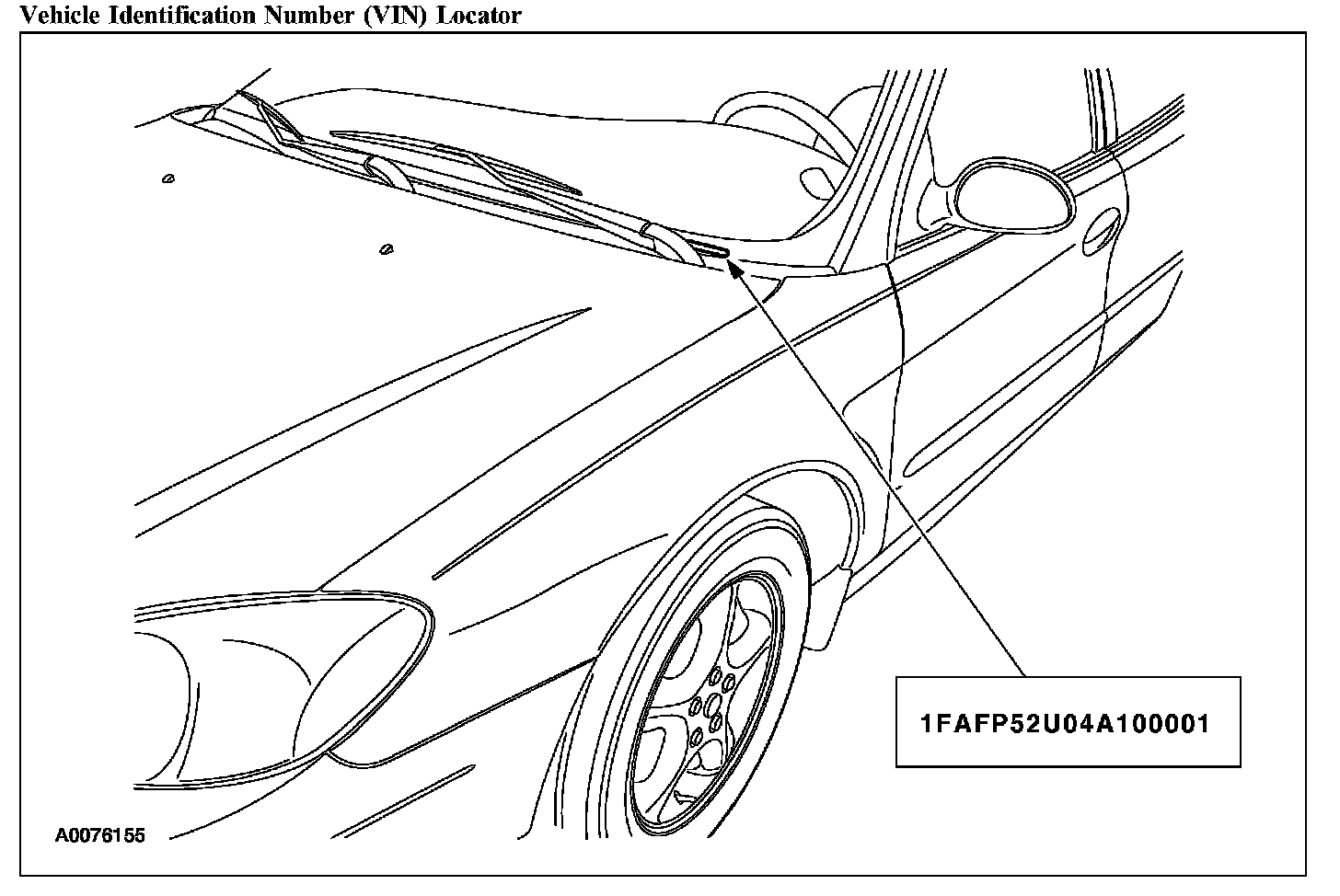

Vehicle Identification Number (VIN) Locator:











IDENTIFICATION CODES
The vehicle identification number (VIN) is a seventeen-digit combination of letters and numbers. The VIN is stamped to a metal tab riveted to the instrument panel top, upper left of the dash. The VIN number is also found on the vehicle certification (VC) label.

Vehicle Identification Number (VIN)

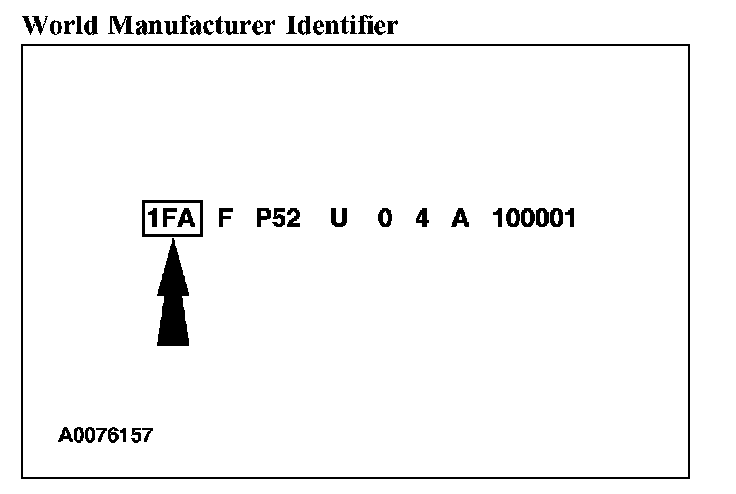

World Manufacturer Identifier:






The first three vehicle identification number (VIN) positions are the world manufacturer code.
- 1FA - Ford Motor Company, USA, passenger car
- 1ME - Mercury, USA, passenger car

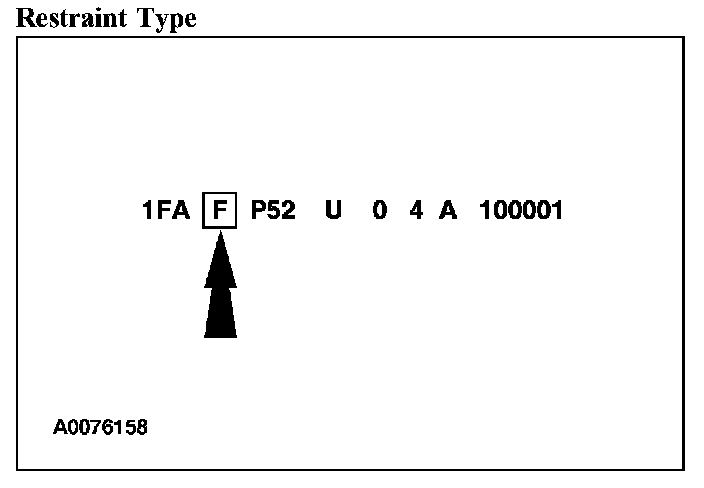

Restraint Type:






The fourth VIN position is the vehicle restraint type code.
- F - Active safety belts - all positions, driver and front passenger air bags
- H - Active safety belts - all positions, driver and front passenger air bags with driver and front passenger side impact air bags


Vehicle Line, Series And Body Type:






Positions 5 through 7 indicate vehicle line, series and body type.
- M50 - Sable GS, four-door
- M53 - Sable LS, four-door
- M55 - Sable LS-Premium, four-door
- M58 - Sable GS, station wagon
- M59 - Sable LS-Premium, station wagon
- P52 - Taurus LX, four-door
- P53 - Taurus SE, four-door
- P55 - Taurus Special Value Group, four-door
- P56 - Taurus SE-Comfort Group, four-door
- P58 - Taurus SE, station wagon
- P59 - Taurus SE-Comfort, station wagon

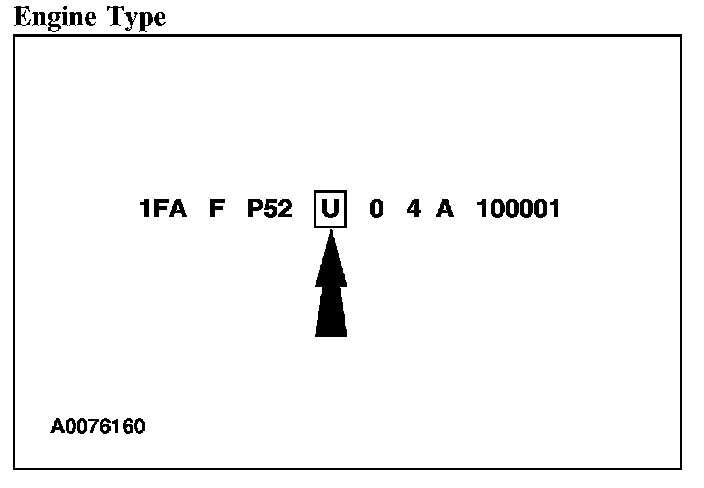

Engine Type:






The eighth VIN position is the engine displacement and number of cylinders.
- 2 - 3.0L Vulcan, OHV, EFI, six-cylinder, flex fuel
- S - 3.0L, DOHC, EFI, six-cylinder
- U - 3.0L Vulcan, OHV, EFI, six-cylinder

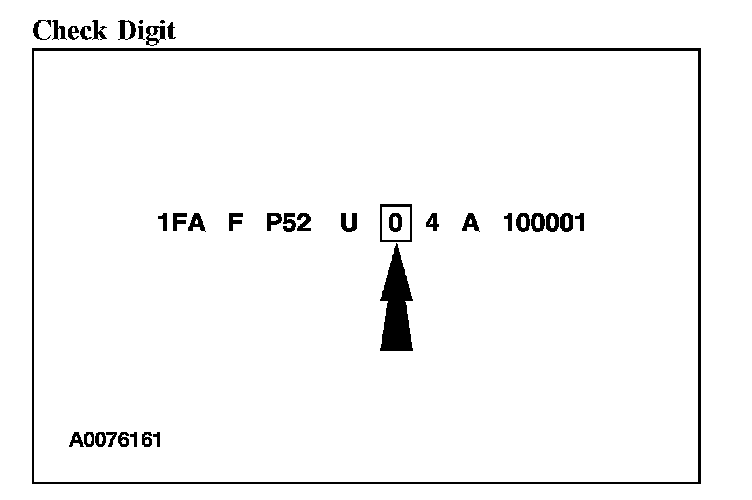

Check Digit:






The ninth VIN position is a government-assigned, computer-generated check digit.

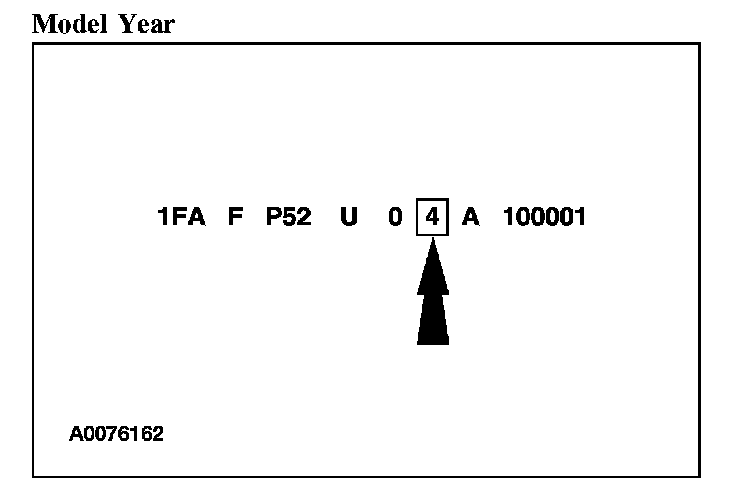

Model Year:






The tenth VIN position is the model year code.
- 4 - 2004

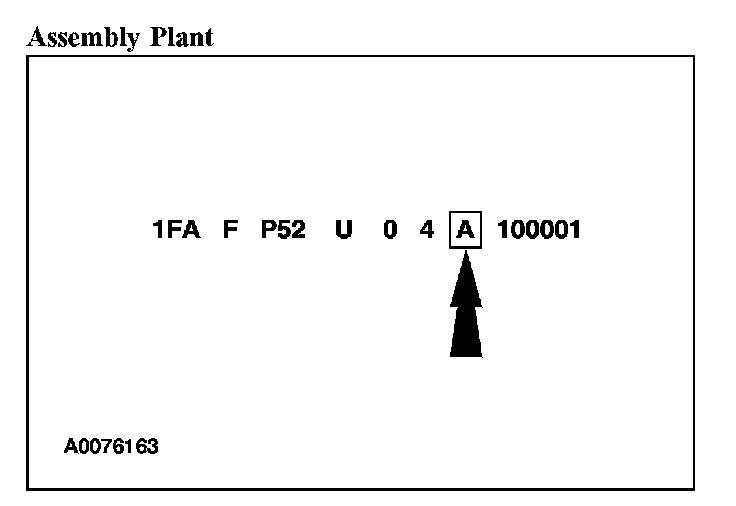

Assembly Plant:






The eleventh VIN position is the assembly plant code.
- A - Atlanta (Hapeville, Georgia)
- G - Chicago (Chicago, Illinois)


Production Sequence Number:






The last six VIN positions are an alphanumeric for the vehicle build sequence. This vehicle serial and warranty number.
- 100001-599999 - Taurus
- 600001-999999 - Sable
