Radiator Cooling Fan: Service and Repair

Cooling Fan
Removal and Installation

NOTE: The RH and LH cooling fans can be serviced individually. The LH cooling fan is shown, the RH is similar.





1. Remove the distribution box and position aside.

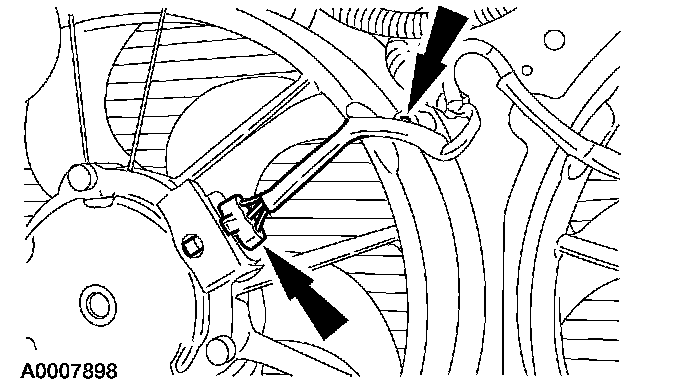

2. Disconnect the fan electrical connector and detach the retainer.





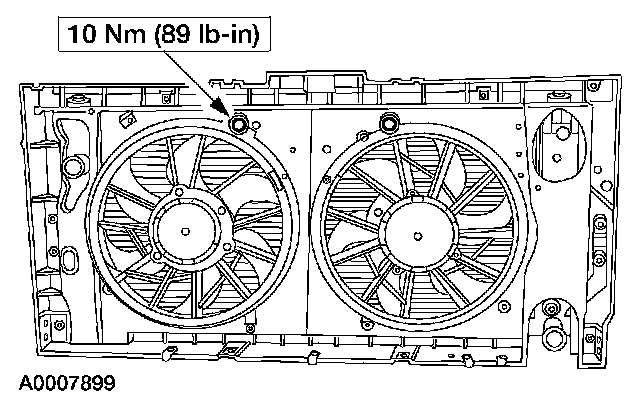

3. Remove the bolt and the electrical cooling fan.
4. To install, reverse the removal procedure.
