Initial Inspection and Diagnostic Overview

Steering Column Switches

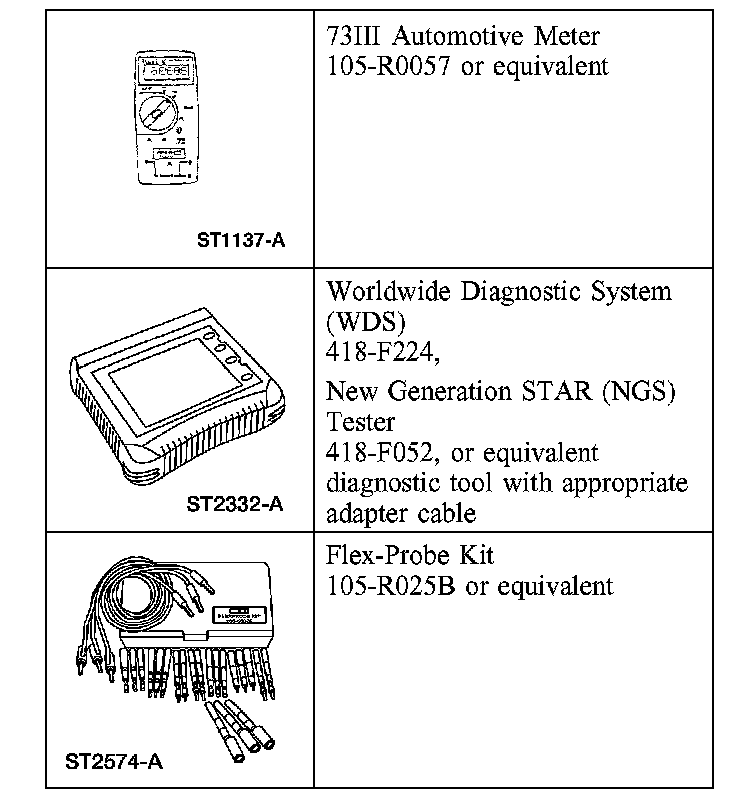

Special Tool(s)

Inspection and Verification
1. Verify the customer concern.





2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the cause is not visually evident, connect the diagnostic tool to the data link connector and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
- check that the program card is correctly installed.
- check the connections to the vehicle.
- check the ignition switch position.
5. If the diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool manual.
6. Carry out the data link diagnostics test. If the diagnostic tool responds with:
- CAN circuit fault; all electronic control units no response/not equipped, refer to Module Communications Network.
- No response/not equipped for SJB, refer to Module Communications Network.
- System passed, retrieve and record the continuous Diagnostic Trouble Codes (DTCs), erase the continuous DTCs and carry out the self test diagnostics for the SJB.
7. If the DTCs retrieved are related to the concern, go to the Smart Junction Box (SJB) Diagnostic Trouble Code (DTC) Index to continue diagnostics. Diagnostic Trouble Code Tests and Associated Procedures
8. If no DTCs related to the concern are retrieved, GO to Symptom Chart. Symptom Related Diagnostic Procedures
