Torque Converter End Play Check

Torque Converter End Play Check





Special Tool(s)

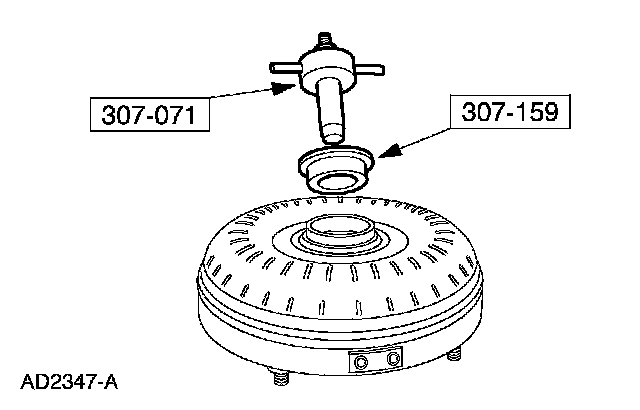

1. Install the special tools.

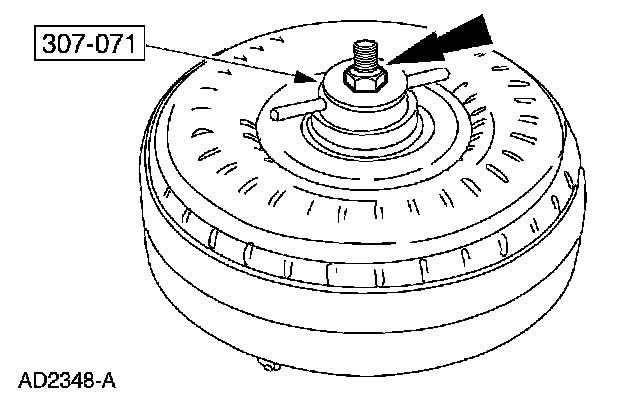

2. Tighten the nut.

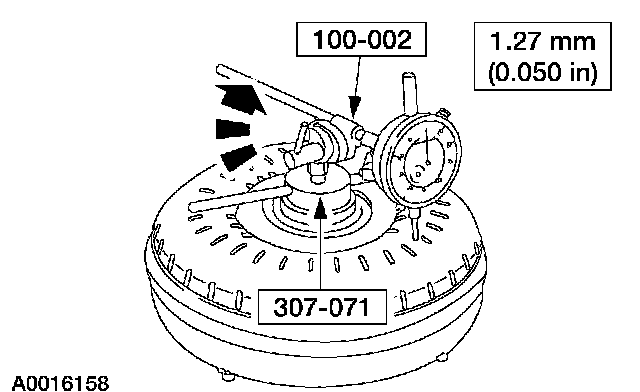

3. Install the special tools.





4. NOTE: If the indicator reading is above specification, replace the torque converter.

With the stylus contacting the converter shell and the dial indicator set to zero lift up on the handles of the checking tool.
