Home >> Mercury >> 2005 >> Monterey V6-4.2L VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

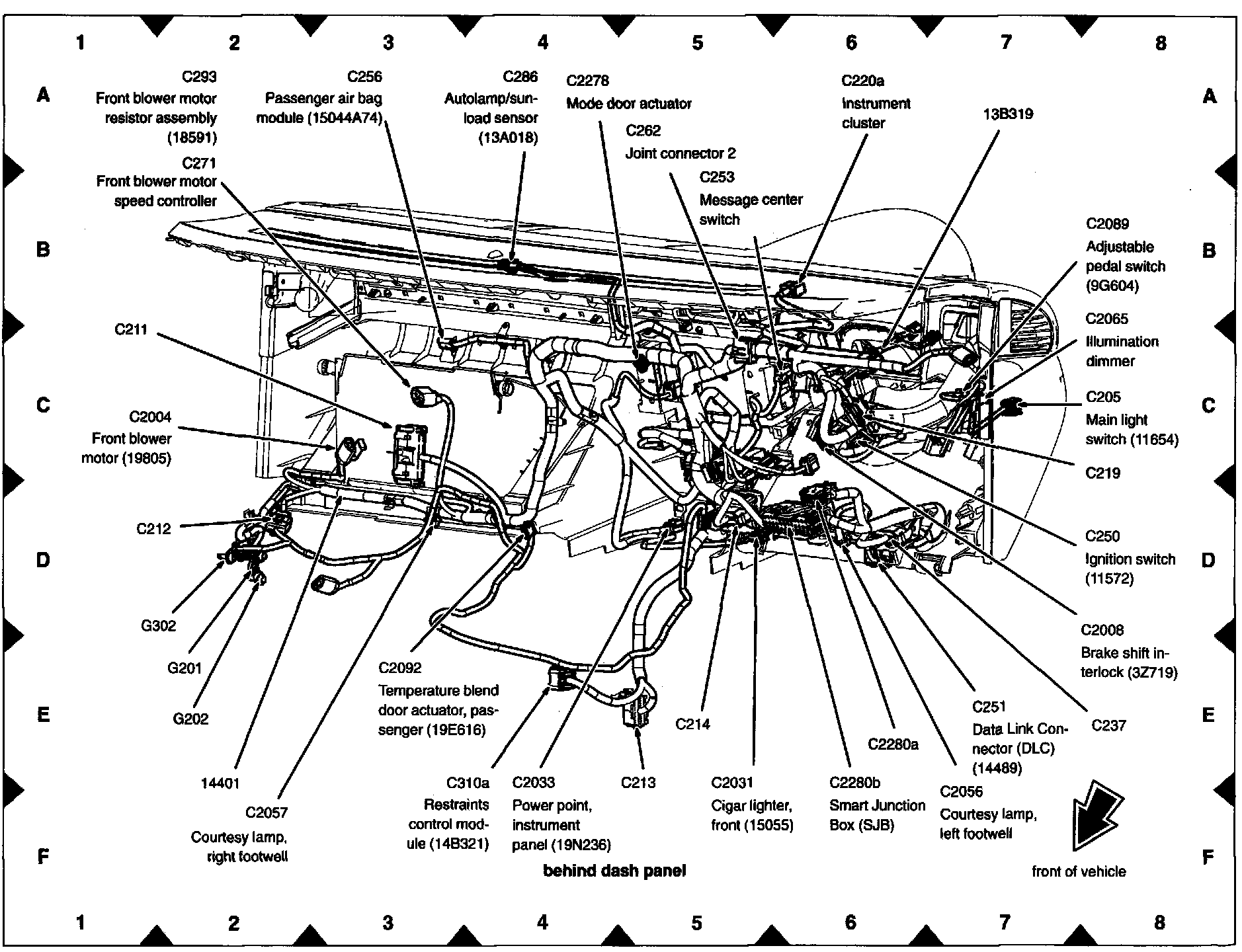

View 151-8 (Behind Dash Panel):

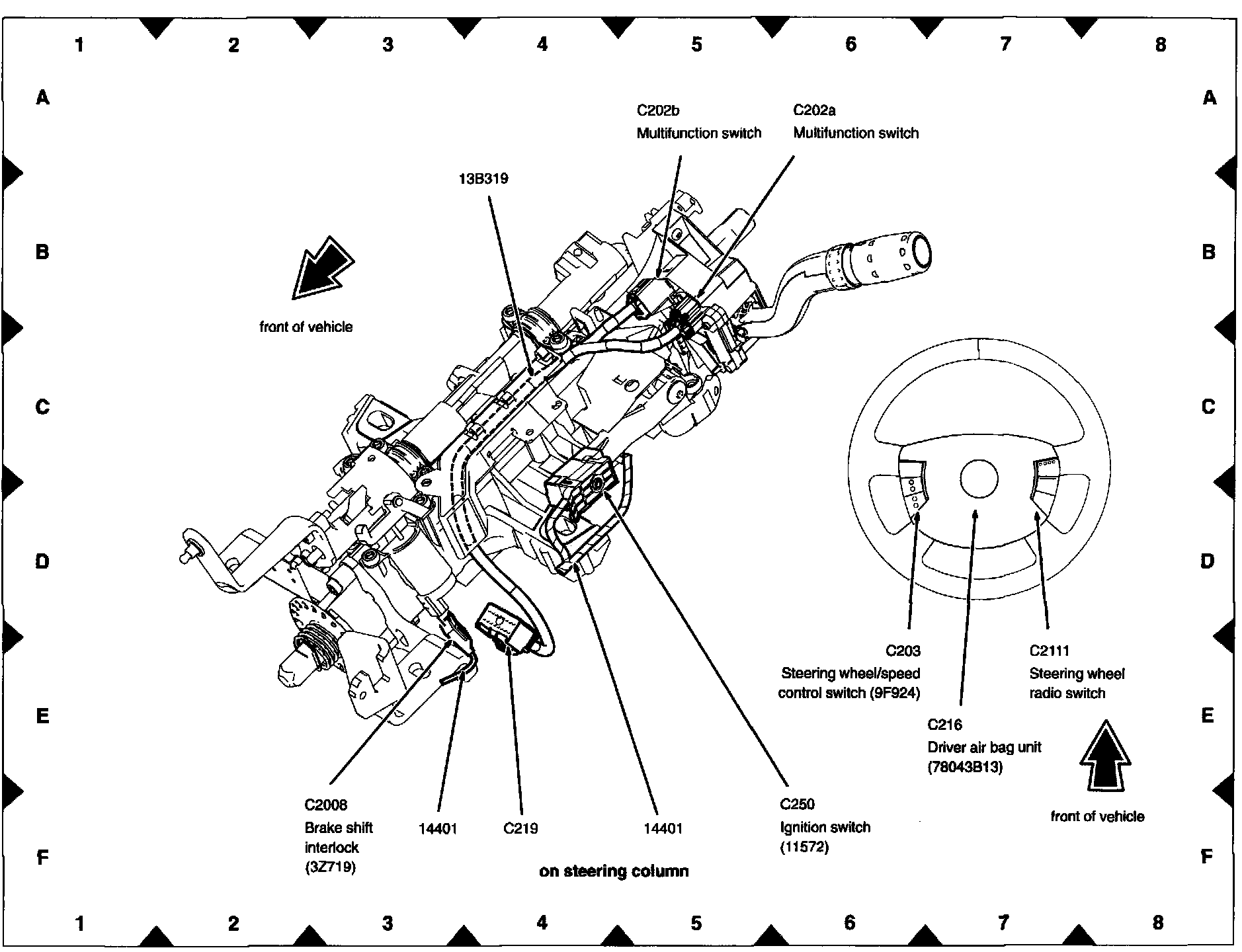

View 151-10 (On Steering Column):
