Ignition Cable: Service and Repair

"AllData Editors Note:

Customers have reported success using the following spark plug wire placement on the coil pack."






SPARK PLUG WIRES

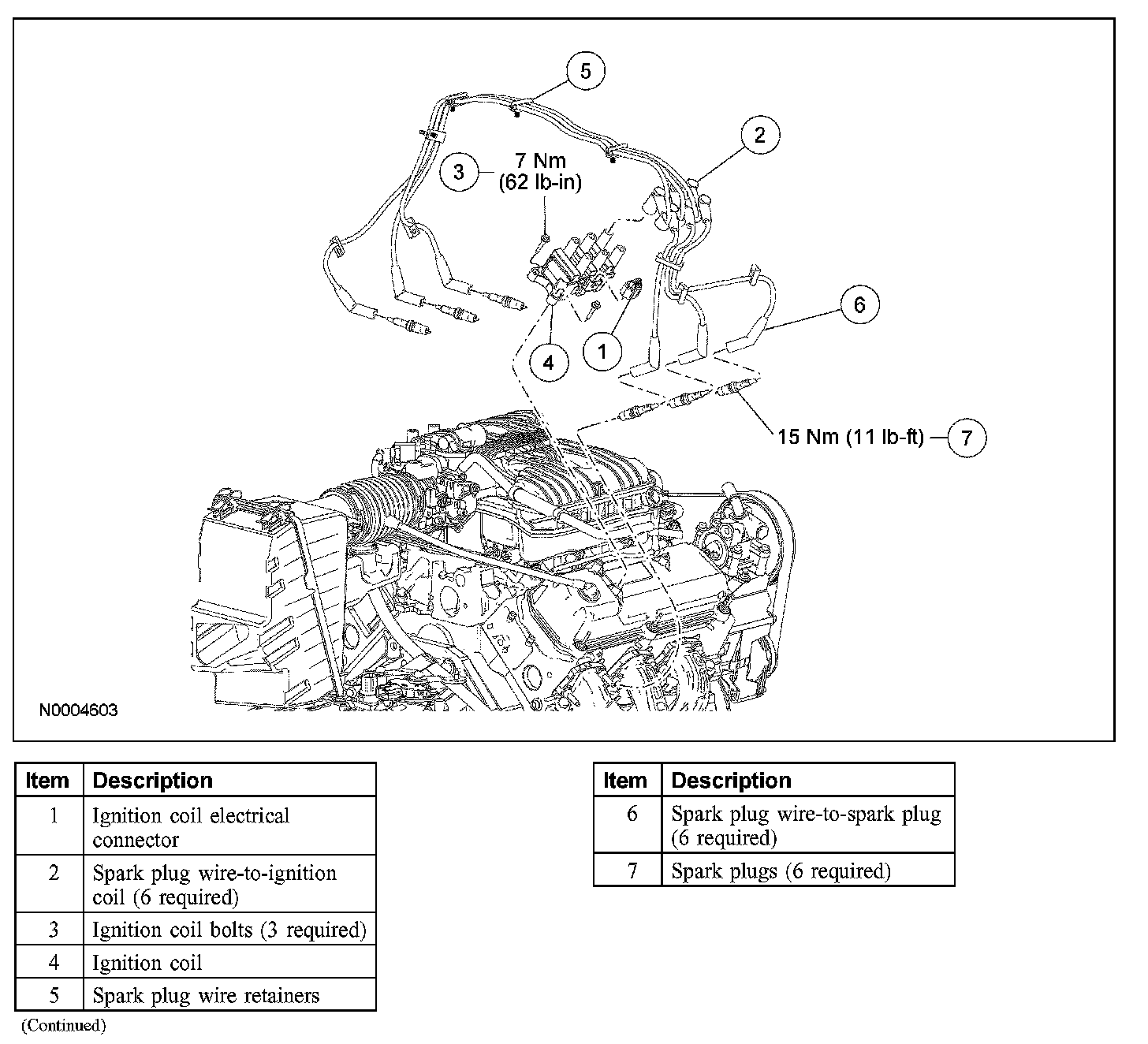

Exploded View

Remover, Spark Plug Wire:

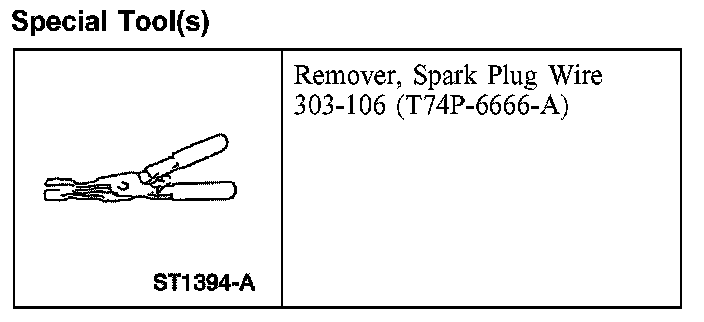

Special Tool(s)

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.

3. CAUTION: Spark plug wires must be connected to the correct ignition coil terminal. Mark the spark plug wire locations before removing them.

Disconnect the spark plug wires from the ignition coil.

4. Detach the spark plug wire retainers.







5. CAUTION: It is important to twist the spark plug wire boots while pulling along the axis of the spark plug to avoid possible damage to the spark plug wires.

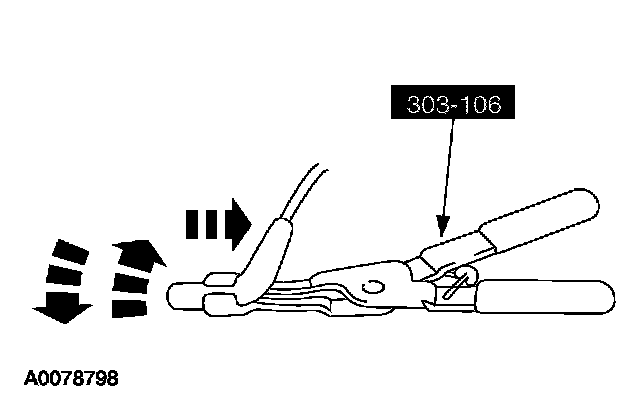

Using the special tool, remove the spark plug wire from the spark plug using a twisting motion.

6. CAUTION: Make sure the spark plug boots are positioned so the spark plug wires do not contact the exhaust manifold.

NOTE: Apply dielectric grease to the inside of the spark plug wire boots before attaching to the spark plugs.

To install, reverse the removal procedure.
