Rear Seat - 40 Percent E-Z Entry, Second Row

REAR SEAT - 40 PERCENT E-Z ENTRY, SECOND ROW







Removal and Installation

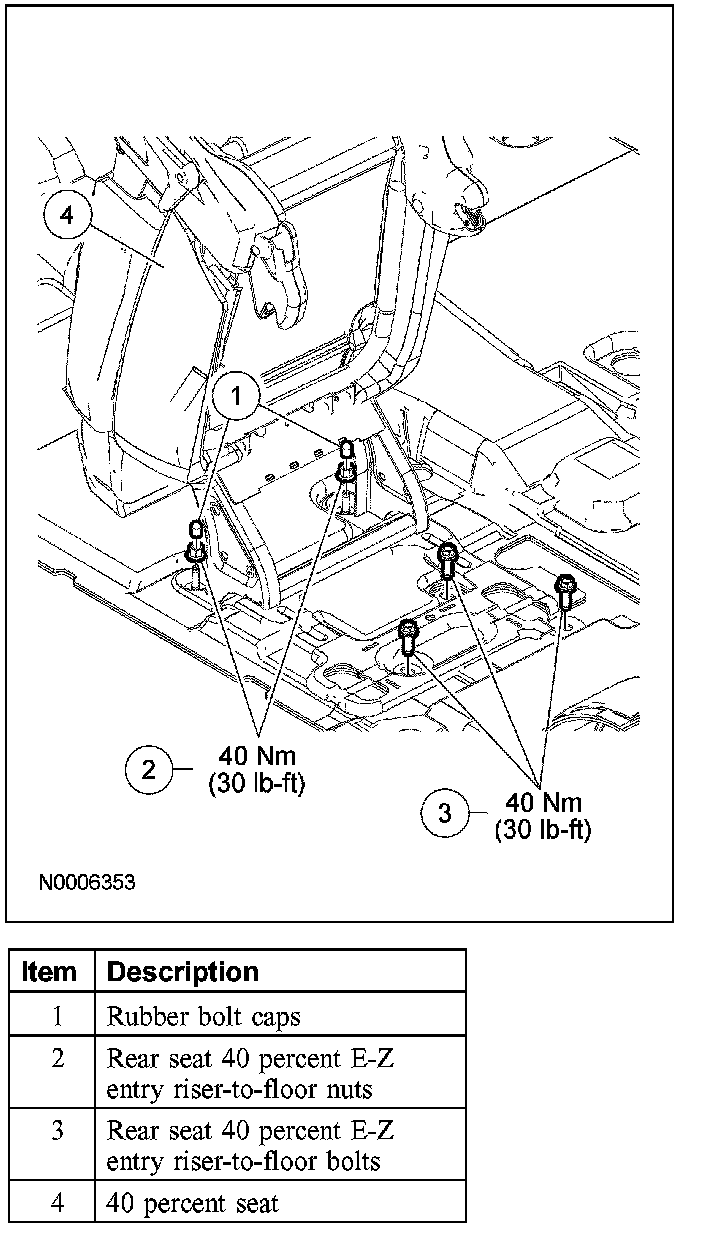

NOTE: LH seat shown, RH seat similar.

1. Remove the 2 front rubber nut caps.
2. Remove the 2 front riser-to-floor nuts.
3. Fold the affected 40 percent seat up to the E- entry position.
4. Remove the 3 rear seat riser-to-floor bolts.
5. Remove the 40 percent seat.
6. To install, reverse the removal procedure.
7. Check the active restraint system for correct operation.
