Drum Brake System
Drum Brake System
Drum Brake System
- Exploded View

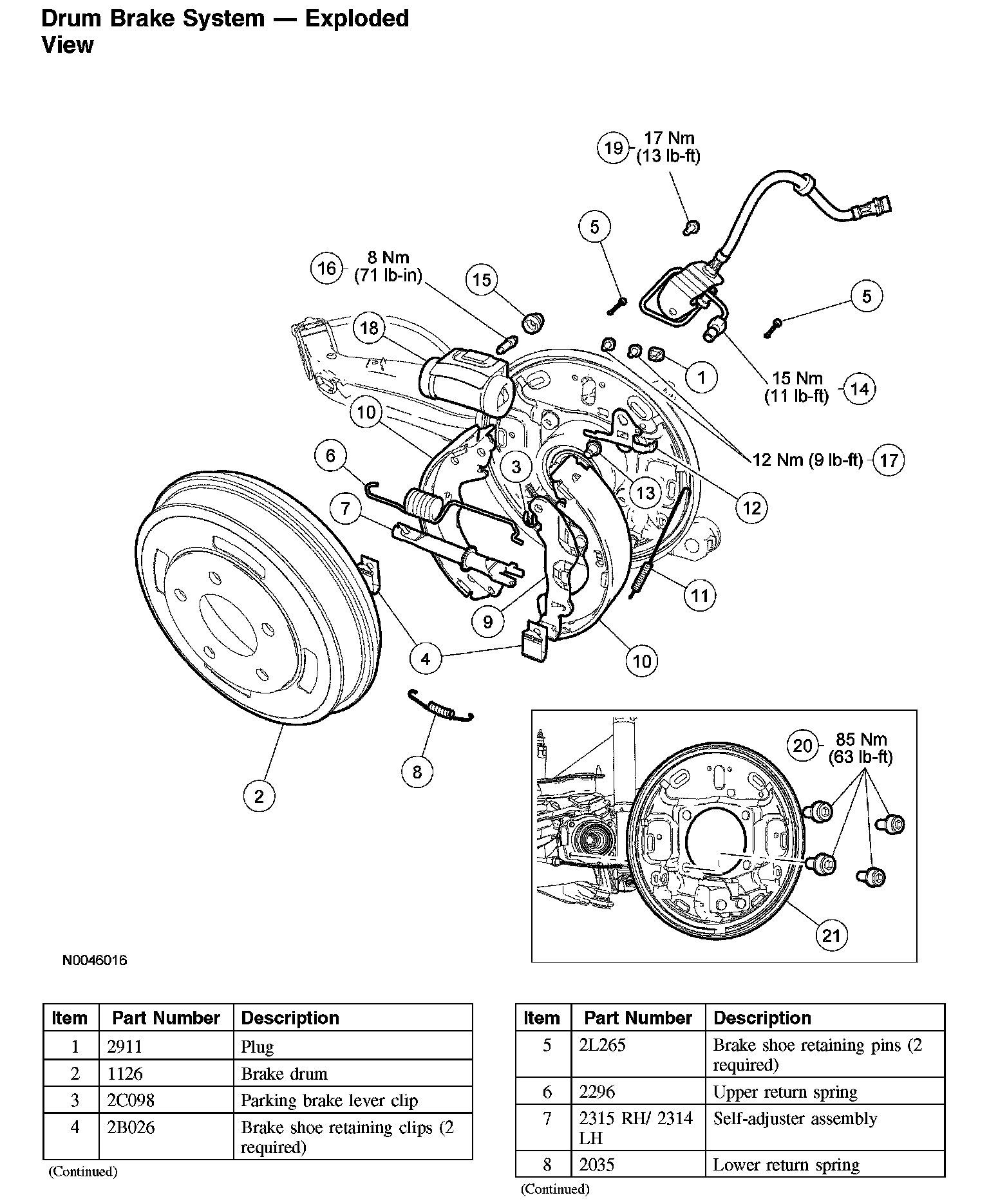

Drum Brake System - Exploded View (Part 1):

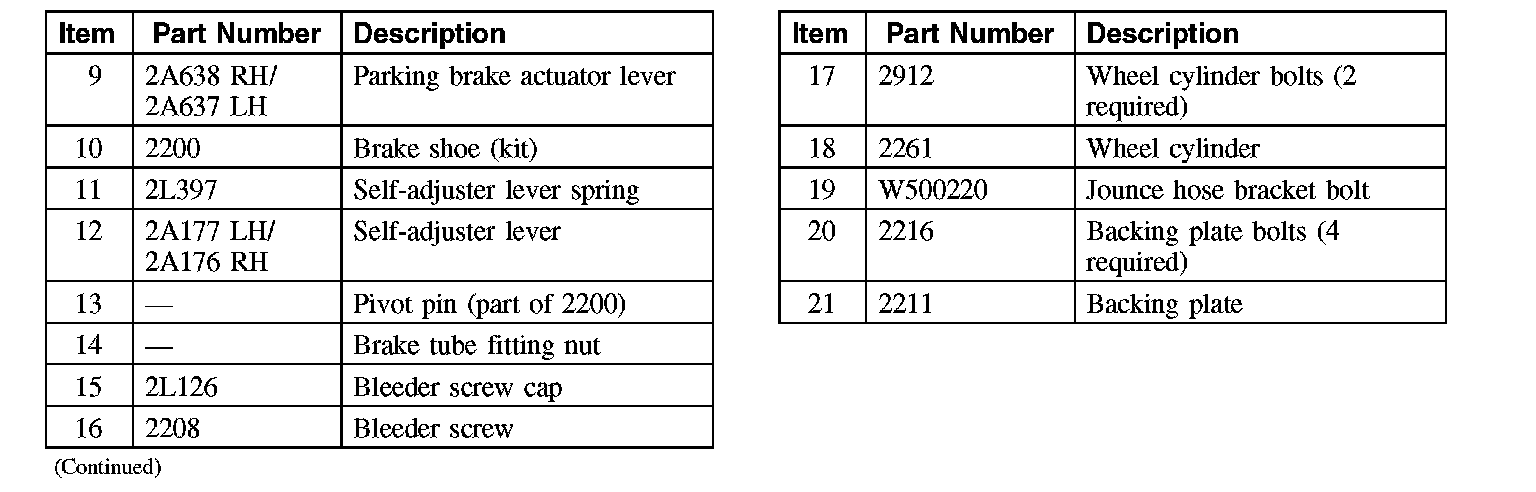

Drum Brake System - Exploded View (Part 2):
