Compressor HVAC: Service and Repair

AIR CONDITIONING (A/C) COMPRESSOR







Removal and Installation

CAUTION: If installing a new A/C compressor due to an internal failure of the old unit, carry out the following procedures to remove contamination from the A/C system.
- If A/C flushing equipment is available, carry out flushing of the air conditioning system prior to installing a new air conditioning compressor.
- If A/C flushing equipment is not available, carry out filtering of the air conditioning system after a new air conditioning compressor has been installed.
- Install a new evaporator core orifice.
- Install a new suction accumulator.

NOTE:
- Installation of a new suction accumulator not required when repairing the A/C system, except when there is physical evidence of contamination from a failed A/C compressor or damage to the suction accumulator.
- If installing a new A/C compressor, the A/C clutch disc and hub, A/C compressor pulley and A/C clutch field coil must be inspected and transferred from the old unit to the new unit if suitable for reuse.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Recover the refrigerant.
3. Remove the accessory drive belt.

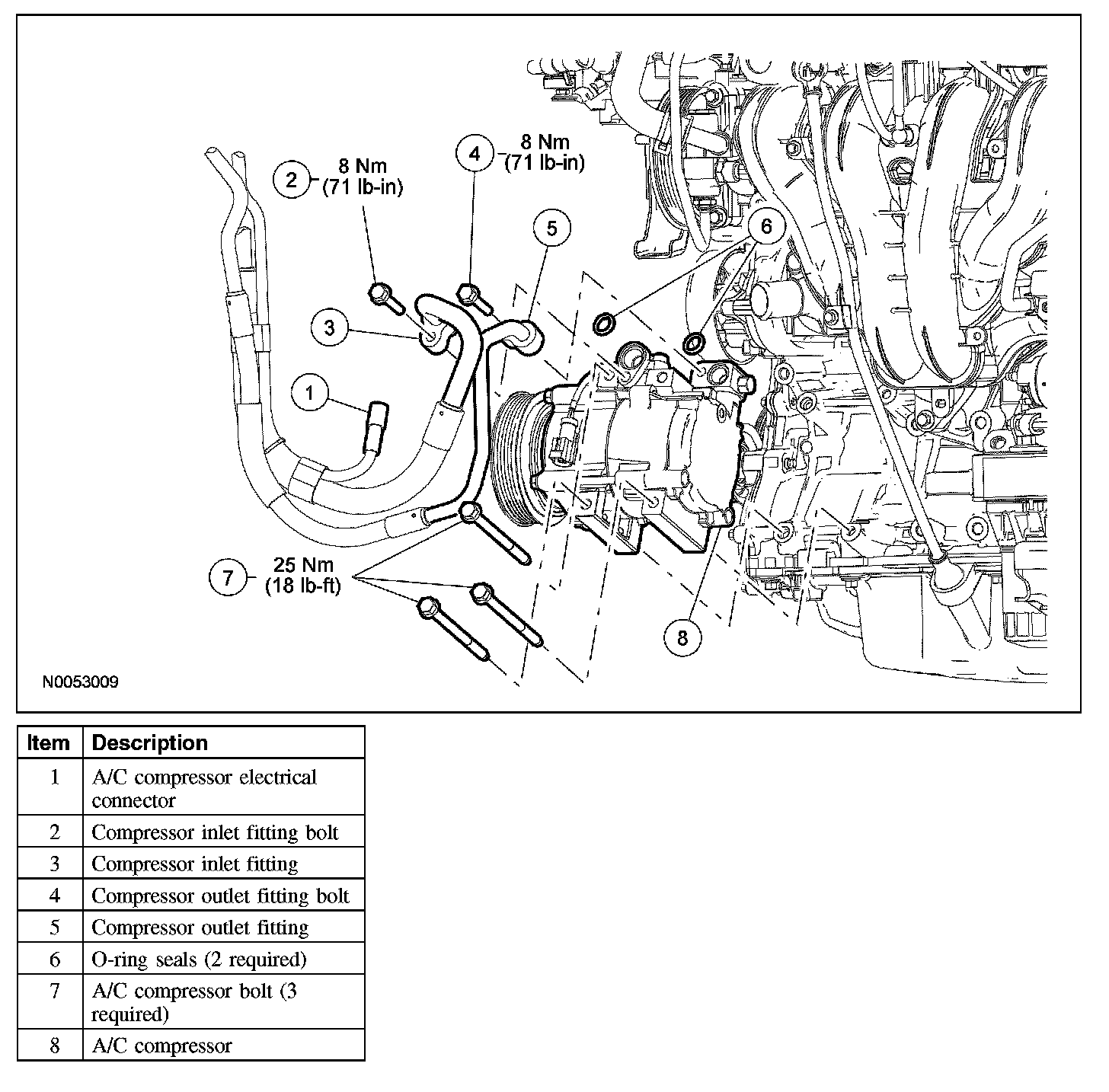

4. Disconnect the A/C compressor electrical connector.
5. Remove the compressor inlet fitting bolt and disconnect the fitting.
- Discard the O-ring seal.
- To install, tighten to 8 Nm (71 lb-in).

6. Remove the compressor outlet fitting bolt and disconnect the fitting.
- Discard the O-ring seal.
- To install, tighten to 8 Nm (71 lb-in).

7. Remove the 3 A/C compressor bolts and the A/C compressor.
- To install, tighten to 25 Nm (18 lb-ft).

8. To install, reverse the removal procedure.
- Install new O-ring seals.
- If a new A/C compressor is to be installed, the clutch assembly must be transferred from the old unit to the new unit.
- If not filtering the A/C system, lubricate the refrigerant system with the correct amount of clean PAG oil.

9. Evacuate, leak test and charge the refrigerant system.
