Torque Specifications

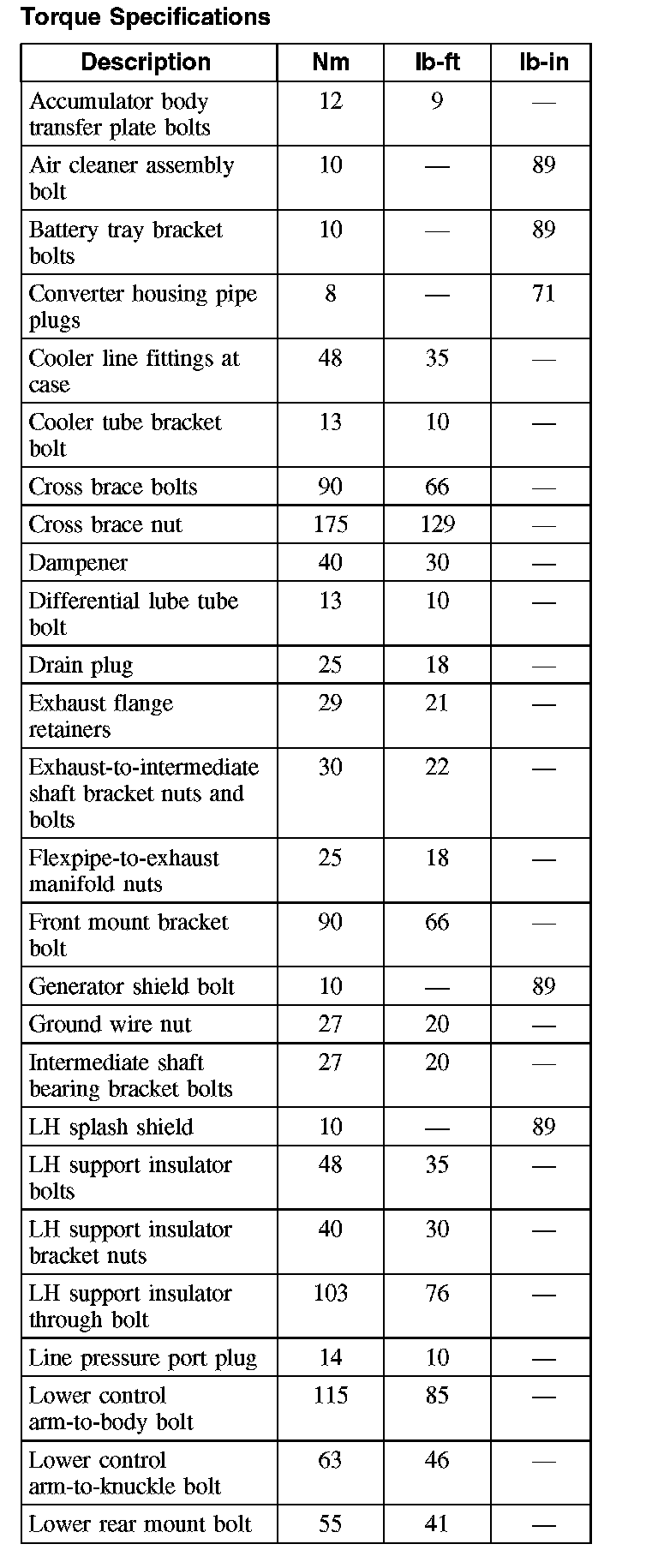

Torque Specifications:

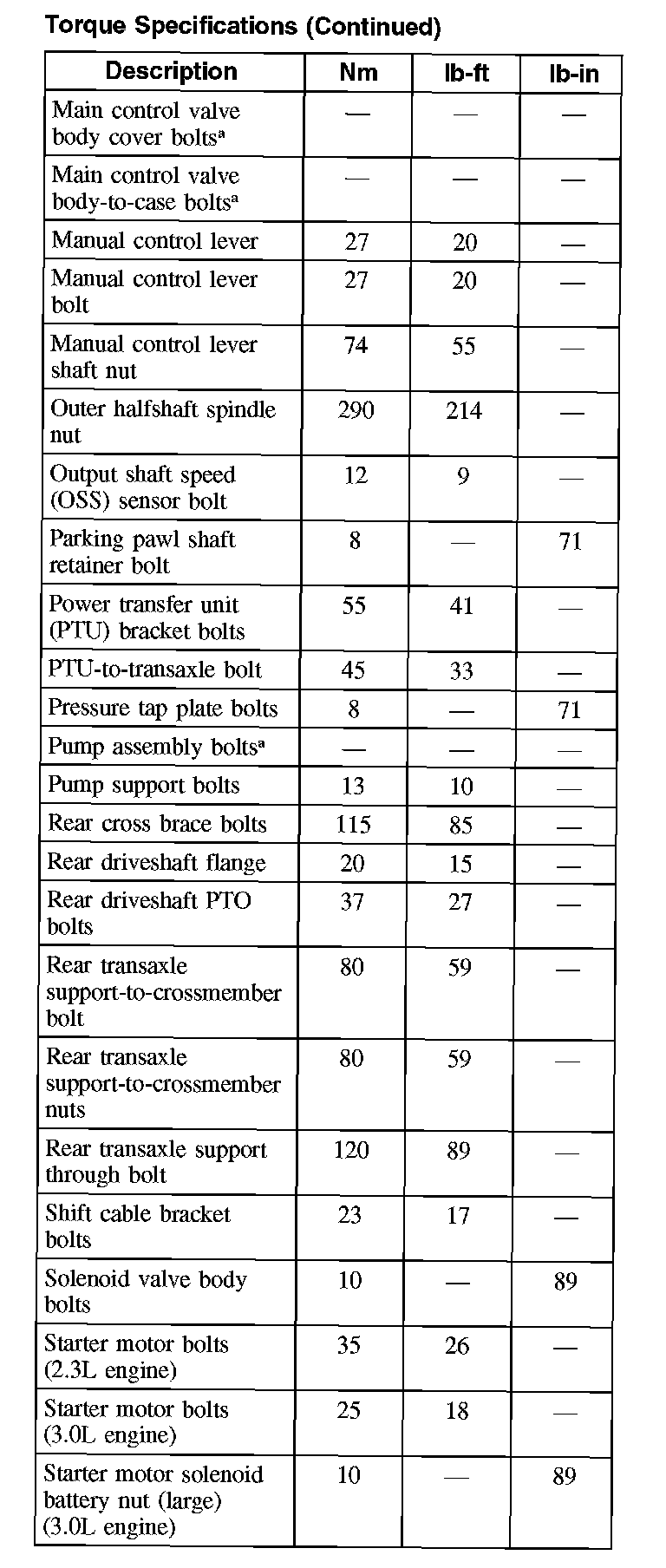

Torque Specifications (Continued):



Torque Specifications (Continued):
