Front Suspension - Exploded View

Front Suspension - Exploded View

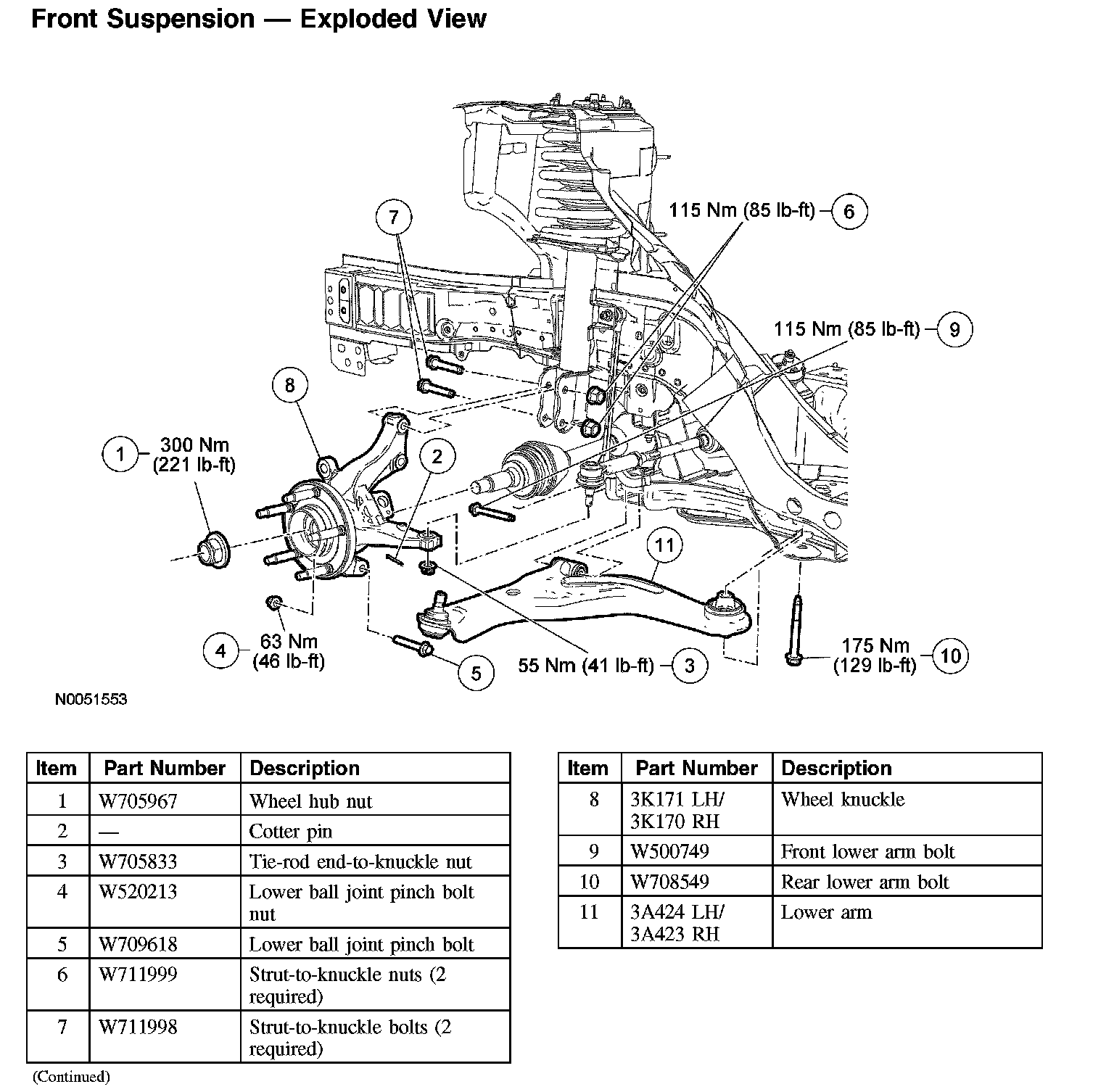

Front Suspension - Exploded View:

Note: Fastener replacement may be required. Refer to Component Service and Repair for further information.
