Mercury
>>
2007
>>
Mariner 2WD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Timing Components
Timing Components
Valve Train Components - Exploded View

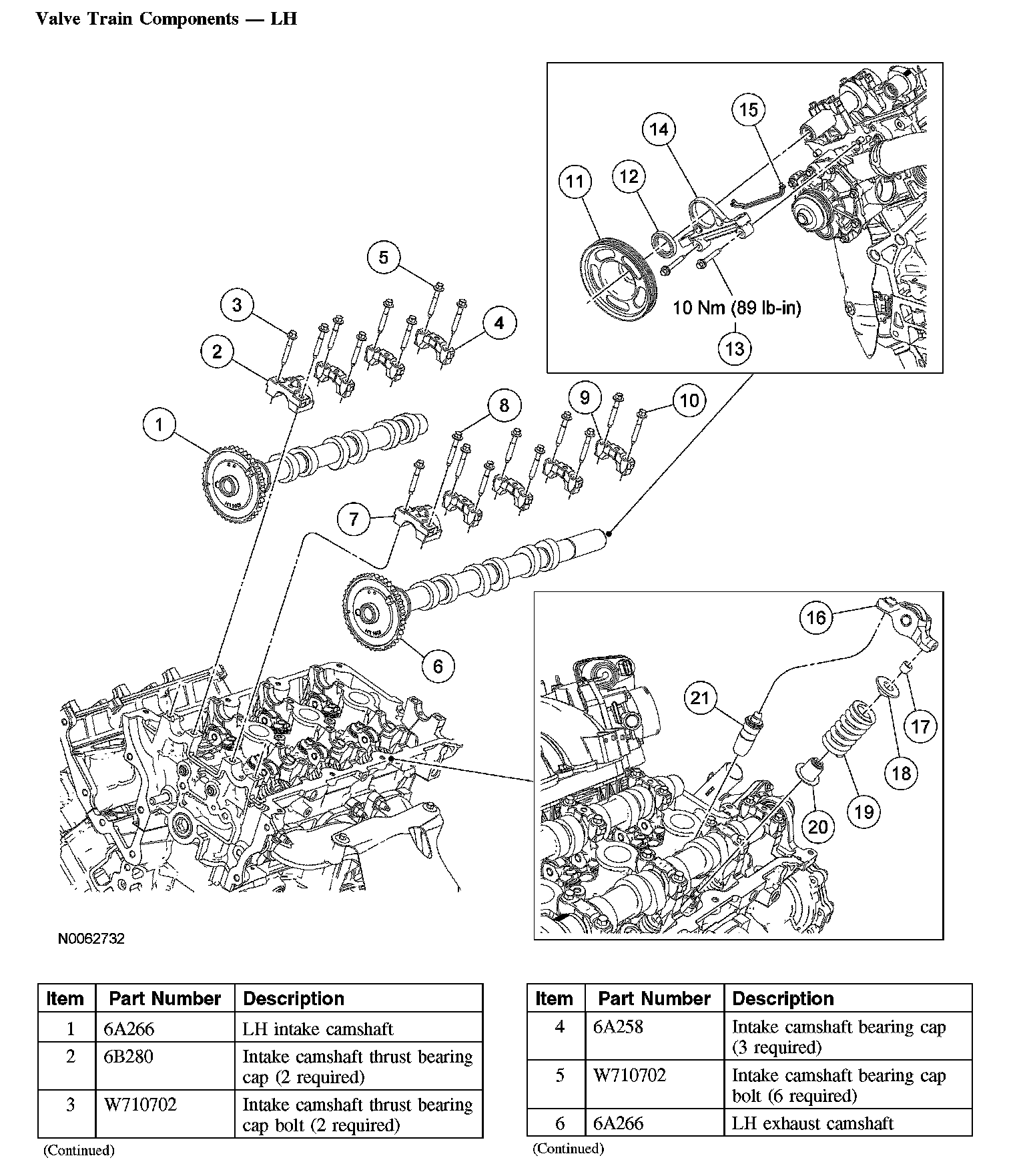

Valve Train Components - LH (Part 1):

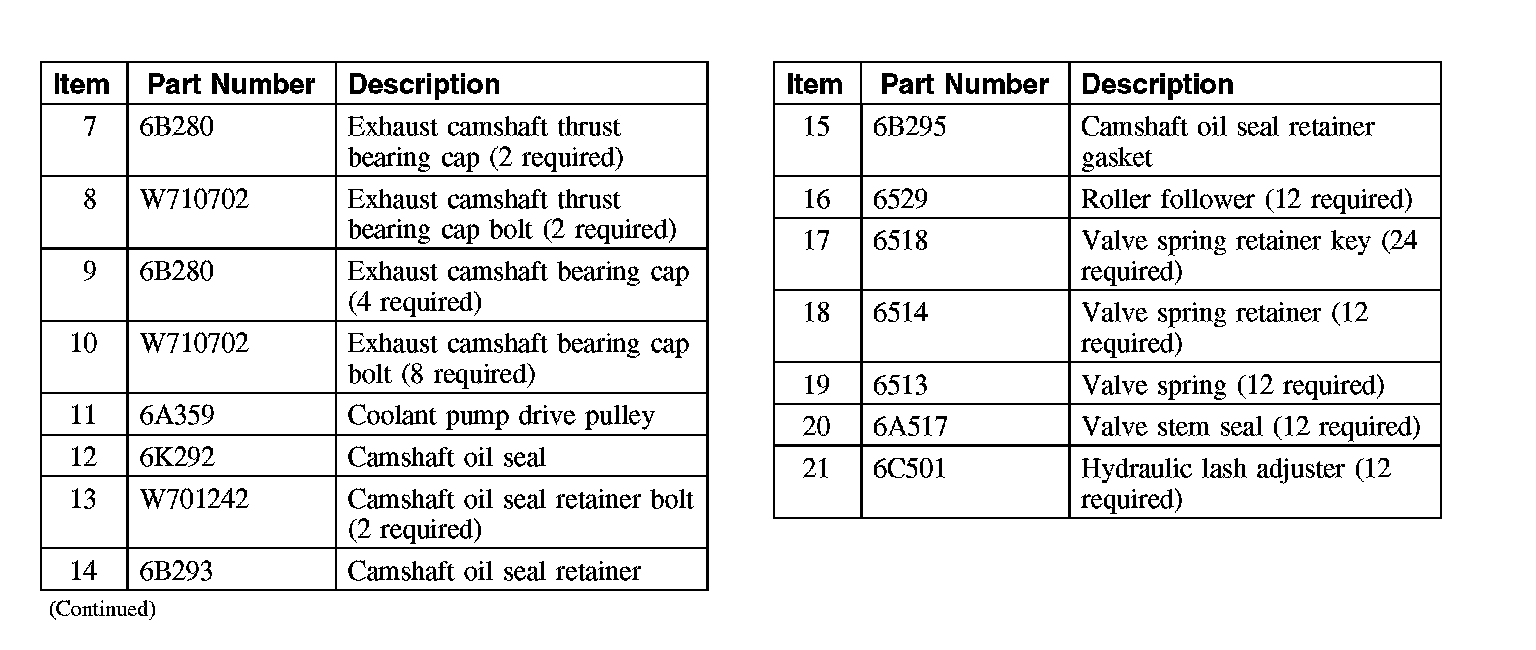

Valve Train Components - LH (Part 2):

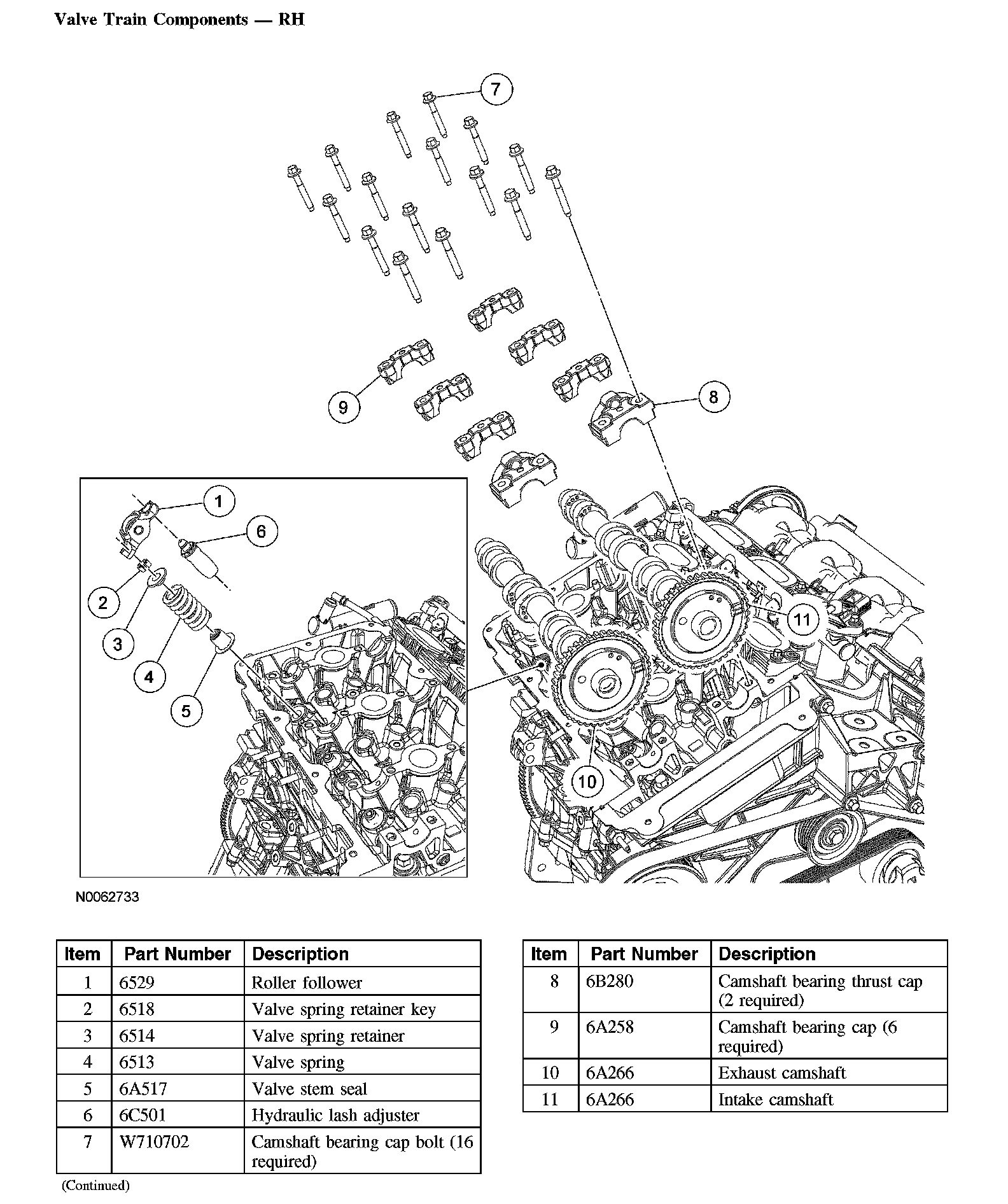

Valve Train Components - RH:
