Drive Belt: Service and Repair

Accessory Drive Belt

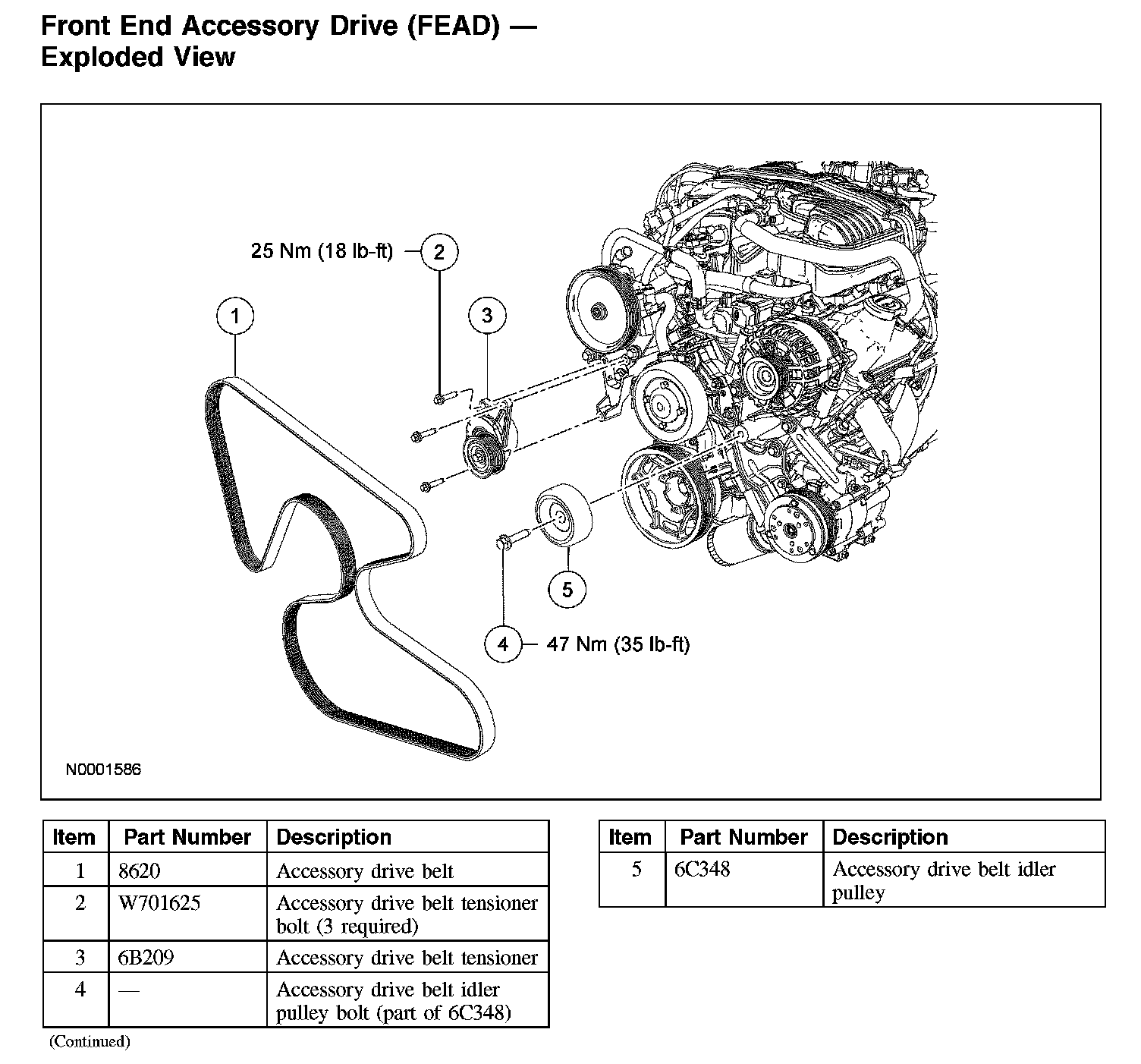

Front End Accessory Drive (FEAD) - Exploded View:

Removal and Installation
1. Remove the accessory drive belt.

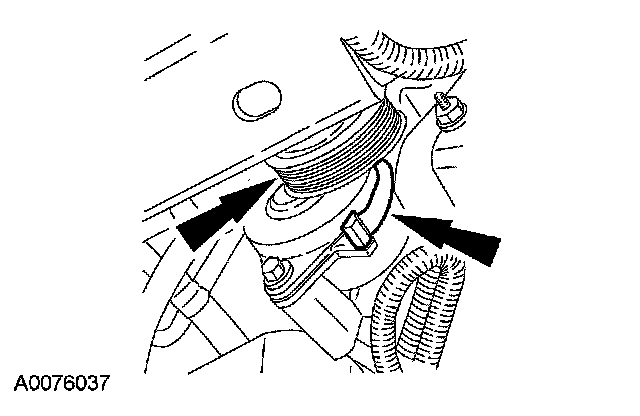

^ Rotate the accessory drive belt tensioner counterclockwise.
^ Push the spring clip toward the belt tensioner to lock the accessory drive belt tensioner in place.





2. To install, reverse the removal procedure.
