Ignition Coil: Service and Repair

"AllData Editors Note:

Customers have reported success using the following spark plug wire placement on the coil pack."






IGNITION COIL







Exploded View

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the cowl panel grille.

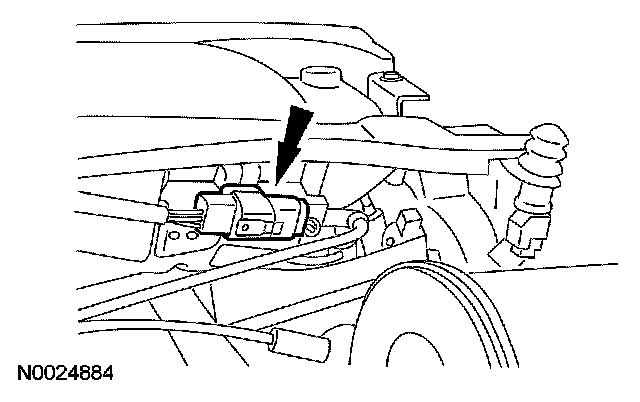

3. Disconnect the windshield wiper motor electrical connector.

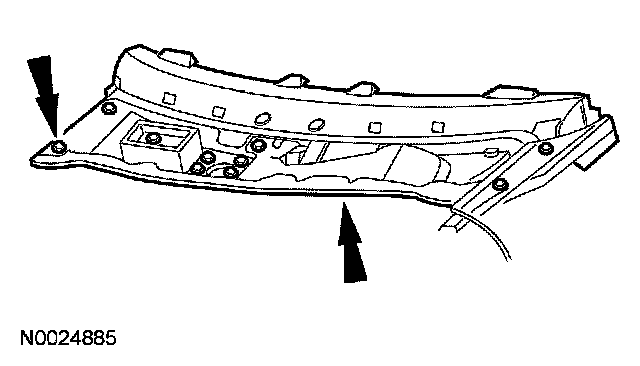

4. Remove the bolts and the cowl lower panel.
- To install, tighten to 6 Nm (53 lb-in).

5. Disconnect the electrical connector from the ignition coil.

6. CAUTION:
- It is important to twist the spark plug wire boots, while pulling upward, to avoid possible damage to the spark plug wires.
- Spark plug wires must be connected to the correct ignition coil terminal.

Disconnect the 6 spark plug wires from the ignition coil.

7. Remove the 3 bolts and the ignition coil.
- To install, tighten to 7 Nm (62 lb-in).

8. To install, reverse the removal procedure.
