Shifter A/T: Service and Repair

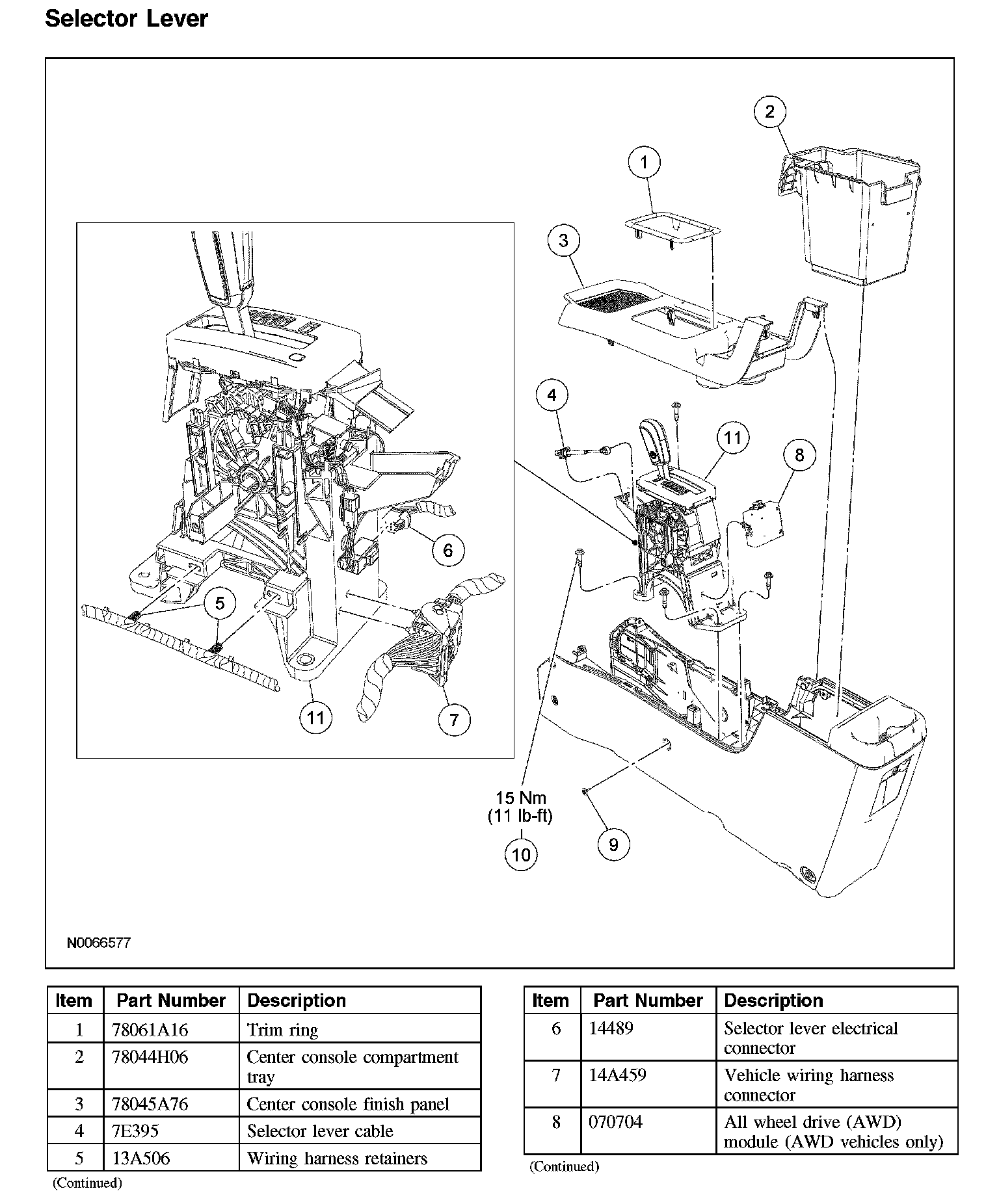

Selector LeverSelector Lever (Part 1):

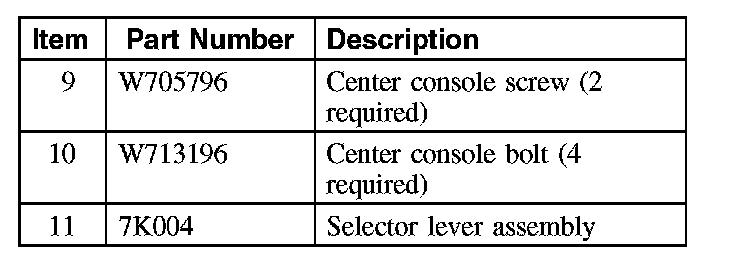

Selector Lever (Part 2):
Removal
All vehicles

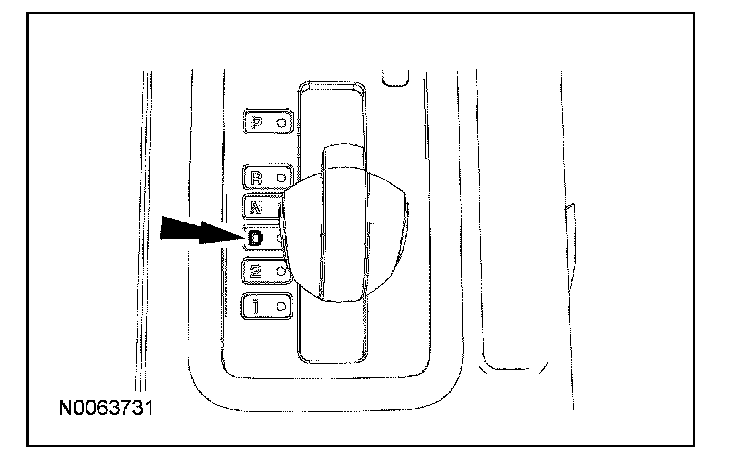

1. Place the selector lever in the (D) position.

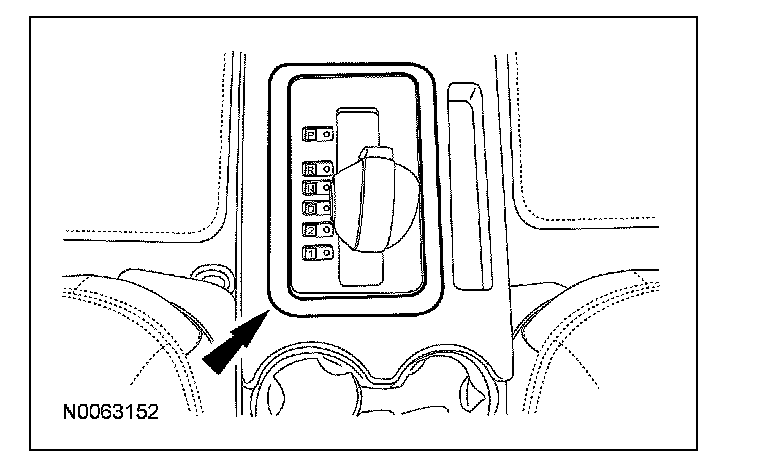

2. Gently pry up to remove the upper selector lever trim ring.

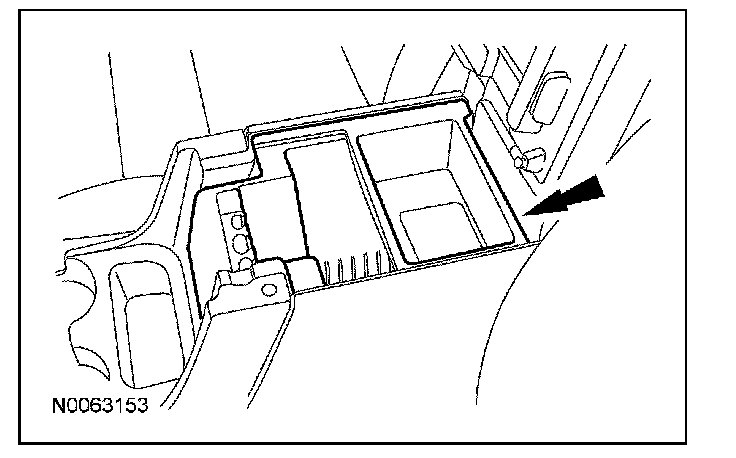

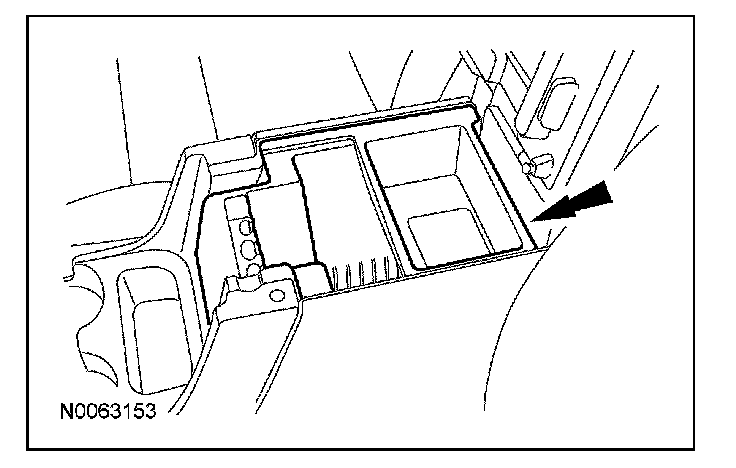

3. Lift the center console lid and remove the center console compartment tray.

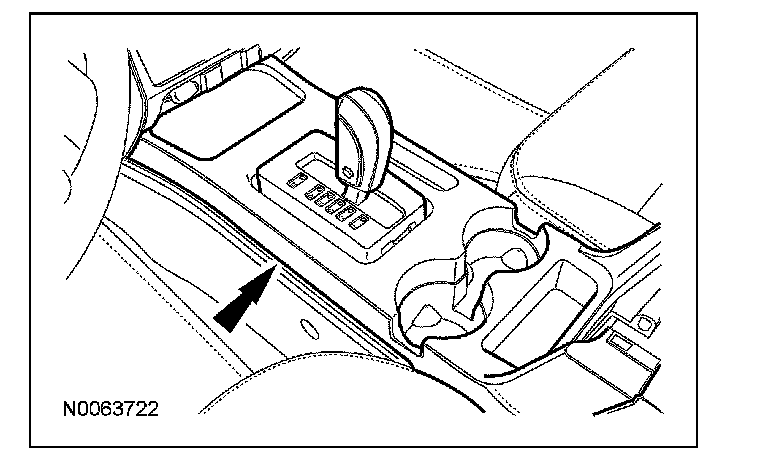

4. Remove the top finish panel.

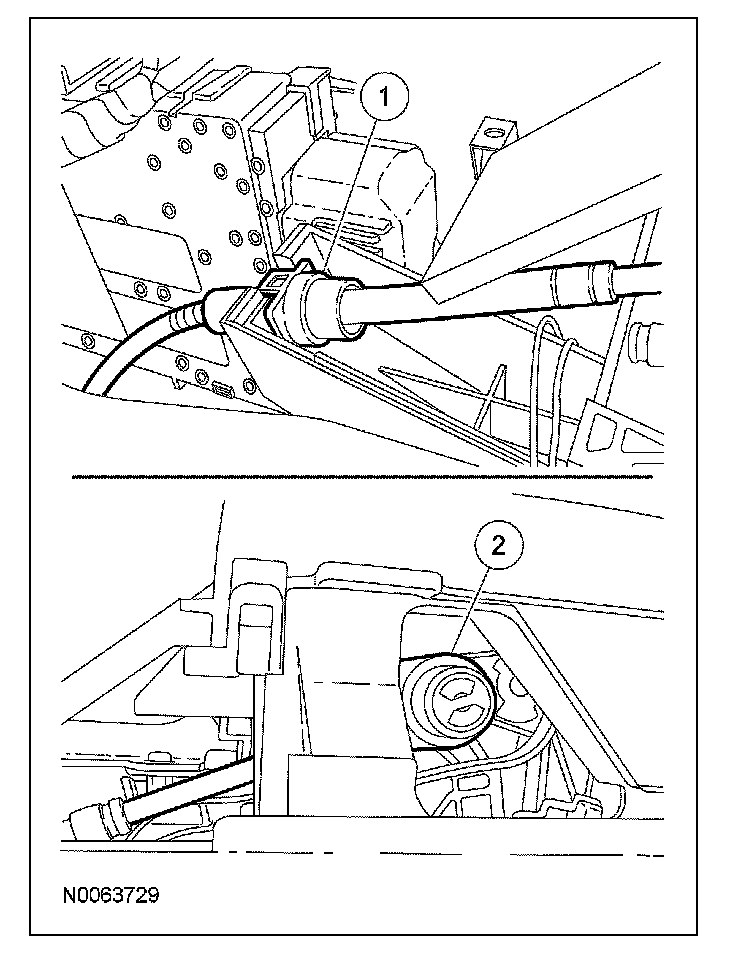

5. Remove the selector lever cable from the selector lever assembly.
1 Disconnect the selector lever cable end from the selector lever.
2 Remove the selector lever cable from the bracket.

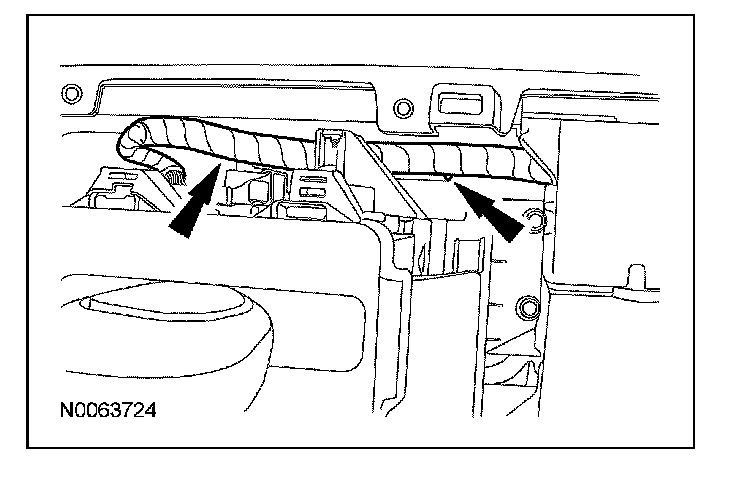

6. Disconnect the wiring harness retainers from the selector lever.
7. Disconnect the electrical connectors from the selector lever.
1 Disconnect the selector lever electrical connector.
2 Remove the vehicle harness connector from the selector lever.
All wheel drive (AWD) vehicles

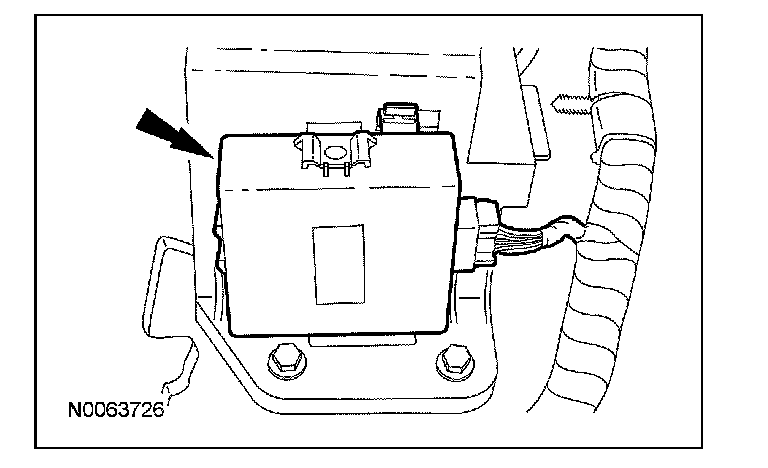

8. Pull the all wheel drive (AWD) module straight back and remove it from the back of the selector lever.
All vehicles

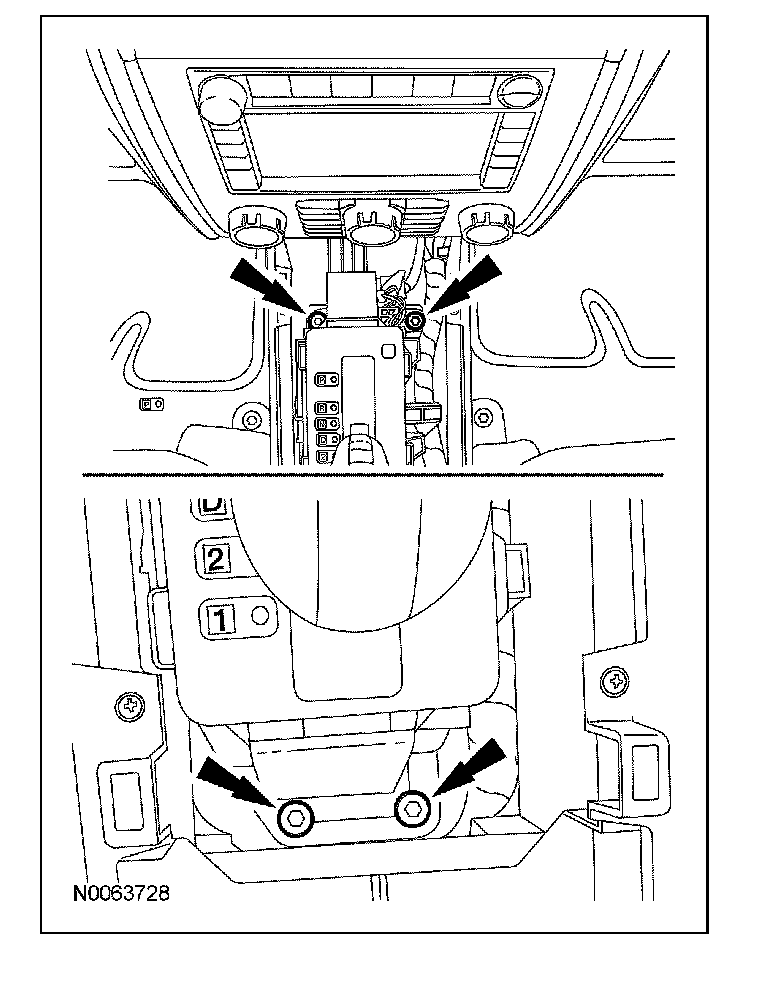

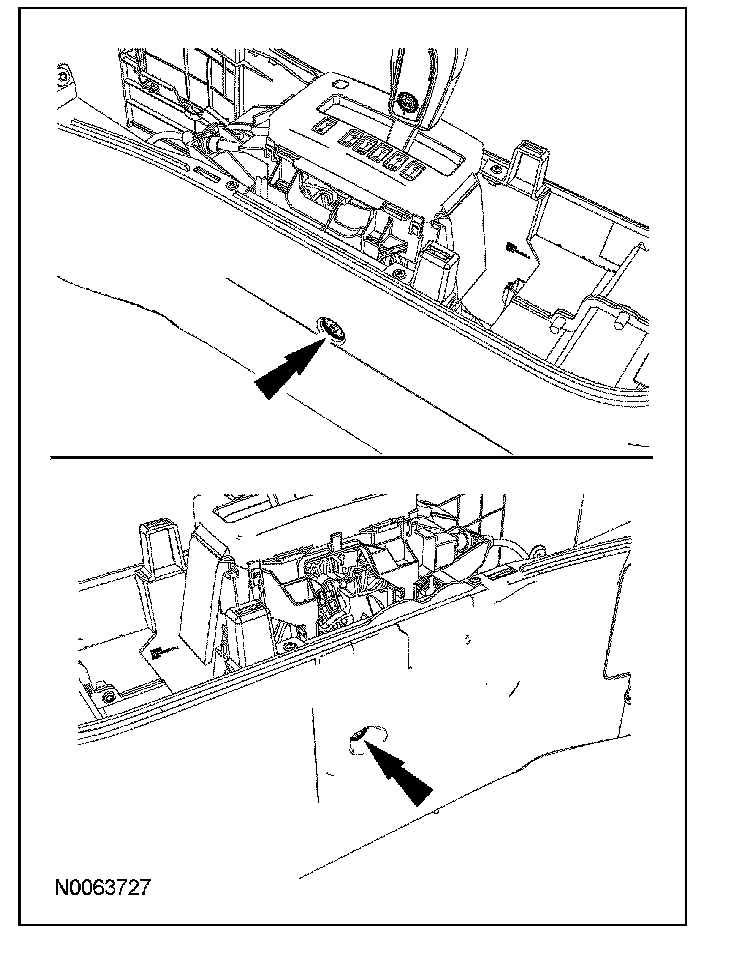

9. Remove the 2 screws from the center console.

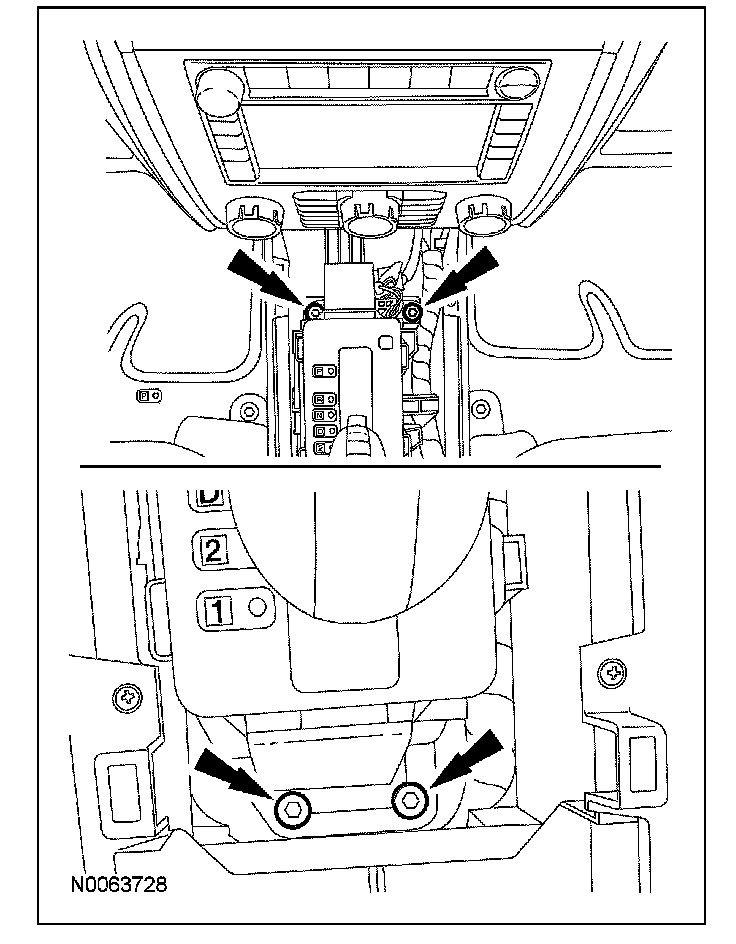

10. Remove the 4 bolts and remove the selector lever assembly.
Installation
All vehicles
1. Install the selector lever assembly and the 4 bolts.
^ Tighten to 15 Nm (11 lb-ft).

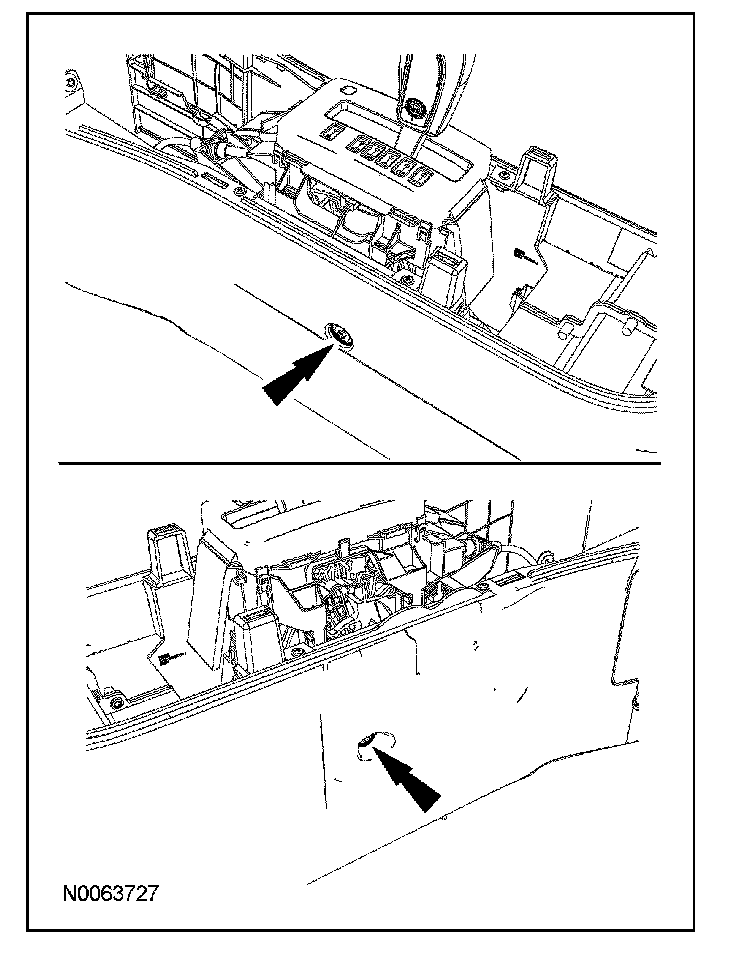

2. Install the 2 center console screws.
AWD vehicles

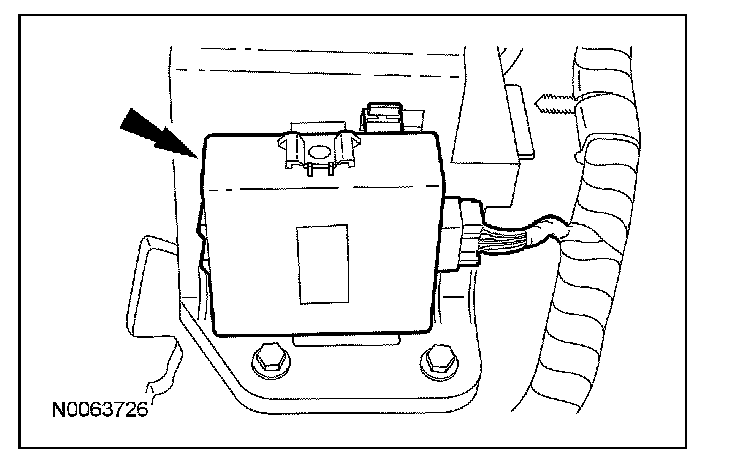

3. Install the AWD module on to the back of the selector lever.
All vehicles
4. Connect the electrical connectors to the selector lever.
1 Install the vehicle harness connector on the selector lever.
2 Connect the selector lever electrical connector.

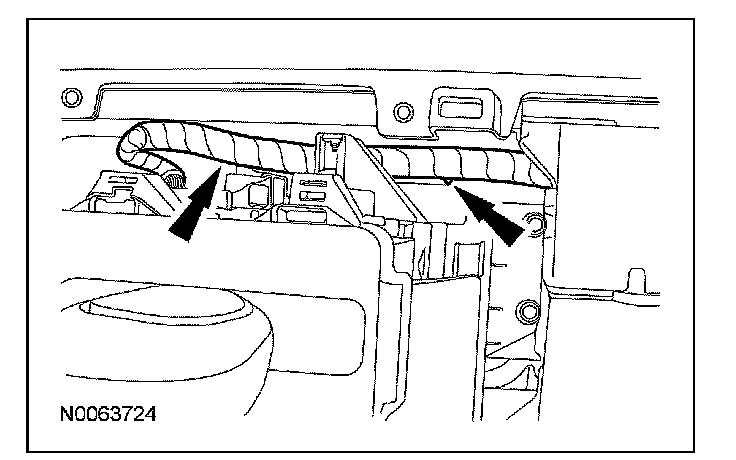

5. Connect the wiring harness retainers to the selector lever.

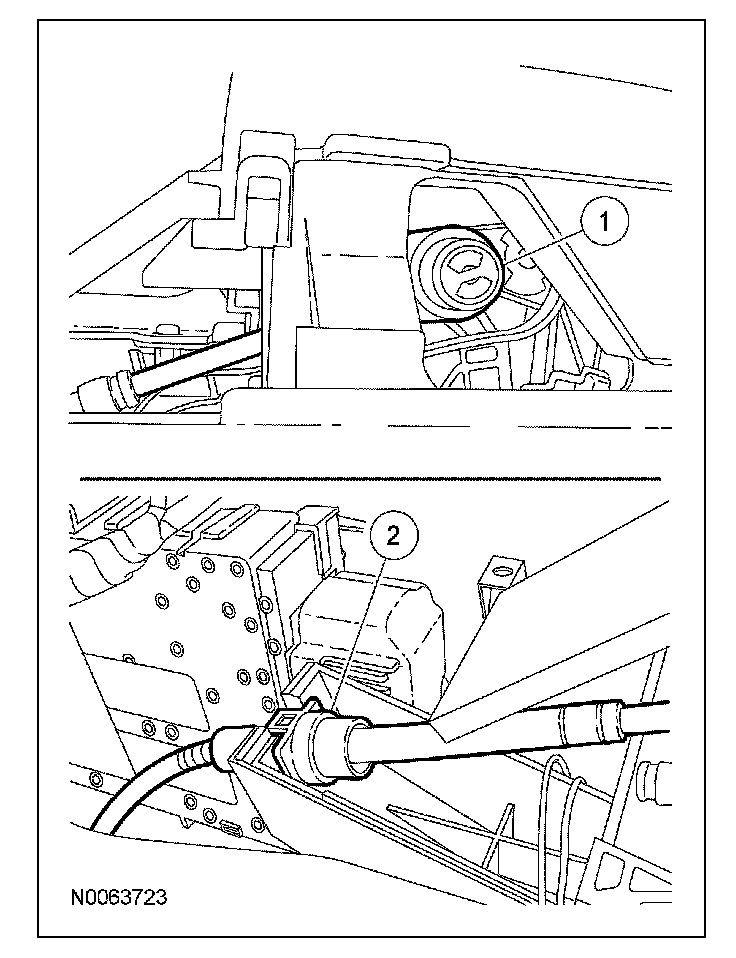

6. Install the selector lever cable on the selector lever assembly.
1 Install the selector lever cable on the bracket.
2 Connect the selector lever cable end.

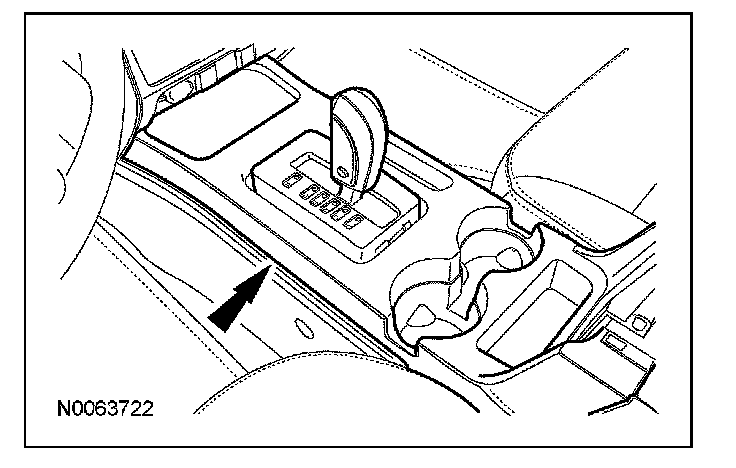

7. Install the top finish panel.
8. Install the center console compartment tray.

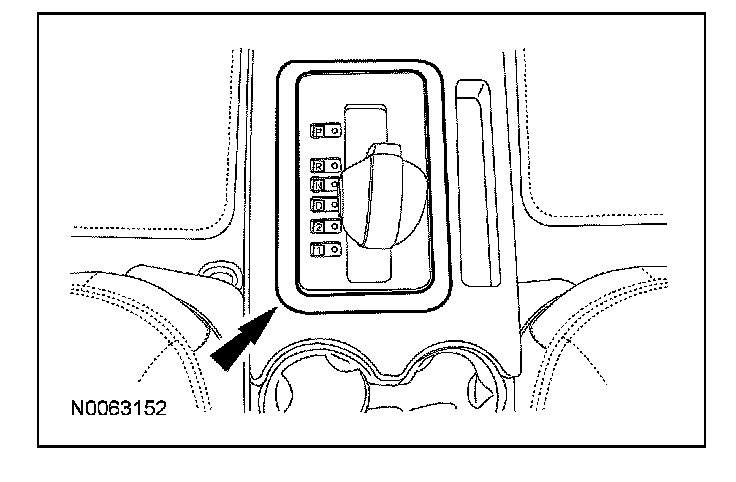

9. Install the upper selector lever trim ring.
10. Adjust the shift cable. For additional information, refer to Selector Lever Cable Adjustment.
