Rear Door Window Glass Weatherstrip: Service and Repair

DOOR GLASS TOP RUN - REAR

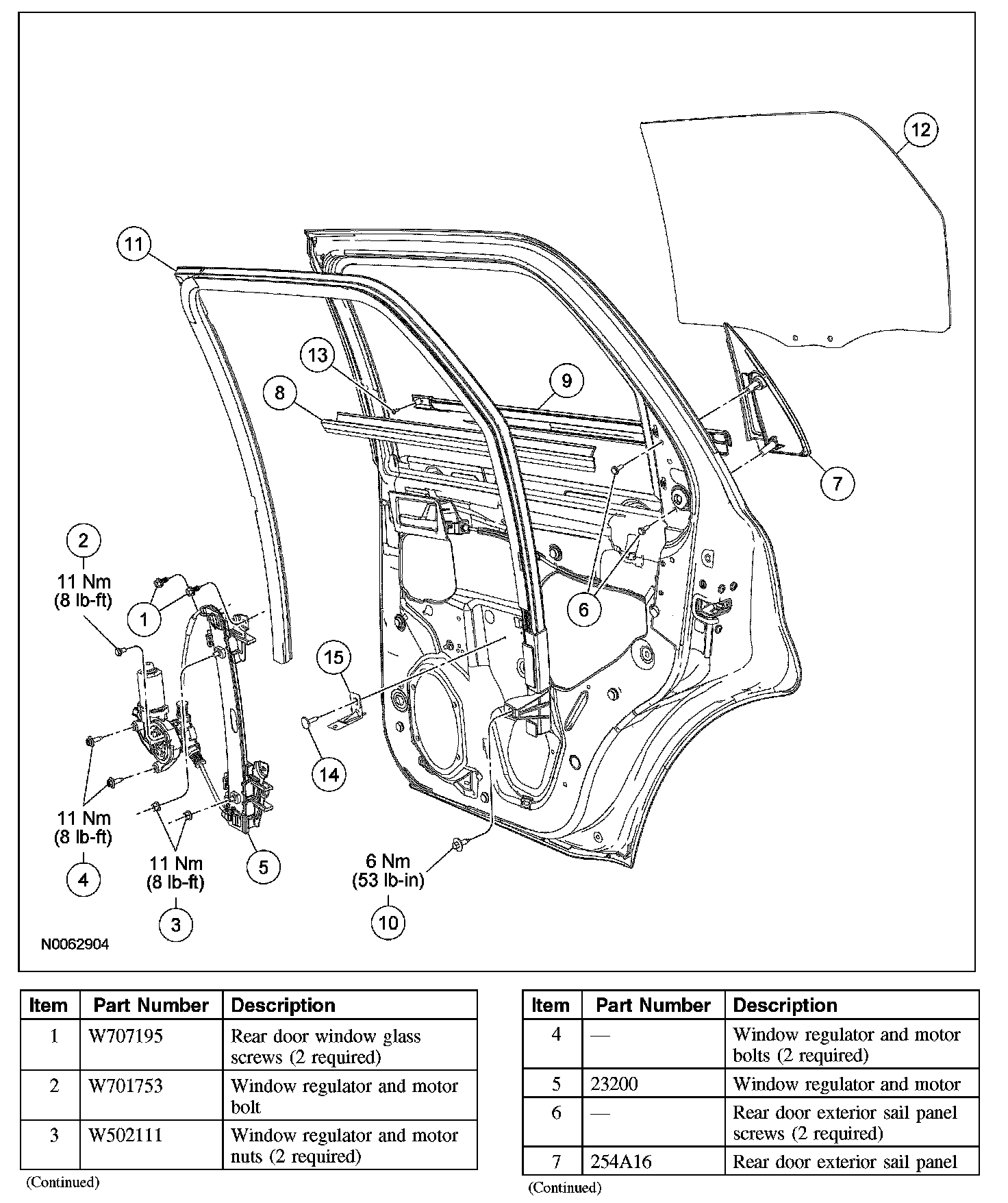

Exploded View

Part 1:

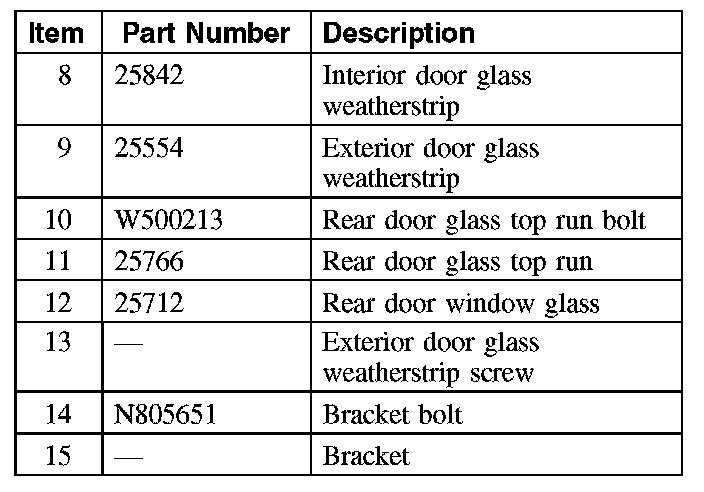

Part 2:

Removal and Installation
1. Remove the rear door window regulator.
2. Position the rear door window glass to the full down position.
3. Remove the 2 screws and the rear door exterior sail panel.
4. Remove the interior door glass weatherstrip.
5. Remove the exterior door glass weatherstrip.
6. Remove the rear door glass top run bolt.
- To install, tighten to 6 Nm (53 lb-in).

7. Position the rear door window glass down and forward.
8. Remove the rear door glass top run.
9. To install, reverse the removal procedure.
