Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF) Sensor

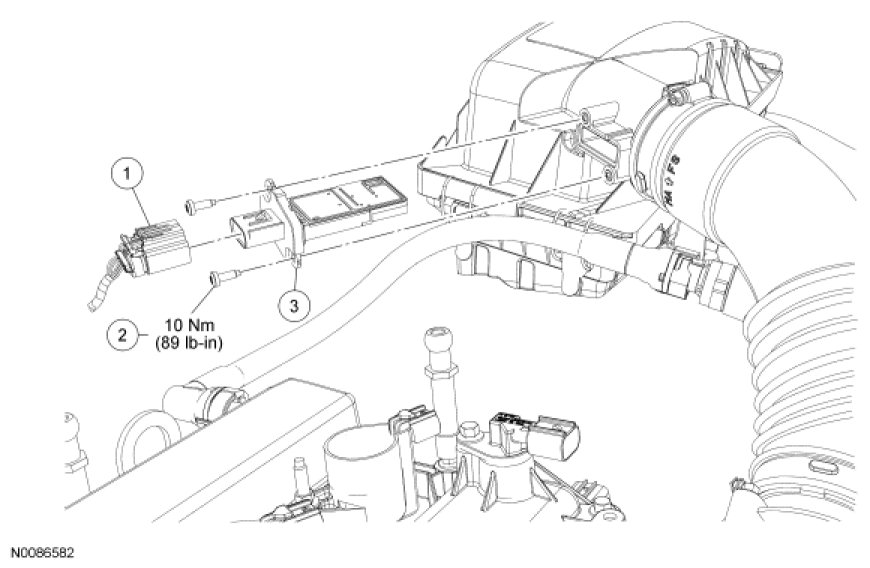

Removal and Installation

1. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

2. Remove the 2 screws and the MAF sensor.
- To install, tighten to 10 Nm (89 lb-in).

3. To install, reverse the removal procedure.
