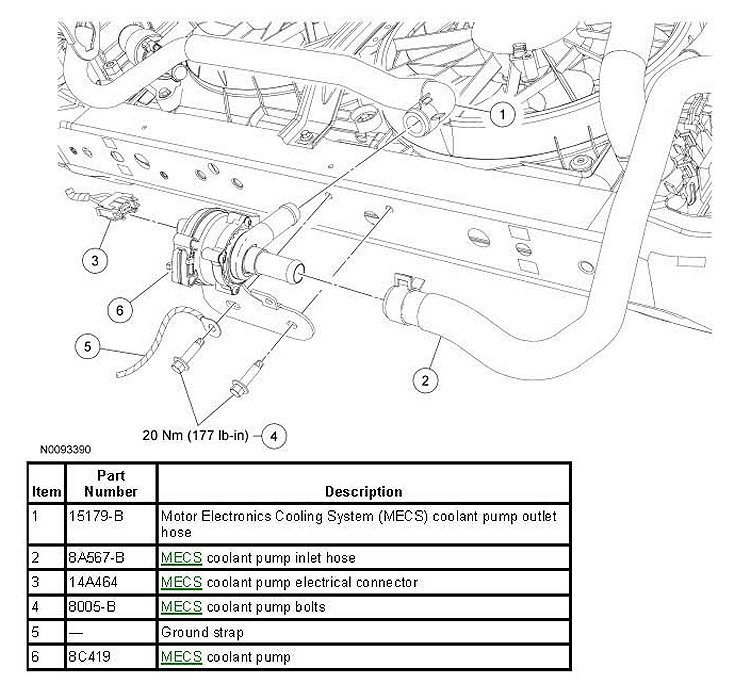

Motor Electronics Pump

Motor Electronics Pump








1. Drain the motor electronics cooling system (MECS). For additional information, refer to Procedures

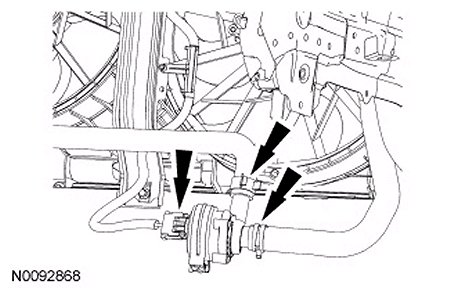

2. Disconnect the inlet and outlet hoses.
^ Disconnect the harness connector.

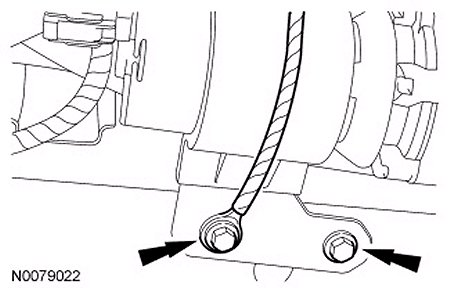

3. Remove the bolts.
^ To install, tighten to 20 Nm (177 lb-in).







4. To install, reverse the removal procedure.
