Washer Pump and Reservoir

Washer Pump and Reservoir





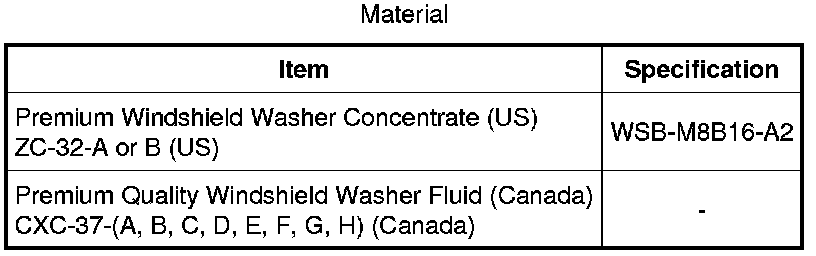

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the RH front fender splash shield.

3. Disconnect the washer pump electrical connector.

4. WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: To prevent damage to the connector, do not use hand tools to remove/install the washer pump hose.

NOTE: To prevent spilling windshield washer fluid, drain the windshield washer reservoir before removal.

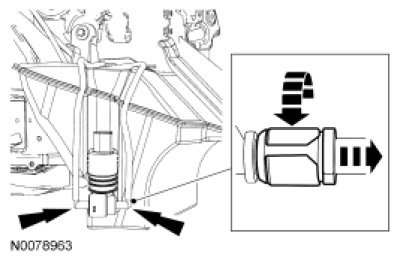

Disconnect the washer pump hoses.
- Gently twist the lock ring until the ring has rotated approximately 90 degrees.

- The hose should slide easily out of the connection.

- To install, make sure the hoses are fully seated and locked into place.





5. NOTICE: Do not leave the lock ring in the disassembled position. This will weaken the ring and may prevent it from correctly locking in place when reassembled, resulting in a leak.

Rotate the lock ring back to the original location.

6. Remove the 2 windshield washer reservoir bolts and the windshield washer reservoir.
- To install, tighten to 6 Nm (53 lb-in).

7. NOTICE: Do not operate the washer pump prior to filling the windshield washer reservoir. Failure to follow these instructions may result in premature pump failure.

To install, reverse the removal procedure.

- Fill the windshield washer reservoir with windshield washer fluid.
