Wiper Motor - Rear Window

Wiper Motor - Rear Window

Removal and Installation

1. Remove the rear pivot arm. For additional information, refer to Wiper Pivot Arm - Rear Wiper Pivot Arm - Rear.

2. Remove the rear wiper motor shaft nut cover.

3. Remove the rear wiper motor shaft nut.
- To install, manually finger-tighten the nut, then tighten to 6 Nm (53 lb-in).

4. Open the liftgate window.

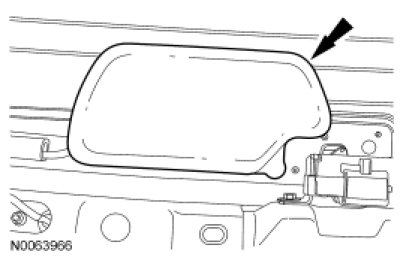

5. Remove the rear wiper motor cover trim panel.

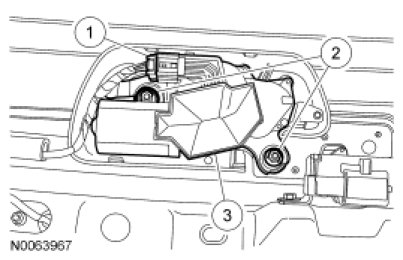

6. Remove the rear wiper motor.

1. Disconnect the electrical connector.

2. Remove the 2 rear window wiper motor nuts.
- To install, tighten to 7 Nm (62 lb-in).

3. Remove the rear window wiper motor.





7. To install, reverse the removal procedure.
