Mercury
>>
2009
>>
Mariner 4WD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Wheel Speed Sensor
>>
Diagrams
>>

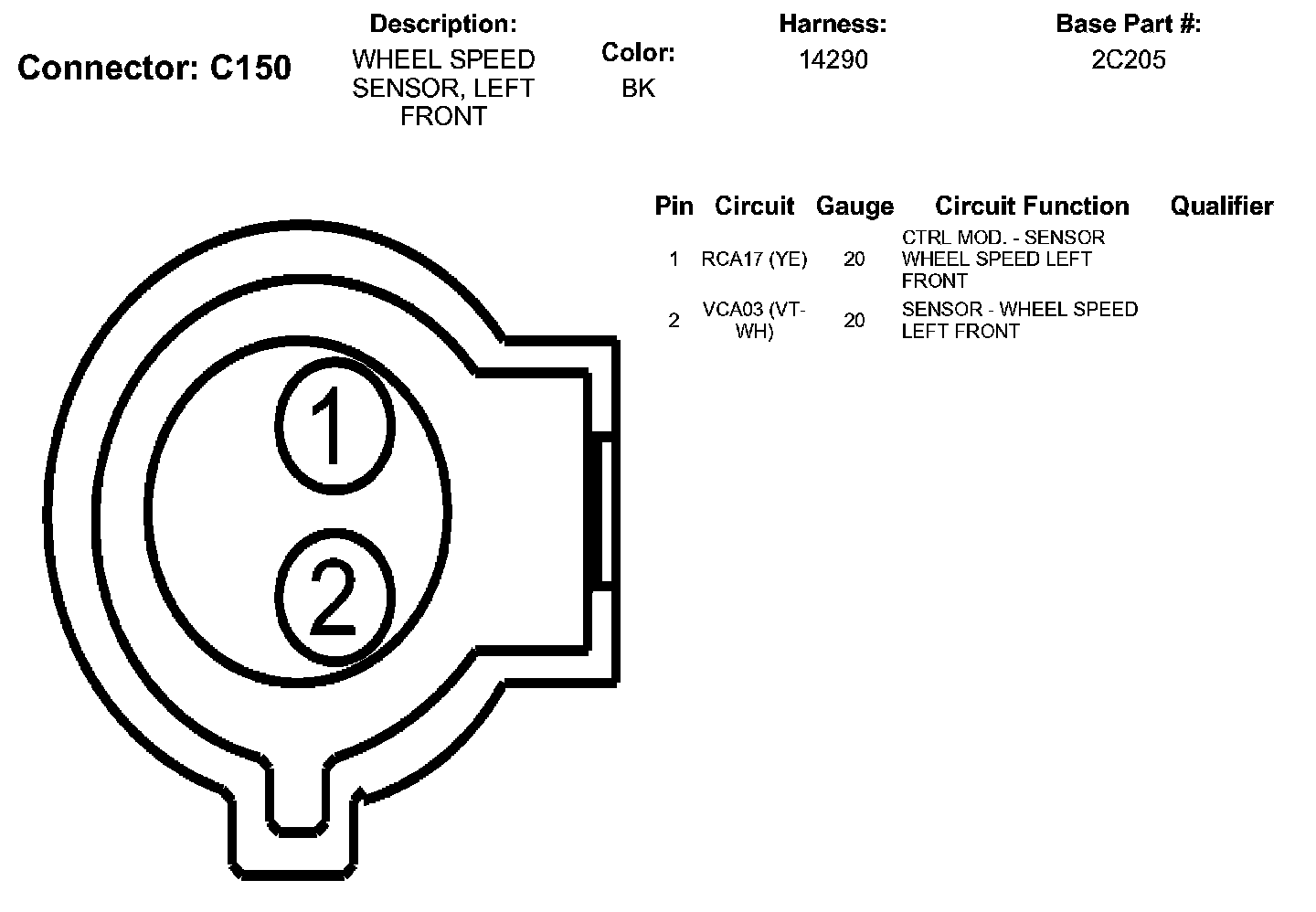

Wheel Speed Sensor, Left Front
Wheel Speed Sensor, Left Front
