Battery Zone Installation

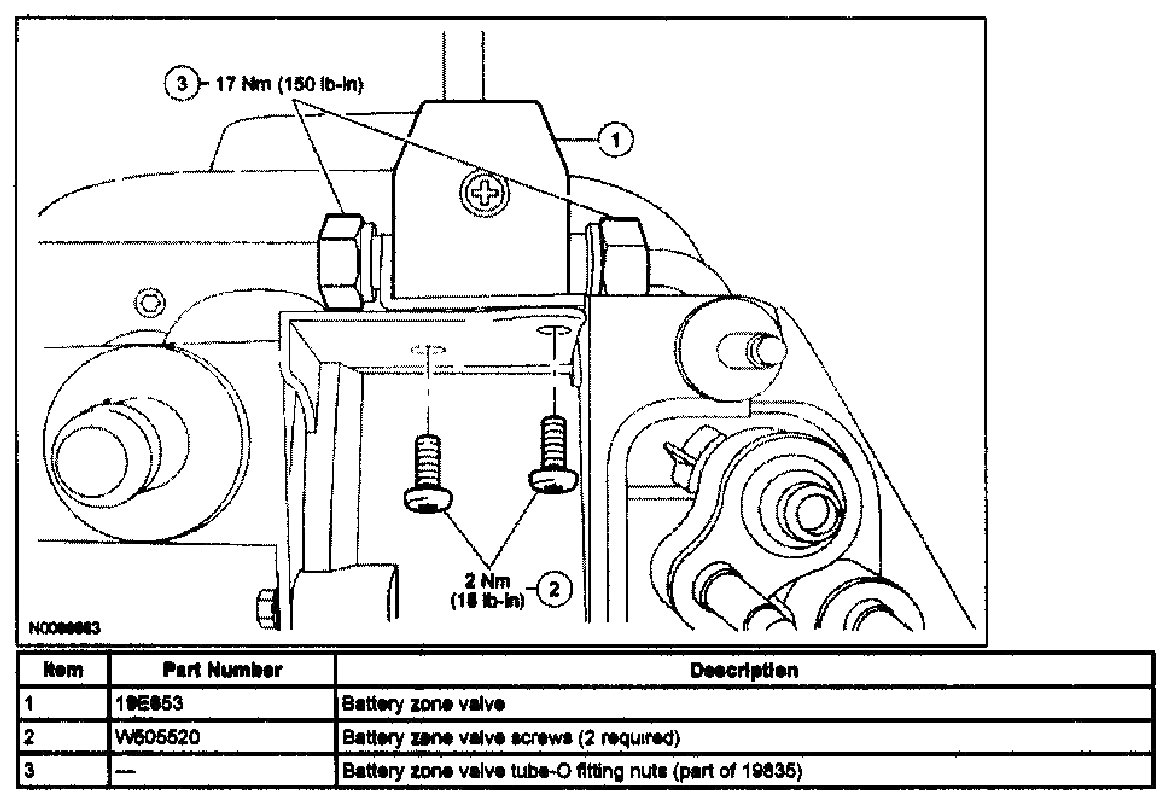

Battery Zone Valve






Removal and Installation

NOTE: The battery zone valve is not interchangeable with the passenger zone valve.

1. Remove the auxiliary climate Control housing Auxiliary Climate Control Housing-Hybrid
2. Remove the 2 battery zone valve screws
^ To install tighten to 2 Nm (18 lb-in)
3. Loosen the nuts and disconnect the battery zone valve tube-O fittings.
^ Discard the O-ring seals
^ To install, tighten to 17 Nm (150 lb-in)
4. Disconnect the electrical connector and remove the battery zone valve
5. To install, reverse the removal procedure
^ Install new O-ring seals.
