Starter Motor: Service and Repair

Starter Motor - 2.5L

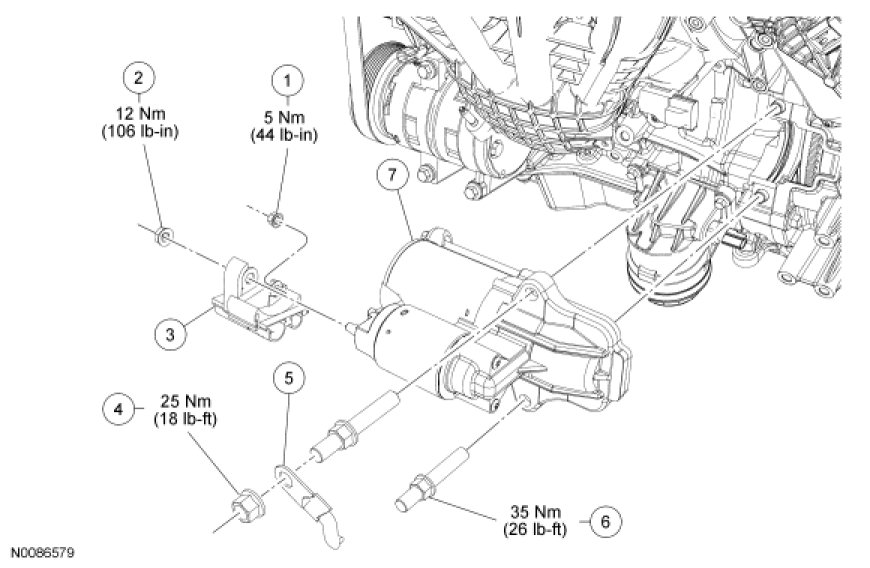

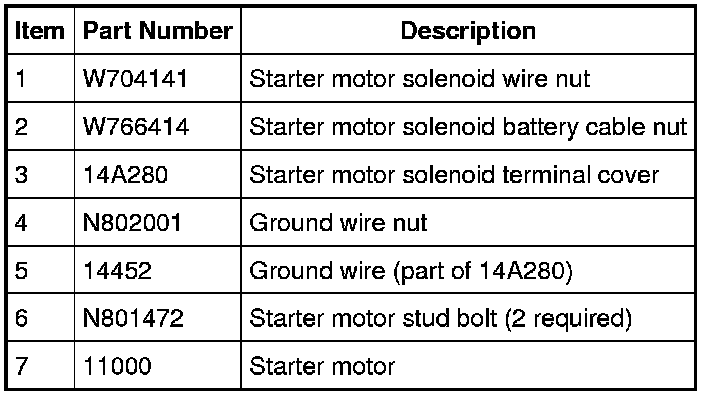

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the battery ground cable.

3. Remove the 5 bolts, the pin-type retainer (not shown) and the RH splash shield.
- To install, tighten to 9 Nm (80 lb-in).





4. Remove the starter solenoid wire nut.
- To install, tighten to 5 Nm (44 lb-in).

5. Remove the starter solenoid battery cable nut and disconnect the starter motor solenoid terminal cover and cables.
- To install, tighten to 12 Nm (106 lb-in).

6. Remove the ground wire nut and position aside the ground wire.
- To install, tighten to 25 Nm (18 lb-ft).

7. Remove the 2 stud bolts and the starter motor.
- To install, tighten to 35 Nm (26 lb-ft).

8. To install, reverse the removal procedure.
