Seat Control Switch - Third Row




Seat Control Switch - Third Row

Removal and Installation

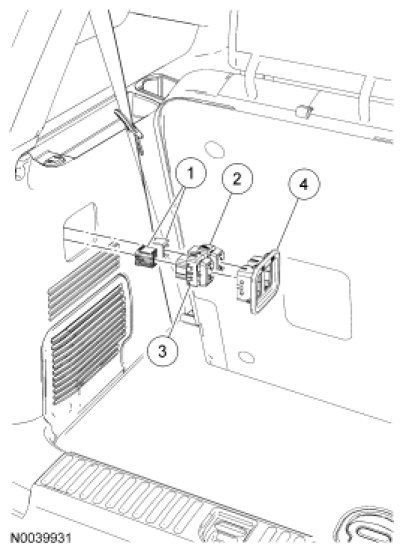

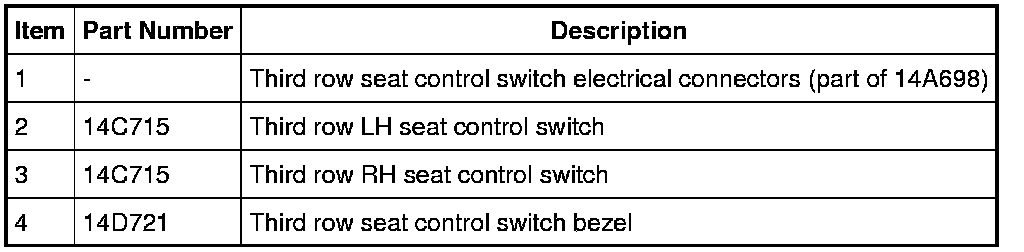

NOTE: The third row seat control switches are located in the LH quarter trim panel.










1. Pull out on the third row seat control switch bezel and separate from the LH quarter trim panel.

2. Disconnect the third row seat control switch(es), release the retainers and remove the third row seat control switch(es).

3. To install, reverse the removal procedure.
