Plenum Chamber

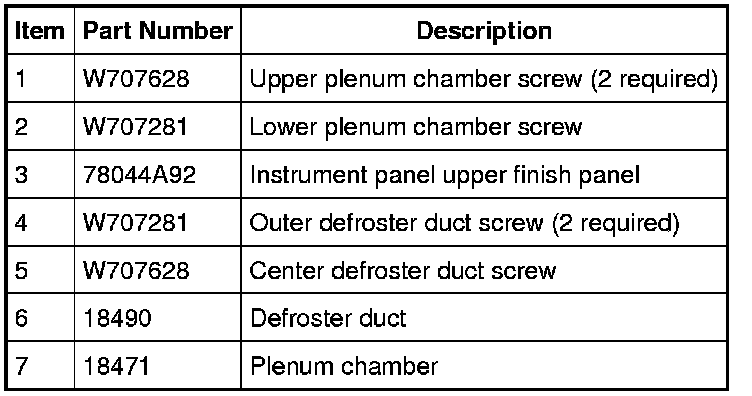

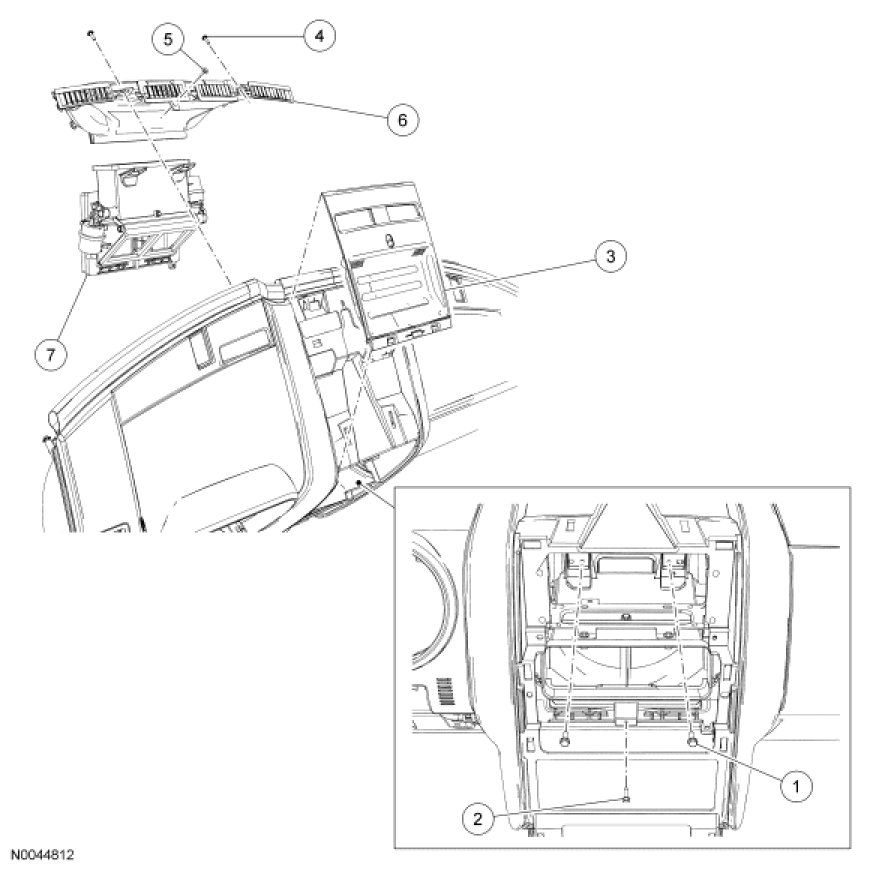

Plenum ChamberRemoval and Installation 1.
Remove the instrument panel.
Service and Repair 2.
Remove the Audio Control Module (ACM).
3.
Remove the 3 plenum chamber screws.
4.
Remove the instrument panel upper finish panel.
5.
Remove the 3 defroster duct screws.
6.
Remove the defroster duct.
7.
Remove the plenum chamber.
8.
To install, reverse the removal procedure.
