Parking Assist Control Module: Service and Repair

Parking Aid Module (PAM) - Mountaineer

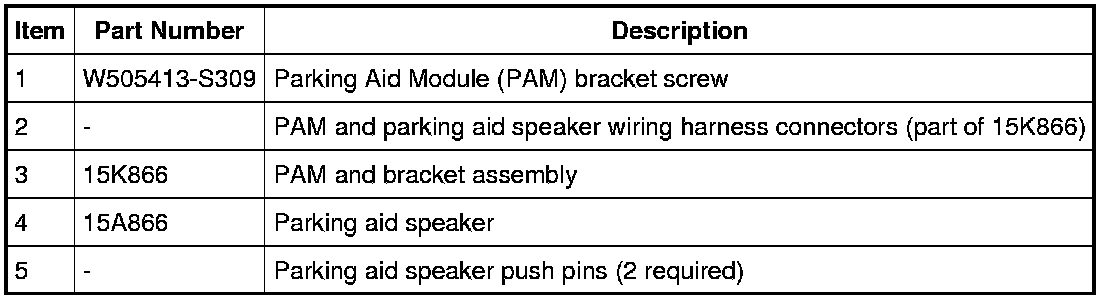

Removal and Installation

1. Remove the RH quarter trim panel.

2. If replacing the parking aid speaker only, proceed as follows:
- Disconnect the parking aid speaker electrical connector.

- Remove the parking aid speaker push pins.

- Remove the parking aid speaker.

3. If replacing the Parking Aid Module (PAM), proceed as follows:
- Disconnect the electrical connectors.

- Remove the PAM screw.

- Remove the PAM.

4. To install, reverse the removal procedure.
