5R55S

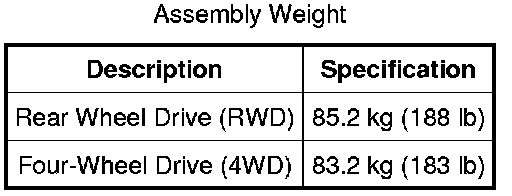

Assembly Weight:

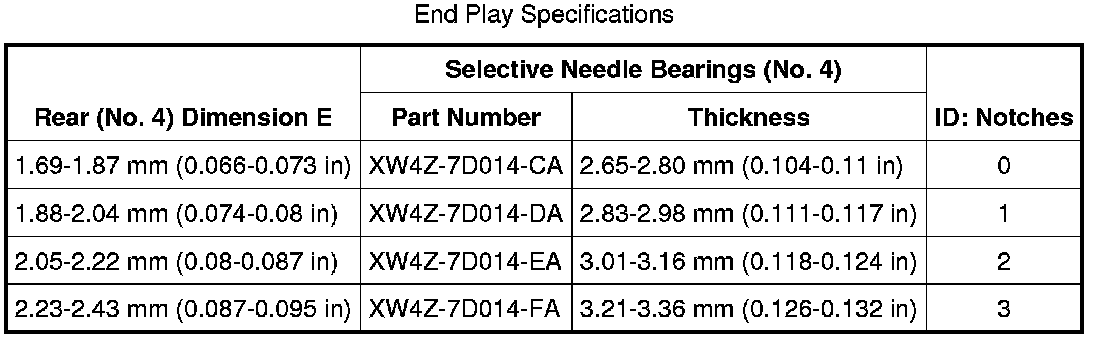

End Play Specifications:

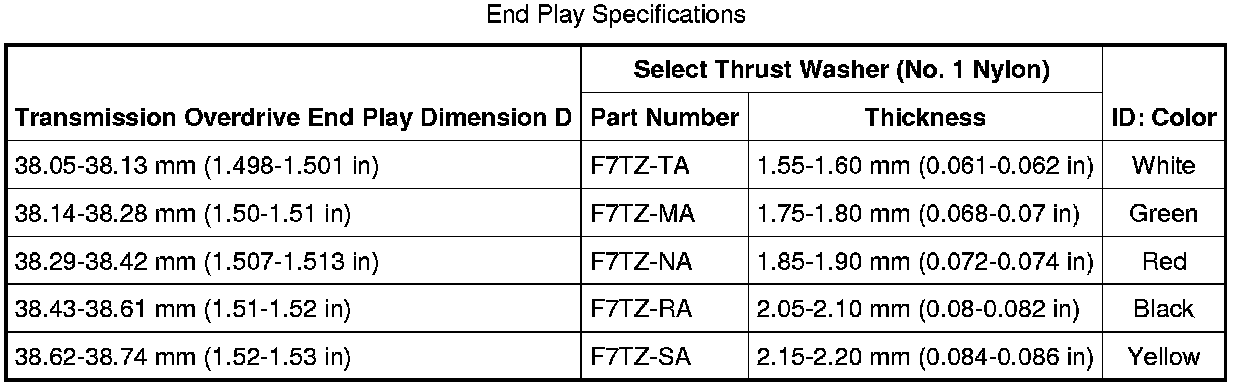

End Play Specifications:

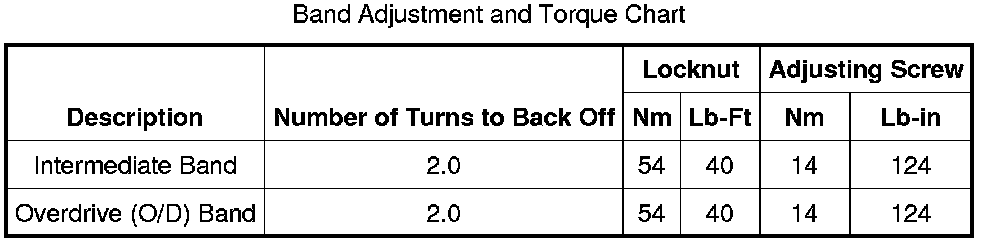

Band Adjustment and Torque Chart:

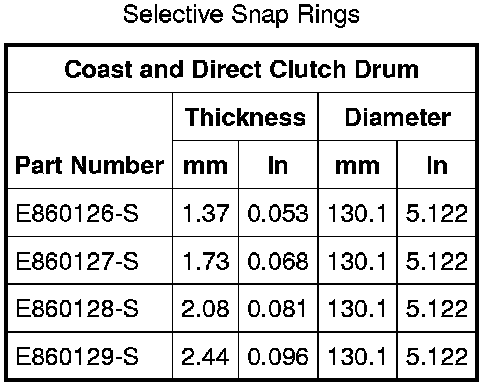

Selective Snap Rings:

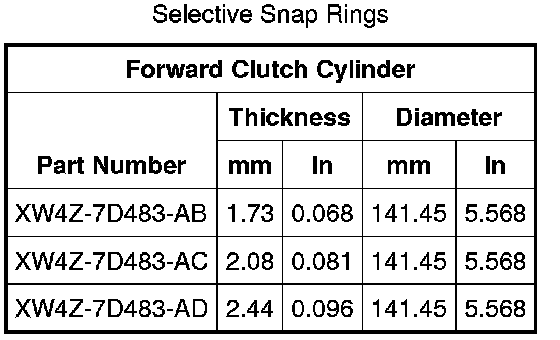

Selective Snap Rings:

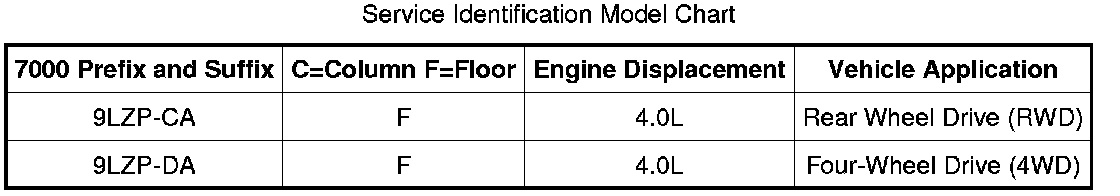

Service Identification Model Chart:

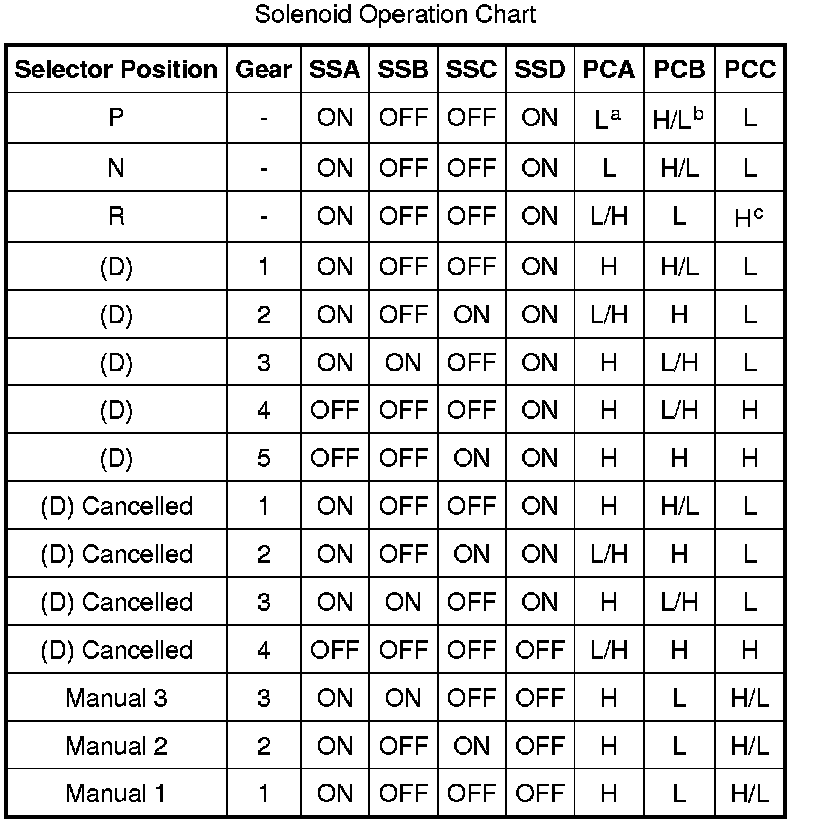

Solenoid Operation Chart:
a Low
b PCM Controlled
c High

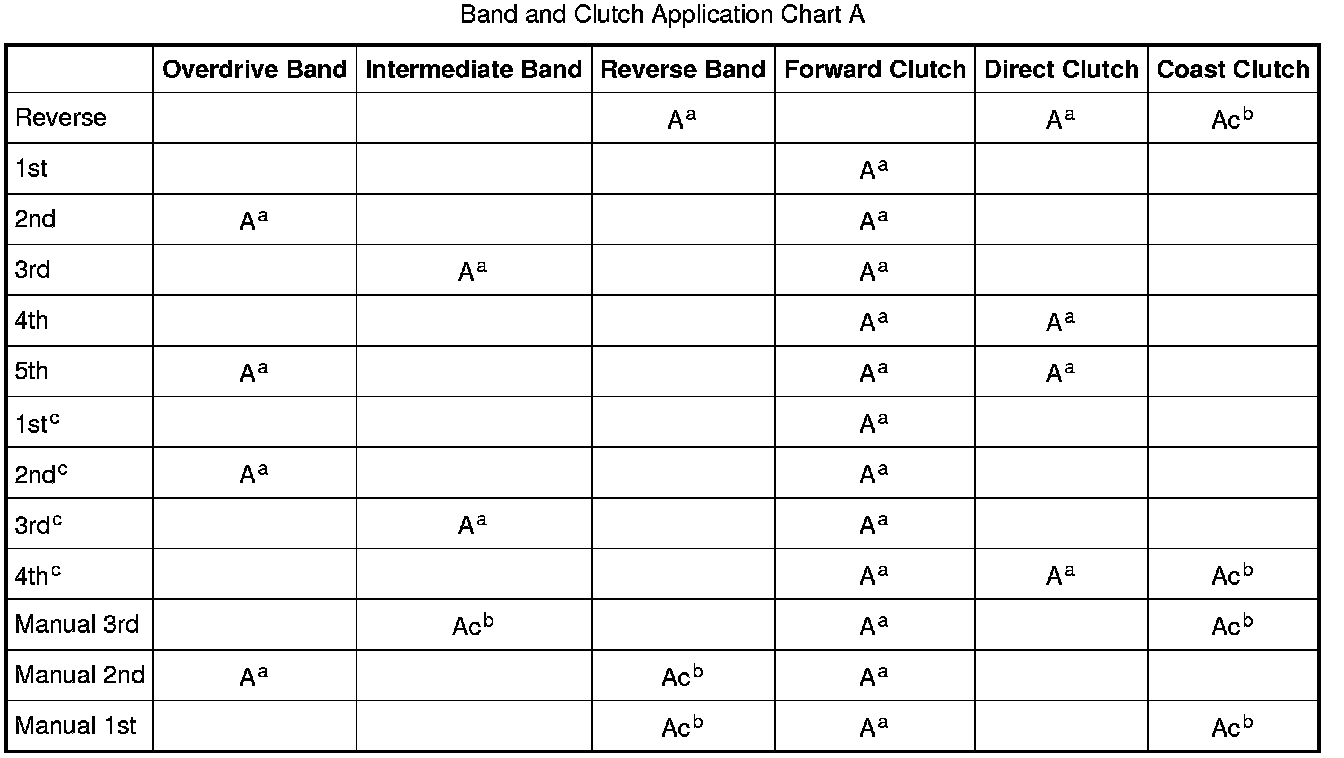

Band and Clutch Application Chart A:
a A = Applied
b Ac = Applied to carry coast torque
c (D) Position (overdrive cancelled)
Band and Clutch Application Chart B:
a H = Hold
b OR = Overrunning
c NE = No Effect
d (D) Position (overdrive cancelled)

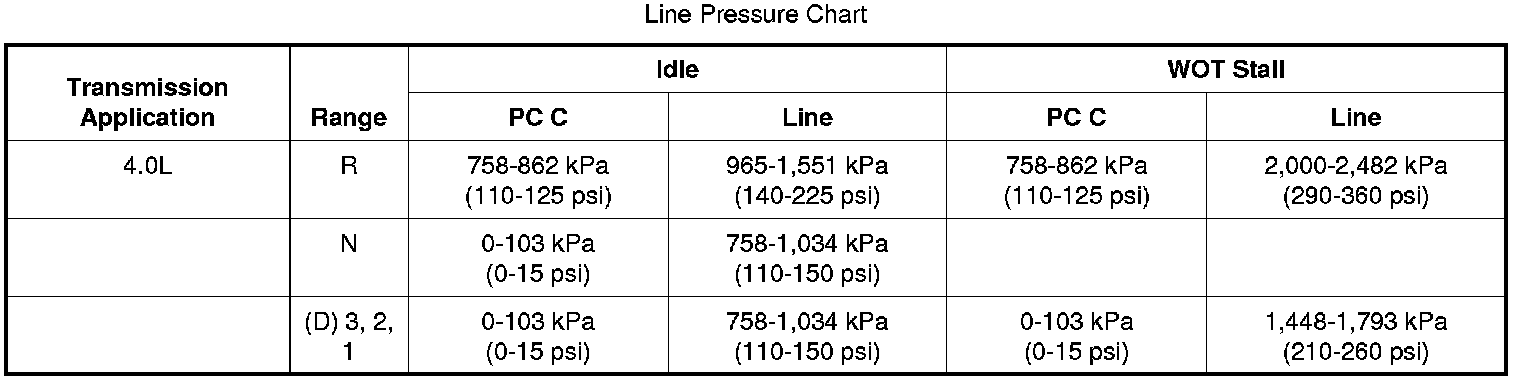

Line Pressure Chart:
Stall Speed Chart:
Shift Speeds:
