Camshaft Bearing

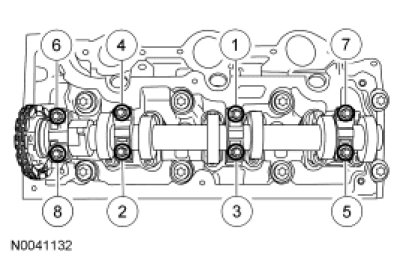

Position the camshaft bearing caps and the 8 bolts for each set of camshaft bearing caps.Tighten the bolts in the sequence shown in 2 stages.
Stage 1: Tighten to 6 Nm (53 lb-in).
Stage 2: Tighten to 16 Nm (142 lb-in).
Tighten the bolts in the sequence shown in 2 stages.
Stage 1: Tighten to 6 Nm (53 lb-in).
Stage 2: Tighten to 16 Nm (142 lb-in).
