Cylinder Head

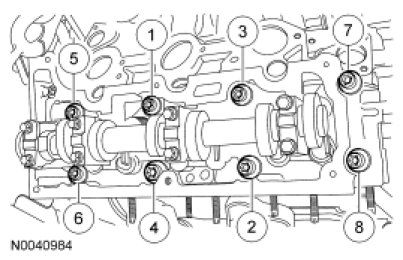

Install the RH cylinder head. Install 8 new 12-mm bolts and tighten in the sequence shown in 2 stages.
Stage 1: Tighten to
12 Nm (106 lb-in).
Stage 2: Tighten to
25 Nm (18 lb-ft).
Install the LH cylinder head and tighten the 8 new 12-mm bolts in the sequence shown in 2 stages.
Stage 1: Tighten to
12 Nm (106 lb-in).
Stage 2: Tighten to
25 Nm (18 lb-ft).
