Overhaul

Seat Armrest - Rear

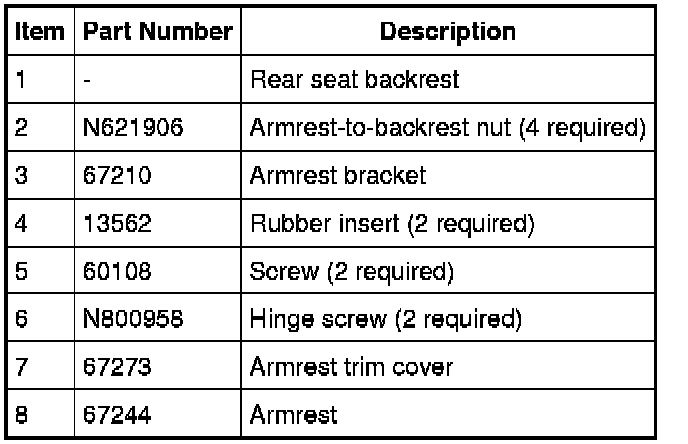

NOTE: Rear of backrest shown.











Disassembly and Assembly

1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Vehicle Jacking and Lifting. Failure to follow the instructions may result in serious personal injury.

For police vehicles equipped with a fire suppression system, depower the system.

2. Remove the armrest. For additional information, refer to Seat Armrest - Rear Removal and Replacement.

3. Remove the rubber inserts from the armrest cup holder.

4. Remove the 2 screws from the armrest cup holder.

5. Remove the 2 pivot screws from the armrest.

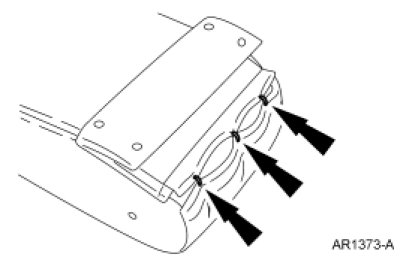

6. Remove the hog rings.





7. Remove the armrest trim cover.

8. To assemble, reverse the disassembly procedure.

9. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Vehicle Jacking and Lifting. Failure to follow these instructions may result in serious personal injury.

For police vehicles equipped with a fire suppression system, repower the system.
