Auxiliary Climate Control Assembly

Auxiliary Climate Control Assembly

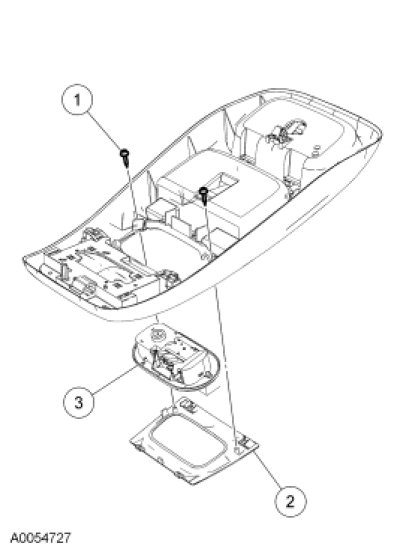

Removal and Installation

1. Remove the overhead console. For additional information, refer to Console - Overhead

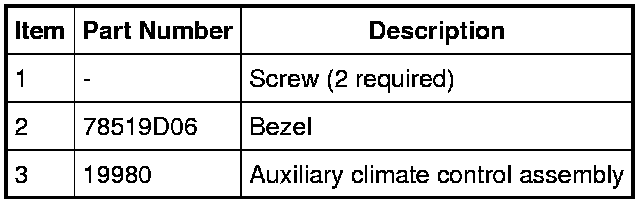

2. Remove the 2 screws.

3. Remove the bezel.

4. Remove the auxiliary climate control assembly.

5. To install, reverse the removal procedure.
