Keyless Entry Key-Pad: Service and Repair

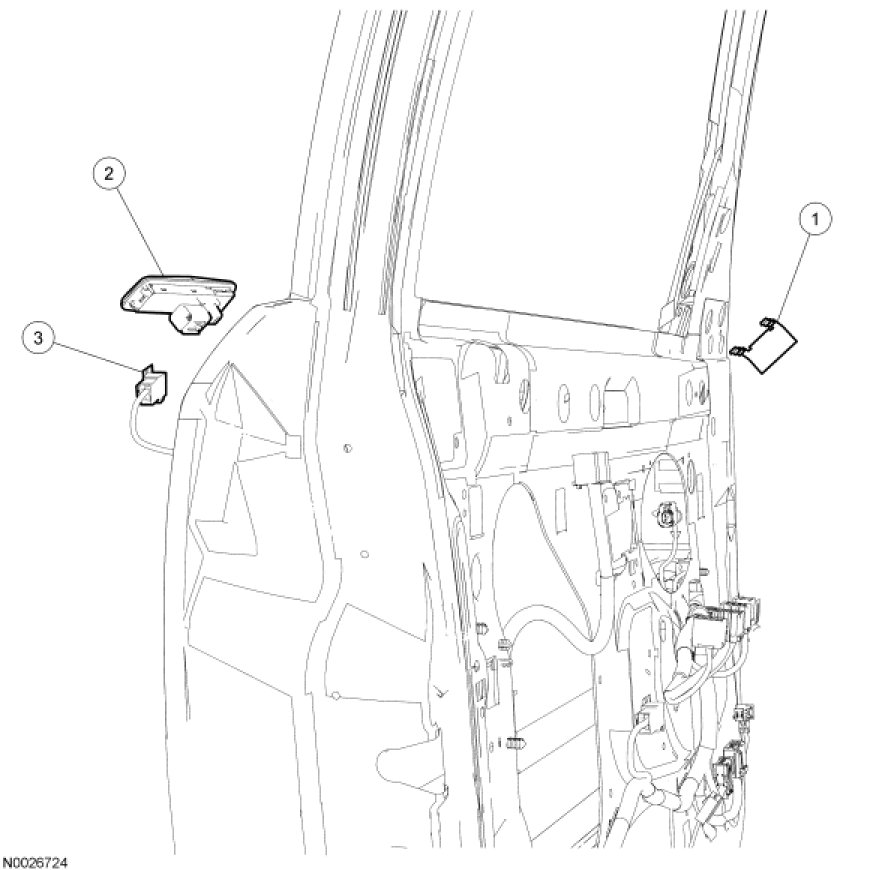

Keyless Entry KeypadRemoval and Installation 1.
Remove the LH front door trim panel. For additional information, refer to Interior Trim and Ornamentation
Door Trim Panel - Front.
2.
Position the watershield aside.
3.

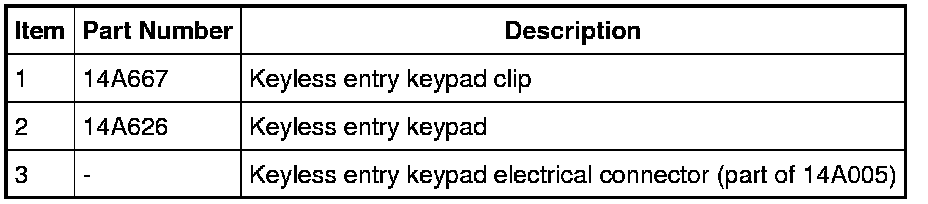

Remove the clip and the
keyless entry keypad.
-
Disconnect the electrical connector.
4.
To install, reverse the removal procedure.
