Inspection and Verification




Module Configuration

Inspection and Verification

This provides step-by-step module configuration procedures. Carry out the Programmable Module Installation (PMI) Programming and Relearning procedure when another procedure directs to carry out configuration or when DTCs from the below list are present.

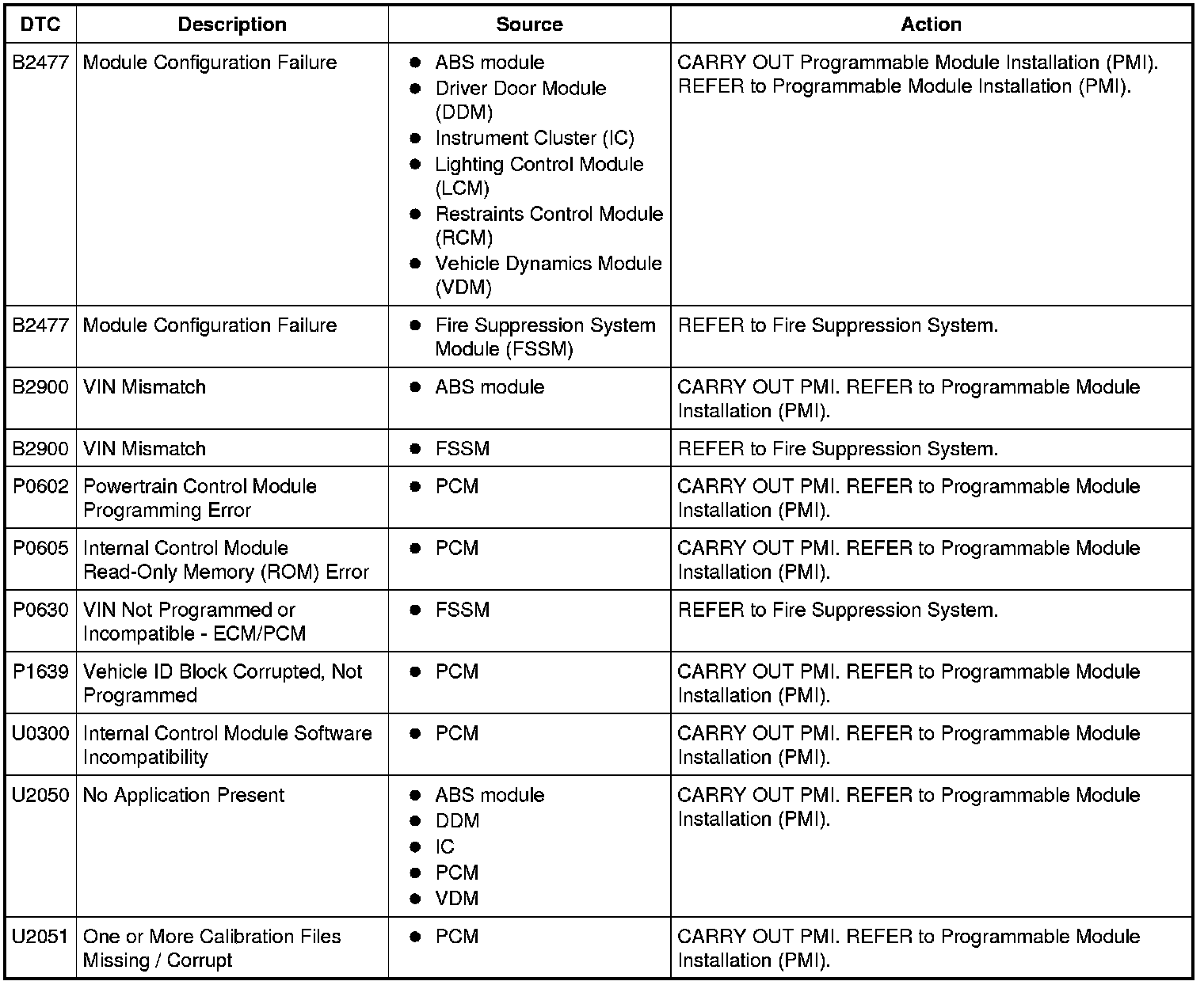

DTC Chart
