Storage Compartment - Upper




Storage Compartment - Upper

Removal and Installation

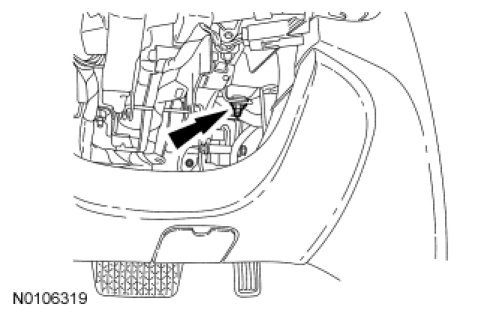

1. NOTE: Steering column shroud removed to show clarity.

Remove the upper storage compartment tether nut.

- To install, tighten to 6 Nm (53 lb-in).





2. Remove the upper storage compartment mat and the 2 upper storage compartment screws.

3. Remove the upper storage compartment in the following sequence.

1. Pull the upper storage compartment toward the rear of the vehicle to release the 5 retaining clips.

2. Disconnect the electrical connector, if equipped.

4. To install, reverse the removal procedure.
