Crimping Micro Power Quadlock Contacts (MPQ)

Crimping Micro Power Quadlock Contacts (MPQ)

Special tools required:
- 61 4 320

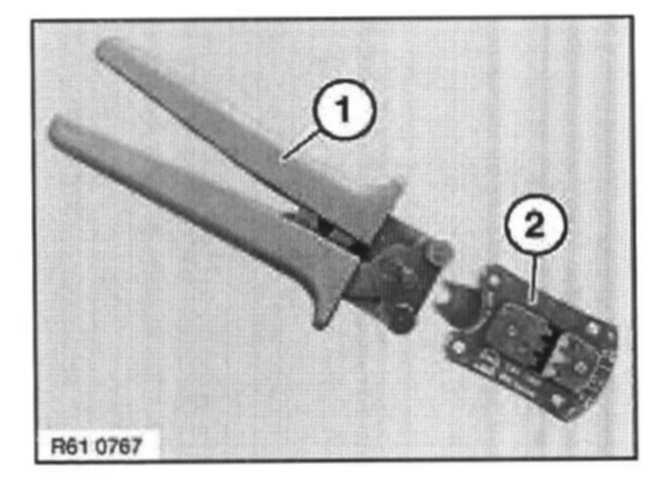

To crimp MPQ contacts, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 325 (2) from crimping set 61 4 320.


NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.







Open pliers (1).


NOTE: Place contact (2) with utmost care in designated nest (observe cable cross-section) in crimping head (3). Make sure it is exactly positioned.


Place MPQ contact (2) in crimping head (3).
Close pliers (1) one notch.







NOTE: Follow procedure for cutting and stripping insulation from cables.


Insert stripped cable (2).
Close pliers (1) fully.
Open pliers (1) and remove cable (2).


NOTE:
Check contact for correct crimping.
