Removing Windscreen With "Roll Out 2000"

51 31... Removing Windscreen With "Roll Out 2000"

Special tools required:
- 51 3 270

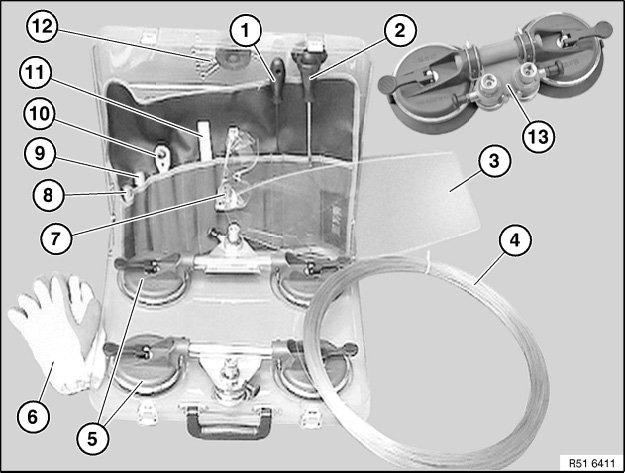

Windscreen removal system "Roll Out 2000"







1. Wire starter
2. Parabolic tool
3. Plastic washer
4. Wire cutting roller
5. Windlasses
6. Protective gloves
7. Protective goggles
8. Extension (short)
9. Extension (long)
10. Reversible ratchet
11. Plastic wedge
12. Guide needles
13. Windlass with double coil

Note: Using the "Roll Out 2000" system (sourcing reference: BMW Workshop Equipment and Planning Documentation) minimizes paintwork and ergonomic damage as well as damage that is hazardous to health.

Warning: Follow safety instructions for working on cars with airbag systems (risk of injury).

Important: Take care when handling sharp-edged tools and cutting wire (risk of damage to head airbag).

Important:
- Always keep both suckers dry and clean to ensure their optimum adhesion on the windscreen.
- Lubricate coil if interlock rattling becomes too loud.
- Always wear protective goggles and gloves for your own safety.







Preparatory work:

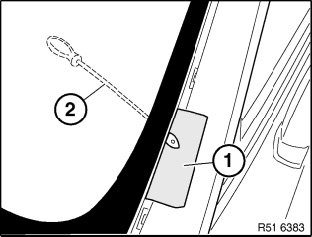

- To avoid paintwork damage, tape off working a large area at outlet of wire starter (2) with fabric adhesive tape(1)
- Cut off required length (A) from cutting wire
(A) = Window diagonal x 4
- Check whether wire can get caught on rivets or retainers; if necessary, insert guide needles in bonding joint cutting wire past







Pulling cutting wire into car:
- Push wire starter (2) from inside at a suitable point through adhesive bead

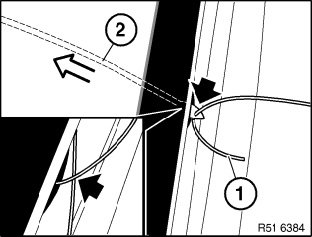

- Feed wire end (1) into hole of wire starter (2) and bend back
- Pull in both wires in succession crossways

Note: Crossing the wires cuts through the adhesive bead completely.







Laying cutting wire around windscreen:
- Starting from pull-in point, lay wire eyelet created on the outside counterclockwise around the windscreen
- Pull excess wire into car interior

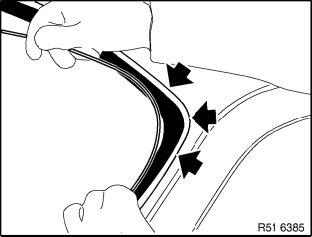

Important:
- Make sure the cutting wire is located at all four corner points below the windscreen.
- Check that the cutting wire is not caught on retainers or body.
- Secure window on outside with adhesive tape slipping

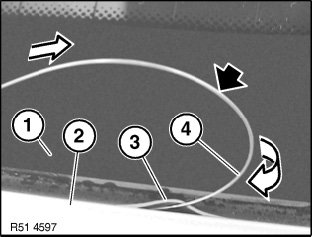

Note: Windows (1) with fitted seals (3) or sprayed-on surrounds:

- Moisten cutting wire (4) and seals (3) on window (1) with water
- Insert cutting wire (4) in bend (without kinking) between window (1) and body cutout (2)







Protecting car interior:

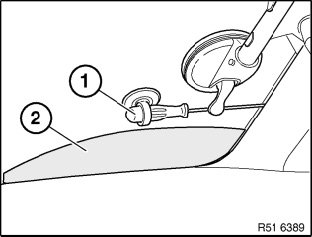

- To avoid damage and if necessary dirt, protect A-pillars, roof and instrument panel by means of parabolic tool (1) or plastic washer (2)
- Move parabolic tool (1) during removal so that wire cannot get caught
- Always guide plastic washer (2) between wire and panel







Starting removal:

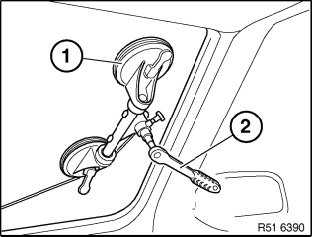

- Place windlass (1) on windscreen
- Feed wire end into coil of windlass (1)

Note: Coil can only be turned in one direction.

- Make sure the wire is always situated in the guide channel of the windlass (1)
- Fit reversible ratchet (2) on coil and tension wire
- Start by cutting lower adhesive bead
- Grip second wire end in special tool 51 3 270

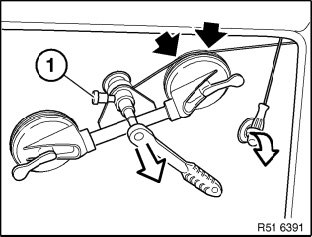

Moving windlass:
- Before moving windlass, remove reversible ratchet, extension and parabolic tool
- Release sucker on windlass
- Pull and hold black locking button (1)
- Turn windlass and move with sucker
- Refit reversible ratchet, parabolic tool and if necessary extension
- When cutting the corner points, make sure the situated in the guide channel of the windlass; this makes the cutting job easier

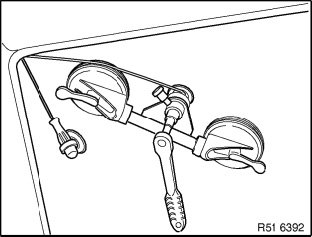

Installing second windlass:
- Secure second windlass by suction on windscreen
- Feed second wire end into coil
- Cut left side and top left corner point, as described above
- Finish removal
- Remove "Roll Out 2000"

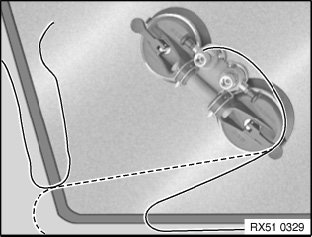

Windlass with double coil:
For use with small windows.
- Attach windlass firmly to window so that both coils are turned away from application point of wire
- Feed either the upper wire end into the lower coil or the lower wire end into the upper coil
- Fit reversible ratchet on coil and tension wire
- Cut through approx. 10 cm of bonding joint

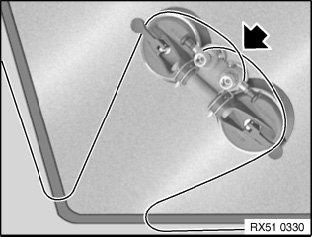

- Feed other wire end into free coil so that the wires cross
- Continue cutting bonding joint by alternately using the coils
- Both wires meet ahead of both coils when removal is completed
- Remove "Roll Out 2000"
