Universal MINI Transmission Bracket

23 ... - Universal MINI transmission bracket





Special tools required:
- 00 2 030 00 2 030 Universal Hydro-Lifter Basic Unit
- 23 4 150 23 4 150 Universal Transmission Bracket





Note:
- Suitable for manual and automatic transmissions





Important!
Supports (1) can be laterally adjusted by means of screws (2).
Carrier (3) of rear supports (1) can be longitudinally adjusted by means of screw.
Supports must be adapted in length and width to the transmission.





Supporting transmission:

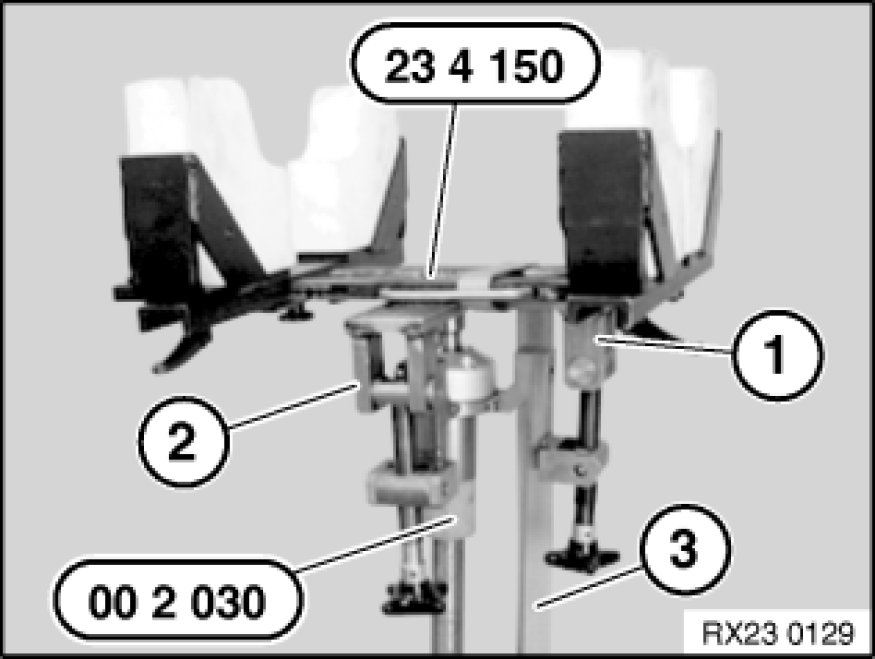

Support transmission with special tools 23 4 150 23 4 150 Universal Transmission Bracket, 00 2 030 00 2 030 Universal Hydro-Lifter Basic Unit.
Joint (1) for height adjustment.
Joint (2) for inclination angle adjustment.

Important!
Transmission must be secured with tensioning strap (3).
